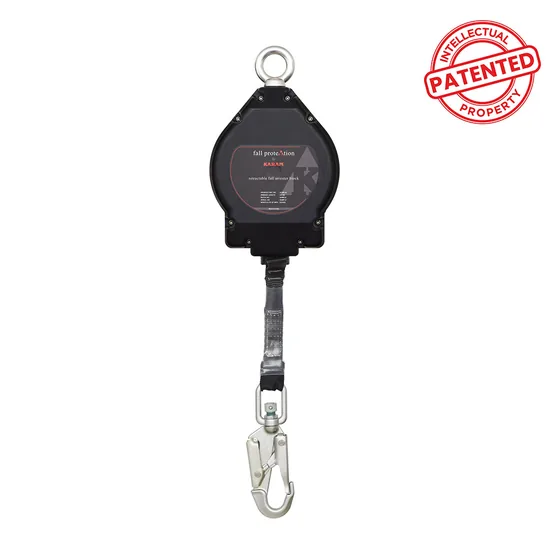

Supplier for KaramA wire rope block for longer working ranges, with 4.5 mm galvanized steel wire rope in a powder coated aluminium casing, from 4 m up to 20 m. The snap hook carries a load indicator that shows if the block has arrested a fall.
Standards and approvals: EN 360:2023, ATEX 2014/34/EU, CE, ATEX
Sizes: 4.0m to 20.0m
| Specification | 4.0m | 5.0m | 6.0m | 7.5m | 10.0m | 12.0m | 15.0m | 18.0m | 20.0m |
|---|---|---|---|---|---|---|---|---|---|
| Casing Type | Aluminium casing | Aluminium casing | Aluminium casing | Aluminium casing | Aluminium casing | Aluminium casing | Aluminium casing | Aluminium casing | Aluminium casing |
| Rope Type and Dia | Galvanized steel wire rope Ø 4.5mm | Galvanized steel wire rope Ø 4.5mm | Galvanized steel wire rope Ø 4.5mm | Galvanized steel wire rope Ø 4.5mm | Galvanized steel wire rope Ø 4.5mm | Galvanized steel wire rope Ø 4.5mm | Galvanized steel wire rope Ø 4.5mm | Galvanized steel wire rope Ø 4.5mm | Galvanized steel wire rope Ø 4.5mm |
| Minimum Breaking Strength | 15kN | 15kN | 15kN | 15kN | 15kN | 15kN | 15kN | 15kN | 15kN |
| Attached Hook | Swivel hook PN162 | Swivel hook PN162 | Swivel hook PN162 | Swivel hook PN162 | Swivel hook PN162 | Swivel hook PN162 | Swivel hook PN162 | Swivel hook PN162 | Swivel hook PN162 |
| Wire Rope Length | 4.0m | 5.0m | 6.0m | 7.5m | 10.0m | 12.0m | 15.0m | 18.0m | 20.0m |
| Weight | 4.45kg | 4.63kg | 4.78kg | 5.05kg | 5.46kg | 6.82kg | 7.06kg | 7.30kg | 7.46kg |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
A self retracting backup device that stops a suspended load, such as machinery or stage equipment, from dropping if the main lifting system fails. Rated for loads up to 200 kg and offered with 2 m, 3 m or 10 m of cable.
Backup fall arrest for suspended loads up to 300 kg, from machinery to stage equipment. It has the widest choice of cable length among the polymer cased load arresters: 2 m, 3 m, 5 m, 10 m or 15 m.
For heavier suspended loads such as lighting rigs, stage gear and industrial machinery, this arrester halts an accidental drop of up to 400 kg. Cable lengths are 10 m, 15 m and 20 m.
A secondary safety device for heavy suspended loads and structures, rated for a maximum of 500 kg, with 10 m or 15 m of cable.
The highest rated load arrester in this Karam range, with a high strength alloy steel casing and stainless steel wire rope, for suspended loads up to 1000 kg in industrial, scenic and stage settings. Cable lengths are 10 m, 11 m and 16 m.
Sizes: 2.0m, 3.50m, 6.0m, 10.0m
A polymer cased webbing block with a steel snap hook, certified by Karam to both EN 360:2023 and the Indian standard IS 3521(Part 3):2021. Offered in 2 m, 3.5 m, 6 m and 10 m lengths.
A self retractable fall arrester with a 4 mm galvanised steel cable and an integrated energy absorber in an ABS case, made in 6, 10 and 15 m lengths and tested at 150 kg so tools carried by the user are covered.
A compact self retractable fall arrester with a 46 mm strap and energy absorber, 2.50 m long, in a protective case with one AM002 carabiner. It is the retractable supplied in the ELARA140 kit.
