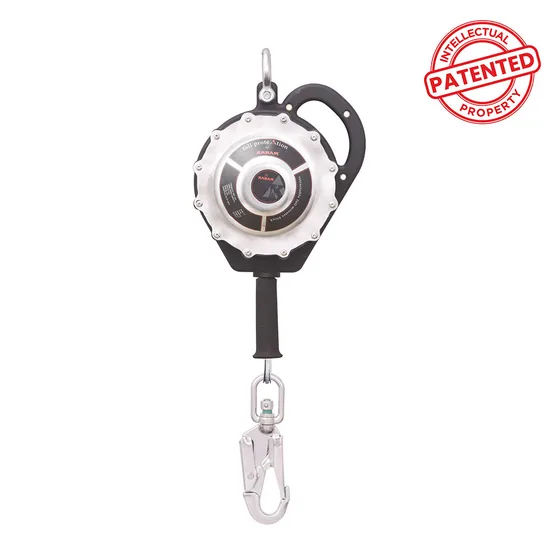

Supplier for KaramA fully sealed stainless steel block with stainless steel wire rope for offshore platforms, chemical plants and wet sites, where dust, water and chemicals would harm an open mechanism. Rated load 140 kg, in 10 m, 15 m, 20 m and 30 m lengths.
Standards and approvals: EN 360:2023, ISO 2065:2013, ATEX 2014/34/EU, CE, ATEX
Sizes: 10.0m, 15.0m, 20.0m, 30.0m
| Specification | 10.0m | 15.0m | 20.0m | 30.0m |
|---|---|---|---|---|
| Casing Type | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Rated Load | 140Kg | 140Kg | 140Kg | 140Kg |
| Wire Rope Make | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Rope Dia | 4.8mm | 4.8mm | 4.8mm | 4.8mm |
| Attachment End | Stainless steel snap hook PN162SS | Stainless steel snap hook PN162SS | Stainless steel snap hook PN162SS | Stainless steel snap hook PN162SS |
| Wire Rope Length | 10.0m | 15.0m | 20.0m | 30.0m |
| Weight | 7.36Kg | 11.43Kg | 11.6Kg | 17.00Kg |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
A self retracting backup device that stops a suspended load, such as machinery or stage equipment, from dropping if the main lifting system fails. Rated for loads up to 200 kg and offered with 2 m, 3 m or 10 m of cable.
Backup fall arrest for suspended loads up to 300 kg, from machinery to stage equipment. It has the widest choice of cable length among the polymer cased load arresters: 2 m, 3 m, 5 m, 10 m or 15 m.
For heavier suspended loads such as lighting rigs, stage gear and industrial machinery, this arrester halts an accidental drop of up to 400 kg. Cable lengths are 10 m, 15 m and 20 m.
A secondary safety device for heavy suspended loads and structures, rated for a maximum of 500 kg, with 10 m or 15 m of cable.
The highest rated load arrester in this Karam range, with a high strength alloy steel casing and stainless steel wire rope, for suspended loads up to 1000 kg in industrial, scenic and stage settings. Cable lengths are 10 m, 11 m and 16 m.
Sizes: 2.0m, 3.50m, 6.0m, 10.0m
A polymer cased webbing block with a steel snap hook, certified by Karam to both EN 360:2023 and the Indian standard IS 3521(Part 3):2021. Offered in 2 m, 3.5 m, 6 m and 10 m lengths.
A self retractable fall arrester with a 4 mm galvanised steel cable and an integrated energy absorber in an ABS case, made in 6, 10 and 15 m lengths and tested at 150 kg so tools carried by the user are covered.
A compact self retractable fall arrester with a 46 mm strap and energy absorber, 2.50 m long, in a protective case with one AM002 carabiner. It is the retractable supplied in the ELARA140 kit.
