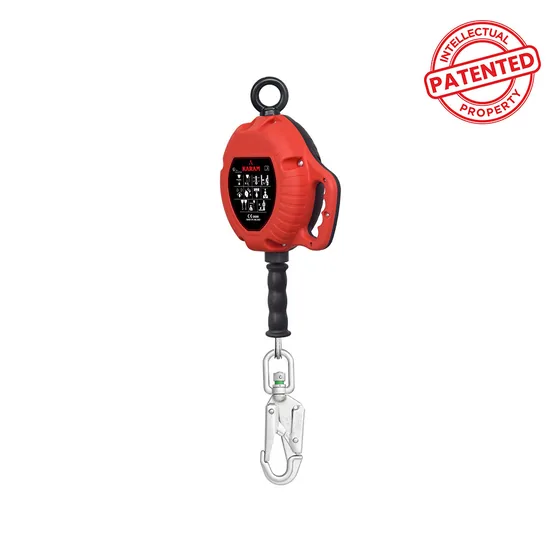

Karam Retractable Fall Arrester Block, Galvanized Steel Wire Rope, Plastic Casing
Karam logoSupplier for Karam

Karam Retractable Fall Arrester Block, Galvanized Steel Wire Rope, Plastic Casing

Galvanized wire ropePlastic casing7 m to 30 mATEX 2014/34/EU

A wire rope block in a durable plastic casing for long vertical ranges, with 4.5 mm galvanized steel wire rope in 7 m, 10 m, 20 m and 30 m lengths.

  • Galvanized steel wire rope, 4.5 mm diameter
  • Plastic casing that shields the mechanism from dust and damage
  • Swivel steel snap hook with load indicator
  • Swivel anchorage eye
  • Weight 3.08 kg (7 m) to 13.28 kg (30 m); 15 kN minimum breaking strength stated for the 30 m block
  • Conforms to EN 360:2023 and ATEX 2014/34/EU

Standards and approvals: EN 360:2023, ATEX 2014/34/EU, CE, ATEX

Sizes: 07 Meters, 10m, 20m, 30 m

Ask price & availability

Download the official Karam catalogue (PDF, 63.0 MB)

Specifications

Specifications
Specification07 Meters10m20m30 m
Casing TypePlastic casingPlastic casingPlastic casingPlastic casing
Rope Type and DiaGalvanized steel wire rope Ø4.5mm.Galvanized steel wire rope Ø4.5mm.Galvanized steel wire rope Ø4.5mm.Galvanized steel wire rope Ø4.5mm.
Static Strength12kN for 3 minutes12kN for 3 minutes12kN for 3 minutes12 kN for 3 minutes
Attached HookPN 162PN162PN162PN 162
Wire Rope Length07 Meters10m20m30 m
Weight3.08 kgs4.28 kgs6.05 kgs13.28 kgs

Specifications as published by Karam. Please confirm the exact model with us before ordering.
