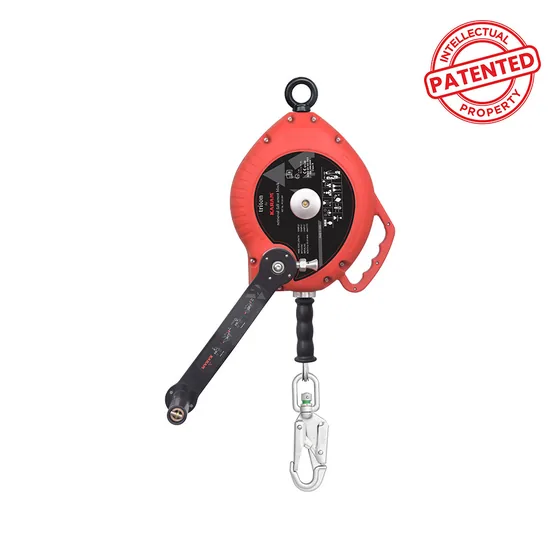

Supplier for KaramA dual mode block that works as a fall arrester or, by setting a locking pin, as a retrieval winch for raising a fallen worker. Stainless steel wire rope in 20 m or 30 m, for confined space entry and rescue with tripod and megapod systems.
Standards and approvals: EN 360:2023, EN 1496:2017, ATEX 2014/34/EU, CE, ATEX
Sizes: 20m, 30m
| Specification | 20m | 30m |
|---|---|---|
| Casing Type | Plastic Casing | Plastic casing |
| Rope Type and Dia | Stainless steel wire rope Ø4.8mm. | Stainless steel wire rope Ø4.8mm. |
| Minimum Breaking Strength | 12kN | 12kN |
| Attached Hook | PN 162 | PN162 |
| Wire Rope Length | 20m | 30m |
| Weight | 8.34 kgs | 14.92 kgs |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
A self retracting backup device that stops a suspended load, such as machinery or stage equipment, from dropping if the main lifting system fails. Rated for loads up to 200 kg and offered with 2 m, 3 m or 10 m of cable.
Backup fall arrest for suspended loads up to 300 kg, from machinery to stage equipment. It has the widest choice of cable length among the polymer cased load arresters: 2 m, 3 m, 5 m, 10 m or 15 m.
For heavier suspended loads such as lighting rigs, stage gear and industrial machinery, this arrester halts an accidental drop of up to 400 kg. Cable lengths are 10 m, 15 m and 20 m.
A secondary safety device for heavy suspended loads and structures, rated for a maximum of 500 kg, with 10 m or 15 m of cable.
The highest rated load arrester in this Karam range, with a high strength alloy steel casing and stainless steel wire rope, for suspended loads up to 1000 kg in industrial, scenic and stage settings. Cable lengths are 10 m, 11 m and 16 m.
Sizes: 2.0m, 3.50m, 6.0m, 10.0m
A polymer cased webbing block with a steel snap hook, certified by Karam to both EN 360:2023 and the Indian standard IS 3521(Part 3):2021. Offered in 2 m, 3.5 m, 6 m and 10 m lengths.
A self retractable fall arrester with a 4 mm galvanised steel cable and an integrated energy absorber in an ABS case, made in 6, 10 and 15 m lengths and tested at 150 kg so tools carried by the user are covered.
A compact self retractable fall arrester with a 46 mm strap and energy absorber, 2.50 m long, in a protective case with one AM002 carabiner. It is the retractable supplied in the ELARA140 kit.
