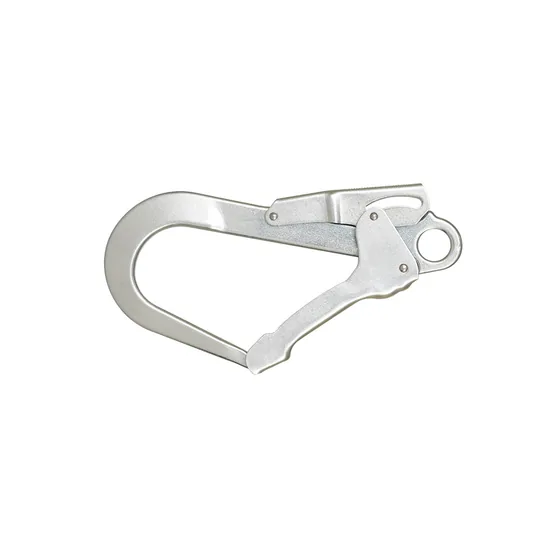

Supplier for KaramA forged alloy steel scaffold hook with a wide gate for clipping onto scaffold tubes, and a gate profile shaped so the fingers sit comfortably when opening it. PN131N has an auto closing, auto locking gate and is ISI marked to IS 3521 (Part 5):2021; PN177 adds a triple action lock.
Standards and approvals: EN 362:2004 Class T, IS 3521(Part 5):2021, CE, ISI
| Specification | PN131N | PN177 |
|---|---|---|
| Material | Alloy steel | Alloy steel |
| Gate Opening | 50.0mm | 50.8mm |
| Minimum Breaking Strength | 23kN | 23kN |
| Net Weight | 473.0gm | 536.0gm |
| Finish | Silver/golden yellow galvanized, shot blasted on request | Silver/golden yellow galvanized, shot blasted on request |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
A light, forged aluminium alloy karabiner with a bulb shaped, snag resistant body and a screw sleeve that the user locks by hand. Five versions with gate openings from 15 to 25 mm, including one with a lock indicator (PN116B(LI)) and one that also lists ATEX 2014/34/EU (PN116BE).
A forged aluminium alloy bulb type karabiner whose self closing gate locks itself and opens with a quarter twist of the sleeve, so it is quick to clip and unclip through a shift. Offered with gate openings from 14.0 to 24.0 mm.
An aluminium bulb type karabiner with a triple action gate that needs three deliberate movements to open, for users who want extra protection against the gate opening by accident. Gate openings run from 14.0 to 24.0 mm.
A forged alloy steel bulb type karabiner with a hand tightened screw sleeve and a galvanized finish. Choose the compact PN112BE, the PN112B(LI) with a lock indicator that confirms closure, or the large PN194BE with a 27.0 mm gate and 45 kN strength.
Galvanized alloy steel bulb type karabiners with a self closing, self locking gate that opens with a quarter turn of the sleeve. Four sizes cover gate openings from 15 to 25 mm, with minimum breaking strengths of 23, 40 or 45 kN.
An alloy steel bulb type karabiner with a triple action locking sleeve that needs three separate movements to open. Gate openings from 16 to 25 mm and strengths from 23 to 45 kN let you match it to the connection.
