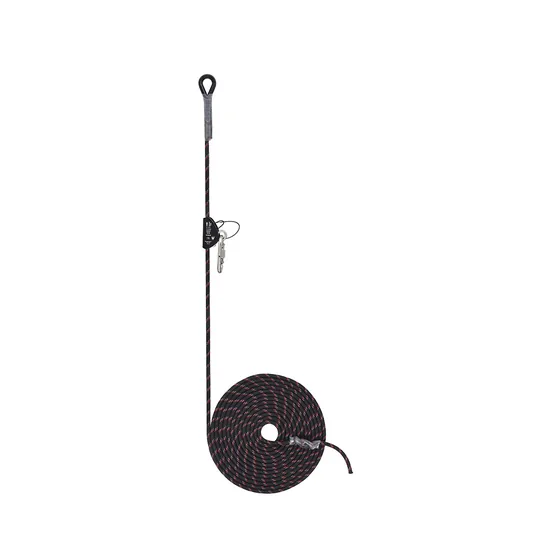

Supplier for KaramAn aluminium alloy rope grab supplied with a steel screw-lock karabiner, for hands-free movement up and down a fixed lifeline. Karam offers it with a range of rope lengths.
Standards and approvals: EN 353-2:2002, IS 3521(Part 4):2021, CE, ISI
| Specification | PN2009 |
|---|---|
| Rope Grab for PN2009 | Openable aluminium alloy rope grab: RG09 |
| Rope Grab for PN2009(F) | Non-openable aluminium alloy rope grab: RG09(F) |
| Rope Grab for PN2009(SA) | Openable aluminium alloy rope grab RG09 permanently stitched with shock absorber PN300(S) |
| Attachment Element | Steel screw locking karabiner PN112(C) |
| Anchorage Line | Kernmantle rope of dia 11mm |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
A compact single point anchor in anodized aluminium alloy, fixed to walls, ceilings, rooftops or steel structures to give one permanent tie-off point. It weighs about 308 g and Karam lists a minimum breaking strength of 23 kN.
An alloy steel point anchor with a zinc (galvanized) finish for walls, ceilings, rooftops and steel structures, listed for up to 4 users. Two versions: SA10 (380 g, also conforming to ANSI Z359.18:2017 Type A) and the forged SA10A (435 g).
A polished stainless steel anchorage eye for permanent fixing into concrete, set in a pre-drilled hole with an adhesive capsule. Karam lists a minimum breaking strength of 12 kN and a weight of about 300 g.
A stainless steel flange anchor with an electropolished or e-coated finish, bolted to walls, ceilings, rooftops or steel structures. It takes load in the X, Y and Z directions and Karam lists a minimum breaking strength of 23 kN.
A small single point flange anchor in stainless steel, about 60 g, fixed with a standard M12 bolt and nut to walls, ceilings, rooftops or steel structures. Karam lists a minimum breaking strength of 12 kN.
A portable beam clamp whose adjustable jaw fits a wide range of steel beam flange widths, giving a temporary anchor point on site. The SA08 is built in aluminium alloy and brass (1.87 kg); the SA08M (1.56 kg) is listed with a black ED coated finish.
A 25 mm tubular strap with a sewn loop at each end that serves either as a lanyard or as a transportable anchorage point (EN 795 Type B) on a suitable structure. Made in 1 m (LO030100), 1.50 m (LO030150) and 2 m (LO030200).
