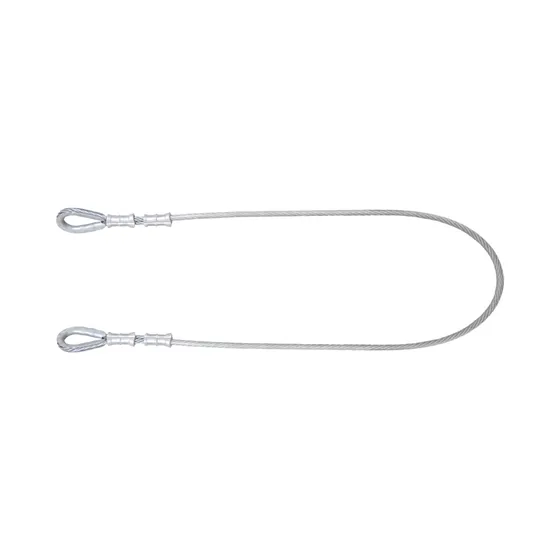

Supplier for KaramAn 8.0mm galvanized steel wire rope sling with a PVC coating and steel thimbles at both ends, wrapped around beams, pipes or structures to make an anchor point. The coating protects the rope against wear and weather.
Standards and approvals: EN 795:2012 Type B, ATEX 2014/34/EU, IS 3521(Part 7):2021, CE, ATEX, ISI
| Specification | 1.0m, 1.5m, 1.8m and 2.0m or as requested |
|---|---|
| Material | PVC coated G.I wire rope of dia 8.0mm |
| Length | 1.0m, 1.5m, 1.8m and 2.0m or as requested |
| Minimum Breaking Strength | 23kN |
| Attachments | Steel thimbles at both the ends |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
A compact single point anchor in anodized aluminium alloy, fixed to walls, ceilings, rooftops or steel structures to give one permanent tie-off point. It weighs about 308 g and Karam lists a minimum breaking strength of 23 kN.
An alloy steel point anchor with a zinc (galvanized) finish for walls, ceilings, rooftops and steel structures, listed for up to 4 users. Two versions: SA10 (380 g, also conforming to ANSI Z359.18:2017 Type A) and the forged SA10A (435 g).
A polished stainless steel anchorage eye for permanent fixing into concrete, set in a pre-drilled hole with an adhesive capsule. Karam lists a minimum breaking strength of 12 kN and a weight of about 300 g.
A stainless steel flange anchor with an electropolished or e-coated finish, bolted to walls, ceilings, rooftops or steel structures. It takes load in the X, Y and Z directions and Karam lists a minimum breaking strength of 23 kN.
A small single point flange anchor in stainless steel, about 60 g, fixed with a standard M12 bolt and nut to walls, ceilings, rooftops or steel structures. Karam lists a minimum breaking strength of 12 kN.
A portable beam clamp whose adjustable jaw fits a wide range of steel beam flange widths, giving a temporary anchor point on site. The SA08 is built in aluminium alloy and brass (1.87 kg); the SA08M (1.56 kg) is listed with a black ED coated finish.
A 25 mm tubular strap with a sewn loop at each end that serves either as a lanyard or as a transportable anchorage point (EN 795 Type B) on a suitable structure. Made in 1 m (LO030100), 1.50 m (LO030150) and 2 m (LO030200).
