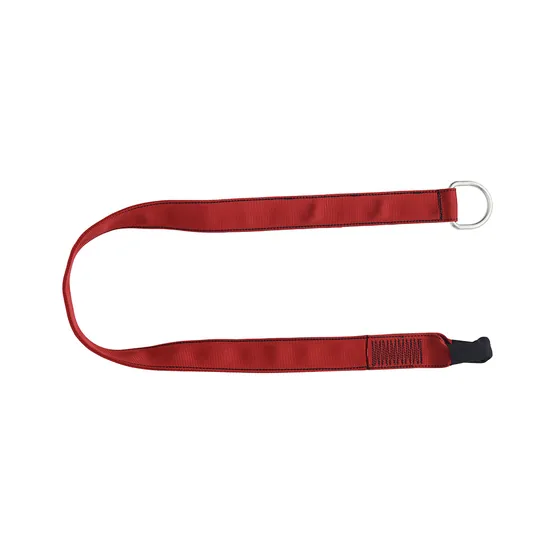

Supplier for KaramA webbing strap that wraps around a beam, pipe or other fixed structure to make a quick tie-off point. Karam offers it with a loop and D-ring (PN803, PN805), D-rings at both ends (PN804), a small and a large D-ring (PN806) or loops at both ends (PN808), in lengths from 0.5m to 2m or as requested.
Standards and approvals: EN 795:2012 Type B, AS/NZS 5532:2013, IS 3521(Part 7):2021, CE, ASNZS, ISI, EN 566:2017
Sizes: 0.5m or as requested, 1.07m or as requested, 1.2m or as requested
| Specification | 0.5m or as requested | 1m, 1.5m and 2m or as requested | 1.0m, 1.5m and 2.0m or as requested | 1.07m or as requested | 1.2m or as requested |
|---|---|---|---|---|---|
| Material | 44mm wide Polyester webbing | 44mm wide Polyester webbing | 44mm wide Polyester webbing | 44mm wide Polyester webbing | 44mm wide Polyester webbing |
| Length | 0.5m or as requested | 1m, 1.5m and 2m or as requested | 1.0m, 1.5m and 2.0m or as requested | 1.07m or as requested | 1.2m or as requested |
| Minimum Breaking Strength | 18kN for 3 minutes | 18kN for 3 minutes | 18kN for 3 minutes | 18kN for 3 minutes | 18kN for 3 minutes |
| Attachments | Loops at both the ends | Has a D-ring on both the ends | Small D-ring on one end and a bigger D-ring on the other | D-ring at one end and textile loop at the other end. Provided with a Polyester covering on the load-bearing face of the webbing, for abrasion resistance | D-ring at one end and textile loop at the other end |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
A compact single point anchor in anodized aluminium alloy, fixed to walls, ceilings, rooftops or steel structures to give one permanent tie-off point. It weighs about 308 g and Karam lists a minimum breaking strength of 23 kN.
An alloy steel point anchor with a zinc (galvanized) finish for walls, ceilings, rooftops and steel structures, listed for up to 4 users. Two versions: SA10 (380 g, also conforming to ANSI Z359.18:2017 Type A) and the forged SA10A (435 g).
A polished stainless steel anchorage eye for permanent fixing into concrete, set in a pre-drilled hole with an adhesive capsule. Karam lists a minimum breaking strength of 12 kN and a weight of about 300 g.
A stainless steel flange anchor with an electropolished or e-coated finish, bolted to walls, ceilings, rooftops or steel structures. It takes load in the X, Y and Z directions and Karam lists a minimum breaking strength of 23 kN.
A small single point flange anchor in stainless steel, about 60 g, fixed with a standard M12 bolt and nut to walls, ceilings, rooftops or steel structures. Karam lists a minimum breaking strength of 12 kN.
A portable beam clamp whose adjustable jaw fits a wide range of steel beam flange widths, giving a temporary anchor point on site. The SA08 is built in aluminium alloy and brass (1.87 kg); the SA08M (1.56 kg) is listed with a black ED coated finish.
A 25 mm tubular strap with a sewn loop at each end that serves either as a lanyard or as a transportable anchorage point (EN 795 Type B) on a suitable structure. Made in 1 m (LO030100), 1.50 m (LO030150) and 2 m (LO030200).
