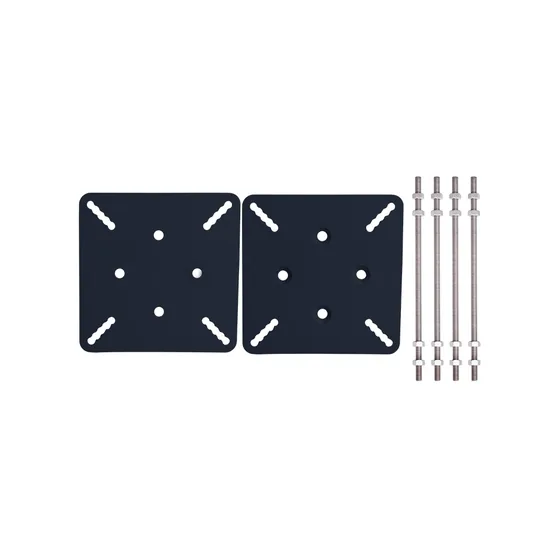

Supplier for KaramAnchor plates that carry a horizontal lifeline: the SA22 extremity plate for the ends of the line and the SA23 intermediate for points along it, which limits how far a worker can fall. Both come in black ED coated alloy steel or grey ED coated stainless steel.
Standards and approvals: EN 795:2012 Type A, TS 16415:2013, CE
| Specification | SA22 | SA23 |
|---|---|---|
| Material | Alloy steel/stainless steel | Alloy steel/stainless steel |
| Finish | ED coated | ED coated |
| Breaking Strength | 15kN | |
| Weight | 12.45kg | 3.87kg |
| Min Adjustable Opening | 150.0mm | 150.0mm |
| Max Adjustable Opening | 220.0mm | 220.0mm |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
A compact single point anchor in anodized aluminium alloy, fixed to walls, ceilings, rooftops or steel structures to give one permanent tie-off point. It weighs about 308 g and Karam lists a minimum breaking strength of 23 kN.
An alloy steel point anchor with a zinc (galvanized) finish for walls, ceilings, rooftops and steel structures, listed for up to 4 users. Two versions: SA10 (380 g, also conforming to ANSI Z359.18:2017 Type A) and the forged SA10A (435 g).
A polished stainless steel anchorage eye for permanent fixing into concrete, set in a pre-drilled hole with an adhesive capsule. Karam lists a minimum breaking strength of 12 kN and a weight of about 300 g.
A stainless steel flange anchor with an electropolished or e-coated finish, bolted to walls, ceilings, rooftops or steel structures. It takes load in the X, Y and Z directions and Karam lists a minimum breaking strength of 23 kN.
A small single point flange anchor in stainless steel, about 60 g, fixed with a standard M12 bolt and nut to walls, ceilings, rooftops or steel structures. Karam lists a minimum breaking strength of 12 kN.
A portable beam clamp whose adjustable jaw fits a wide range of steel beam flange widths, giving a temporary anchor point on site. The SA08 is built in aluminium alloy and brass (1.87 kg); the SA08M (1.56 kg) is listed with a black ED coated finish.
A 25 mm tubular strap with a sewn loop at each end that serves either as a lanyard or as a transportable anchorage point (EN 795 Type B) on a suitable structure. Made in 1 m (LO030100), 1.50 m (LO030150) and 2 m (LO030200).
