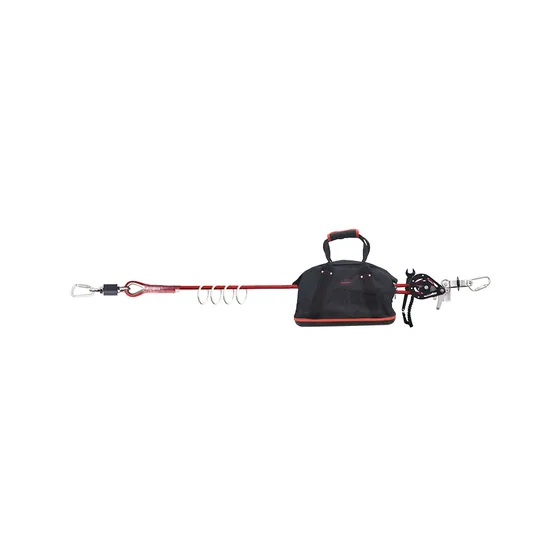

Supplier for KaramA reusable 16mm kernmantle rope lifeline for up to four workers, with an aluminium and stainless steel tensioner, a tension indicator and a swivel connector that stops the rope twisting. Users cross over without detaching; the PN3001 has four forged galvanized steel O-rings and the PN3001(C) four cross over anchors.
Standards and approvals: EN 795:2012 Type C, TS 16415:2013 Type C, CE, IS 3521(Part 8):2021, ISI
| Specification | PN3001 | Horizon PN3001(C) |
|---|---|---|
| Rope Type | Kernmantle rope of dia 16mm | Kernmantle rope of dia 16mm |
| Material of Tensioner | Aluminium and stainless steel | Aluminium and stainless steel |
| Attachment Ends | One end-swivel connector with PN113 other end-tension indicator with PN113 | One end-swivel connector with PN113 other end-tension indicator with PN113 |
| Anchorage Type | Forged galvanized steel O-rings. Qty-4 nos | Cross over anchors. Qty-4 nos |
| Max. No. of Users | 4 Users | 4 Users |
| Max Span Length | 5m to 25m | |
| Weight | 9.28kg ± 0.10kg | 10.11kg ± 0.10kg |
| Max Span length | 5m to 25m |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
A compact single point anchor in anodized aluminium alloy, fixed to walls, ceilings, rooftops or steel structures to give one permanent tie-off point. It weighs about 308 g and Karam lists a minimum breaking strength of 23 kN.
An alloy steel point anchor with a zinc (galvanized) finish for walls, ceilings, rooftops and steel structures, listed for up to 4 users. Two versions: SA10 (380 g, also conforming to ANSI Z359.18:2017 Type A) and the forged SA10A (435 g).
A polished stainless steel anchorage eye for permanent fixing into concrete, set in a pre-drilled hole with an adhesive capsule. Karam lists a minimum breaking strength of 12 kN and a weight of about 300 g.
A stainless steel flange anchor with an electropolished or e-coated finish, bolted to walls, ceilings, rooftops or steel structures. It takes load in the X, Y and Z directions and Karam lists a minimum breaking strength of 23 kN.
A small single point flange anchor in stainless steel, about 60 g, fixed with a standard M12 bolt and nut to walls, ceilings, rooftops or steel structures. Karam lists a minimum breaking strength of 12 kN.
A portable beam clamp whose adjustable jaw fits a wide range of steel beam flange widths, giving a temporary anchor point on site. The SA08 is built in aluminium alloy and brass (1.87 kg); the SA08M (1.56 kg) is listed with a black ED coated finish.
A 25 mm tubular strap with a sewn loop at each end that serves either as a lanyard or as a transportable anchorage point (EN 795 Type B) on a suitable structure. Made in 1 m (LO030100), 1.50 m (LO030150) and 2 m (LO030200).
