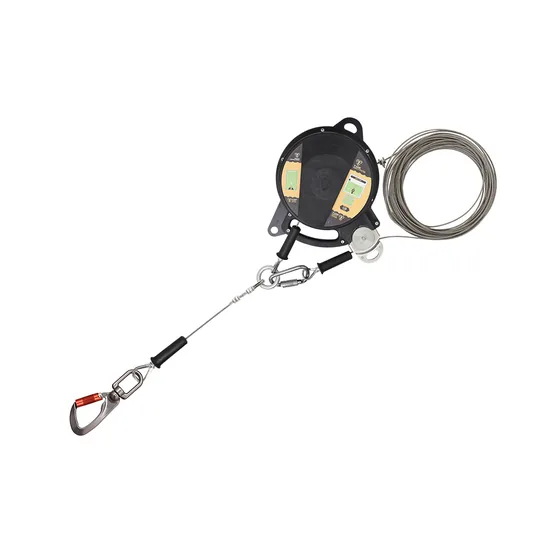

Supplier for KaramThe T-Line without the rescue winch: two independent automatic locking, retractable lifelines in a high strength polymer housing that let the user move horizontally and vertically without pendulum swing. It can be set up as a T-Line, V-Line or Mono Line, or used alone as a retractable fall arrester.
| Specification | T01LW | T01LWSS | T01AW | T01AWSS |
|---|---|---|---|---|
| Ref | T01LW | T01LWSS | T01AW | T01AWSS |
| Product | T-Line 24 mtr. without Winch and GI Wire Rope | T-Line 24 mtr. without Winch and SS Wire Rope | T-Line 12 mtr. without winch and GI Wire Rope | T-Line 12 mtr. without winch and SS Wire Rope |
| Construction of Rope | 7 strands of 19 wires Ø4.5mm | 7 strands of 19 wires Ø4.8mm | 7 strands of 19 wires Ø4.5mm | 7 strands of 19 wires Ø4.8mm |
| Span Length of Wire Rope | Horizontal-24mtrs. Vertical-18.0mtrs. Horizontal-13.0mtrs Vertical-12.0 mtrs. | Horizontal-24mtrs. Vertical-6.0mtrs. Horizontal-5.0mtrs Vertical-12.0 mtrs. | Horizontal-12mtrs. Vertical-6.0mtrs. Horizontal-5.0mtrs Vertical-12.0 mtrs. | Horizontal-12mtrs. Vertical-6.0mtrs. Horizontal-5.0mtrs Vertical-12.0 mtrs. |
| Weight | 22.15 kgs±0.10 kgs | 22.65 kgs±0.10 kgs | 18.13 kgs±0.10 kgs | 18.63 kgs±0.10 kgs |
| Conforms to | Conforms to Protocol of test Quintin Certification T Line V2 | Conforms to Protocol of test Quintin Certification T Line V2 | Conforms to Protocol of test Quintin Certification T Line V2 | Conforms to Protocol of test Quintin Certification T Line V2 |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
A compact single point anchor in anodized aluminium alloy, fixed to walls, ceilings, rooftops or steel structures to give one permanent tie-off point. It weighs about 308 g and Karam lists a minimum breaking strength of 23 kN.
An alloy steel point anchor with a zinc (galvanized) finish for walls, ceilings, rooftops and steel structures, listed for up to 4 users. Two versions: SA10 (380 g, also conforming to ANSI Z359.18:2017 Type A) and the forged SA10A (435 g).
A polished stainless steel anchorage eye for permanent fixing into concrete, set in a pre-drilled hole with an adhesive capsule. Karam lists a minimum breaking strength of 12 kN and a weight of about 300 g.
A stainless steel flange anchor with an electropolished or e-coated finish, bolted to walls, ceilings, rooftops or steel structures. It takes load in the X, Y and Z directions and Karam lists a minimum breaking strength of 23 kN.
A small single point flange anchor in stainless steel, about 60 g, fixed with a standard M12 bolt and nut to walls, ceilings, rooftops or steel structures. Karam lists a minimum breaking strength of 12 kN.
A portable beam clamp whose adjustable jaw fits a wide range of steel beam flange widths, giving a temporary anchor point on site. The SA08 is built in aluminium alloy and brass (1.87 kg); the SA08M (1.56 kg) is listed with a black ED coated finish.
A 25 mm tubular strap with a sewn loop at each end that serves either as a lanyard or as a transportable anchorage point (EN 795 Type B) on a suitable structure. Made in 1 m (LO030100), 1.50 m (LO030150) and 2 m (LO030200).
