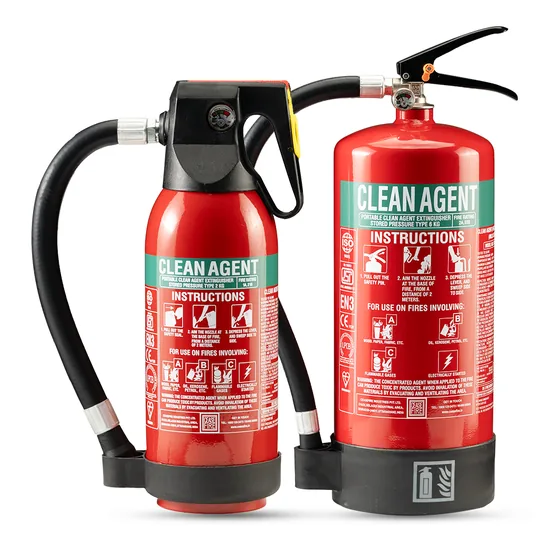

Authorised distributor for CeasefireStored pressure clean agent extinguisher with HFC 236fa in 2, 4 and 6 kg, made to IS 15683, with a 1A, 21B rating on the 2 kg size. It leaves no residue and is listed with zero ozone depletion potential.
Standards and approvals: ISO 9001, PED, IS 15683, EN3
Sizes: 2 kg, 4 kg, 6 kg
| Specification | 2 kg | 4 kg | 6 kg | Fire Ext (HFC-236fa) 2 kg MS SP Red | Fire Ext (HFC-236fa) 4 kg MS SP Red | Fire Ext (HFC-236fa) 6 kg MS SP Red |
|---|---|---|---|---|---|---|
| Ratings | 1A, 21B | 1A, 34B | 2A, 55B | |||
| Product Code | CF-001110 | CF-001112 | CF-001114 | |||
| Capacity of Agent | 2 (Kg) | 4 (Kg) | 6 (Kg) | |||
| Filling tolerance by Mass | +5 (%) | +5 (%) | +5 (%) | |||
| Agent | HFC-236fa | HFC-236fa | HFC-236fa | |||
| Certification Standard | ISO 9001, PED, IS 15683, EN3* | ISO 9001, PED, IS 15683, EN3* | ISO 9001, PED, IS 15683, EN3* | |||
| Valve Material of Construction (MOC) | Brass | Brass | Brass | |||
| Valve Construction | Forging and machining | Forging and machining | Forging and machining | |||
| Pressure Relief Valve (PRV) | No | Yes | Yes | |||
| Non Return Valve (NRV) | No | Yes | Yes | |||
| Shell Material of Construction (MOC) | Steel CR2 (Dc01) | Steel CR2 (DC01) | Steel CR2 (DC01) | |||
| Shell Construction | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | |||
| Min. Wall Thickness | 1.0 (mm) | 1.2 (mm) | 1.4 (mm) | |||
| Diameter of Shell (approx.) | 108 (mm) | 140 (mm) | 160 (mm) | |||
| Total Height (approx.) | 368 (mm) | 445 (mm) | 490 (mm) | |||
| Test Pressure | 35 (Bar) | 35 (Bar) | 35 (Bar) | |||
| Anti-Corrosive Treatment External | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | |||
| Service Pressure | 10 (Bar) | 10 (Bar) | 10 (Bar) | |||
| Type of Operating Mechanism | Thumb Trigger | Squeeze Grip | Squeeze Grip | |||
| Type of Pressure Gauge | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | |||
| MOC and Length of Hose | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 300 mm (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 400 mm (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 400 mm (mm) | |||
| Minimum Throw Distance (BRD as per IS-15683) | > 2 (Meter) | > 2 (Meter) | > 2 (Meter) | |||
| Min. Discharge Time (as per IS-15683) | 8 (Sec.) | 8 (Sec.) | 13 (Sec.) | |||
| Applicable to Type of Fire | A, B, C, & Electrical Started Fire | A, B, C, & Electrical Started Fire | A, B, C, & Electrical Started Fire | |||
| Fire Rating - IS Rating | 1A | 21B | 1A | 34B | 2A | 55B | |||
| Fire Rating - EN-3 Rating | 21B | 34B | 34B | |||
| Operating Temperature Range | From -30 to +60 (°C) | From -30 to +60 (°C) | From -30 to +60 (°C) | |||
| Extinguisher Label | Screen printed | Screen printed | Screen printed | |||
| Glow in the Dark Fire Extinguisher Locator | No | Yes | Yes | |||
| Green Packaging (Environment Friendly) | Yes | Yes | Yes | |||
| Gross Weight* | 3.40 to 3.60 (Kg) | 6.20 to 6.50 (Kg) | 8.90 to 9.10 (Kg) | |||
| Product Warranty** | 10 (Year) | 10 (Year) | 10 (Year) | |||
| Mounting Bracket | Wire Bracket | L Bracket with J hanger | L Bracket with J hanger |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Compact clean agent extinguisher in 500 g and 1 kg for homes, cars and electronics, filled with Fluoroketone (FK-5-1-12) and operated by a thumb trigger. It leaves no powder, foam or water residue and is rated for Class A, B, C and electrically started fires.
Sizes: 2 kg, 4 kg, 6 kg, 9 kg
Clean agent portable range built to EN 3 for European approvals, in 2, 4, 6 and 9 kg, with a choice of HFC 236fa or Fluoroketone agent. The 2 kg size is rated 21B and the range fights Class A, B and electrically started fires.
Sizes: 2 kg, 4 kg, 6 kg
BIS certified portable clean agent extinguisher filled with Fluoroketone (FK-5-1-12), in 2, 4 and 6 kg, with a 1 kg size also listed by Ceasefire. The 2 kg size is rated 1A, 21B, and Ceasefire describes it as a low pressure design that does not displace oxygen in the fire zone.
Sizes: 2 kg, 4 kg, 6 kg
Stored pressure clean agent extinguisher with HFC 227ea in 2, 4 and 6 kg, made to IS 15683, with a 1A, 21B rating on the 2 kg size. It is meant for offices and electronic equipment where powder would cause corrosion.
Sizes: 2 kg, 4 kg, 6 kg
Portable stored pressure extinguisher charged with HFC-236fa clean agent gas, supplied in 2 kg, 4 kg and 6 kg with a hose and nozzle discharge. Suited to electrical rooms, computer centres and storage areas where residue is unacceptable.
Sizes: 2 kg, 4 kg, 6 kg
Stored pressure extinguisher using Chemours UL listed FE-36 gas with zero ozone depletion potential, in 2 kg, 4 kg and 6 kg. Nozzle discharge, built for electronics, aircraft, vehicles and document storage.
Sizes: 1 kg to 9 kg
Stored pressure extinguisher in 1, 2, 4, 6 and 9 kg filled with Grenoz 1230 (FK-5-1-12) clean agent, for facilities with electrical panels or electronic equipment. The agent leaves no residue, and the 1 kg size has a minimum effective discharge time of 8 seconds.
Sizes: 1 kg to 9 kg
Grenoz 1230 clean agent extinguisher with a stainless steel cylinder in 1, 2, 4, 6 and 9 kg. Meant for coastal and high salinity sites, boats and rooms with electronic equipment.
Sizes: 2 kg | 4 kg | 6 kg
A stored pressure extinguisher charged with FK5-1-12 clean agent gas, which tackles fire by cooling and chain interruption without leaving residue, water or powder. It is offered in 2, 4 and 6 Kg with an MS or stainless steel body.
