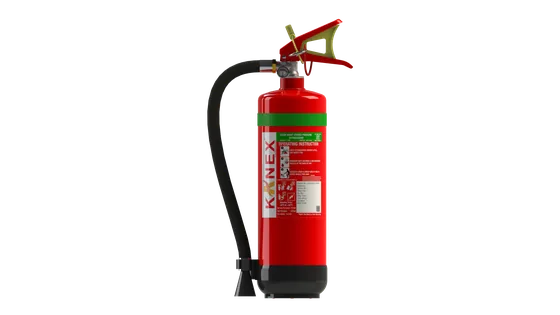

Authorised distributor for KanexStored pressure extinguisher using Chemours UL listed FE-36 gas with zero ozone depletion potential, in 2 kg, 4 kg and 6 kg. Nozzle discharge, built for electronics, aircraft, vehicles and document storage.
Standards and approvals: UL, CE, IS 15683:2006, BIS, ISI
Sizes: 2 kg, 4 kg, 6 kg
| Size | Model | Fire rating | Discharge time | Throw range | Pressure (service / max / test) | Full weight | Height |
|---|---|---|---|---|---|---|---|
| 2 kg | KCAHQ-2-FE36 | 1A:21B | 14 Sec. | 2 m | 15 / 18 / 35 bar | 3.4 kg | 380 mm |
| 4 kg | KCAHQ-4-FE36 | 2A:34B | 18 Sec. | 3 m | 15 / 18 / 35 bar | 6.6 kg | 490 mm |
| 6 kg | KCAHQ-6-FE36 | 2A:55B | 24 Sec. | 5 m | 15 / 18 / 35 bar | 8.9 kg | 530 mm |
| Specification | 2 kg | 4 kg | 6 kg |
|---|---|---|---|
| Design | Nozzle | Hose & Nozzle | Hose & Nozzle |
| Diameter (Approx.) | 106±10 mm | 140±10 mm | 150±10 mm |
| Average Discharge | 95% | 95% | 95% |
| Operating Temperature | -30 °C to +60 °C | -30 °C to +60 °C | -30 °C to +60 °C |
| Expelling Agent | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) |
| Empty Weight (Approx.) | 1.4 kg | 2.6 kg | 2.9 kg |
| Shipping Weight (Approx.) | 3.6 kg | 7.0 kg | 9.2 kg |
| Packing Standard | Inner- 13.75"X4.75"X4.75” Outer (4 in 1)- 16.5"X10"X10” | 2 in 1- 21"X6.75"X14.10” | 2 in 1- 21"X6.75"X14.10” |
| Mounting Bracket | Wall bracket | Wall bracket | Wall bracket |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
Sizes: 2 kg, 4 kg, 6 kg
Portable stored pressure extinguisher charged with HFC-236fa clean agent gas, supplied in 2 kg, 4 kg and 6 kg with a hose and nozzle discharge. Suited to electrical rooms, computer centres and storage areas where residue is unacceptable.
Sizes: 2 kg, 4 kg, 6 kg
The same FE-36 clean agent extinguisher in a polished stainless steel body, chosen where the unit is on public display. Available in 2 kg, 4 kg and 6 kg.
Sizes: 2 kg, 4 kg, 6 kg
Portable extinguisher charged with UL listed FK-5-1-12 fluoroketone, an agent with low ozone depletion and low global warming potential that evaporates without residue. Rated for Class A, Class B and electrical fires, in 2 kg, 4 kg and 6 kg.
Sizes: 2 kg, 4 kg, 6 kg
FK-5-1-12 fluoroketone extinguisher in a smooth finish stainless steel body for offices, boats and display areas. Leaves no residue on electronics and documents.
Compact clean agent extinguisher in 500 g and 1 kg for homes, cars and electronics, filled with Fluoroketone (FK-5-1-12) and operated by a thumb trigger. It leaves no powder, foam or water residue and is rated for Class A, B, C and electrically started fires.
Sizes: 2 kg, 4 kg, 6 kg, 9 kg
Clean agent portable range built to EN 3 for European approvals, in 2, 4, 6 and 9 kg, with a choice of HFC 236fa or Fluoroketone agent. The 2 kg size is rated 21B and the range fights Class A, B and electrically started fires.
Sizes: 1 kg to 9 kg
Stored pressure extinguisher in 1, 2, 4, 6 and 9 kg filled with Grenoz 1230 (FK-5-1-12) clean agent, for facilities with electrical panels or electronic equipment. The agent leaves no residue, and the 1 kg size has a minimum effective discharge time of 8 seconds.
Sizes: 1 kg to 9 kg
Grenoz 1230 clean agent extinguisher with a stainless steel cylinder in 1, 2, 4, 6 and 9 kg. Meant for coastal and high salinity sites, boats and rooms with electronic equipment.
Sizes: 2 kg | 4 kg | 6 kg
A stored pressure extinguisher charged with FK5-1-12 clean agent gas, which tackles fire by cooling and chain interruption without leaving residue, water or powder. It is offered in 2, 4 and 6 Kg with an MS or stainless steel body.
