Aaag Breeching Inlet, Cast Iron, 2, 3 and 4 Way (AAAG C151, C153, C154)
Dry riser breeching inlets with a cast iron body and gunmetal non return valves, in 2, 3 or 4 way versions, each inlet a 63 mm male instantaneous connection.

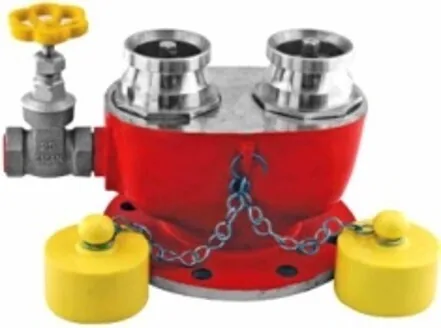

Supplier for AaagAaag Breeching Inlet, Stainless Steel SS 304, 2, 3 and 4 Way (AAAG S151, S153, SS154)
Dry riser breeching inlets in SS 304 throughout, in 2, 3 or 4 way versions, each 63 mm male instantaneous inlet with its own non return valve.
- 2 way (S151), 3 way (S153) or 4 way (SS154)
- SS 304 body, NRVs and valve bodies
- 63 mm male instantaneous inlets, each with an NRV
- Base flange 100 NB (2 way) or 150 NB (3 and 4 way), ANSI B 16.5 150#
- Test pressure 21 bar
Specifications
Specifications
| Specification | AAAG S151 | AAAG S153 | AAAG SS154 |
|---|---|---|---|
| Model | AAAG S151 | AAAG S153 | AAAG SS154 |
| Material (Body) | Stainless Steel, SS 304 | Stainless Steel, SS 304 | Stainless Steel, SS 304 |
| Material (NRV) | Stainless Steel, SS 304 | Stainless Steel, SS 304 | Stainless Steel, SS 304 |
| Material (Valve Body) | Stainless Steel, SS 304 | Stainless Steel, SS 304 | Stainless Steel, SS 304 |
| Test Pressure | 21 Bar | 21 Bar | 21 Bar |
| Base Flange | 100 NB (4”) , ANSI B 16.5 150 # | 150 NB (6”) , ANSI B 16.5 150 # Optional : 100 NB ( 4”) | 150 NB (6”) , ANSI B 16.5 150 # |
| Inlet | 2 X 63mm NRV Male Instantaneous | 3 X 63mm NRV Male Instantaneous | 4 X 63mm NRV Male Instantaneous |
| Finish | Red Polyurethane | Red Polyurethane | Red Polyurethane |
Specifications as published by Aaag. Please confirm the exact model with us before ordering.
More Aaag Dry Riser Inlets and Air Release Valves
Aaag Breeching Inlet, Gunmetal, 2, 3 and 4 Way (AAAG GM151, GM153, GM154)
All gunmetal dry riser breeching inlets in 2, 3 or 4 way versions, with a non return valve behind each 63 mm male instantaneous inlet.
Aaag Breeching Inlet, Gunmetal, 4 Way Horizontal (AAAG G155)
A horizontal pattern 4 way breeching inlet in gunmetal, with four 63 mm male instantaneous inlets, each with a non return valve, on a 150 NB base flange.
Aaag Breeching Inlet, Stainless Steel, 4 Way Horizontal (AAAG S155)
A horizontal pattern 4 way breeching inlet in SS 304, with four 63 mm male instantaneous inlets and non return valves on a 150 NB base flange.
Aaag Dry Riser Single Inlet, Gunmetal (AAAG G1740)
A single inlet for a dry riser in gunmetal, with one 63 mm male instantaneous inlet and non return valve on a 75 NB base flange.
Aaag Dry Riser Single Inlet, Stainless Steel (AAAG S1740)
A single dry riser inlet in SS 304, with one 63 mm male instantaneous inlet and non return valve on a 75 NB base flange.
Fire Brigade Inlets and Hydrant Fittings from other brands
Kartar Valves
Kartar Valves Breech Inlet with Inbuilt Check Valves, 2, 3 and 4 Way (K910)
Water inlet connections for fire brigade use, with inbuilt check valves, in 2 way, 3 way and 4 way versions. Offered in gunmetal or stainless steel, without a gate valve or with a 20 mm gate valve, and with Eco model options for the 2 way and 4 way inlets.
Kartar Valves
Kartar Valves Spares for Hose Couplings and Breech Inlets
Replacement parts for Kartar hose couplings and breech inlets: a lug bush assembly and a rubber seal for hose couplings, and a rubber cap with chain for the breech inlet.
New Age
New Age Collecting Breeching
Breeching that joins two or more hose lines into one supply line, in gunmetal or aluminium alloy, with 2.5, 3 or 4 inch connections.
New Age
New Age Dividing Breeching
Breeching that divides one supply hose into several hose lines, in gunmetal or aluminium alloy, with 2.5, 3 or 4 inch connections.
Ceasefire
Ceasefire CF 3000 Self Contained Watermist Hydrant System
Self contained watermist firefighting unit with its own pressure container and water storage, for sites with no ready supply of compressed air and water. Ceasefire states it works with 60 litres of water and makes droplets averaging under 50 microns.
Minimax
Minimax Collecting Breaching Head (Fire Brigade Inlet), 2, 3 or 4 Way
Sizes: 2 Way, 3 Way, 4 Way
Fire brigade inlet connection with 63 mm male instantaneous inlets to IS:903, each with a built-in check valve, and a flanged outlet. Offered in 2-way, 3-way and 4-way versions.
