A fire brigade inlet, also called a breeching inlet or Siamese connection, lets fire service pumps feed water from outside into a building's riser or sprinkler system, and fittings such as breechings, draw off connections and riser shaft doors complete the hydrant installation. Fire Protection System supplies these from Kartar Valves, New Age, Ceasefire, Minimax, Savemax, Aaag and Balaji Fire Safety in Bhopal and across Madhya Pradesh.
Water inlet connections for fire brigade use, with inbuilt check valves, in 2 way, 3 way and 4 way versions. Offered in gunmetal or stainless steel, without a gate valve or with a 20 mm gate valve, and with Eco model options for the 2 way and 4 way inlets.
Replacement parts for Kartar hose couplings and breech inlets: a lug bush assembly and a rubber seal for hose couplings, and a rubber cap with chain for the breech inlet.
Breeching that joins two or more hose lines into one supply line, in gunmetal or aluminium alloy, with 2.5, 3 or 4 inch connections.
Breeching that divides one supply hose into several hose lines, in gunmetal or aluminium alloy, with 2.5, 3 or 4 inch connections.
Dry riser inlet breeching with two instantaneous inlets, each with a non return valve, and a 4 inch flanged outlet; body in gunmetal, aluminium alloy or cast iron.
Dry riser inlet breeching with three instantaneous inlets, each with a non return valve, and a 6 inch flanged outlet; body in gunmetal, aluminium alloy or cast iron.
Four way dry riser inlet breeching with instantaneous inlets fitted with non return valves and a 6 inch flanged outlet; body in gunmetal, aluminium alloy or cast iron.

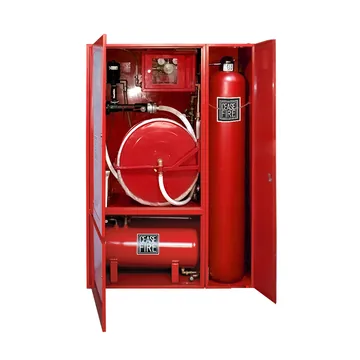

Self contained watermist firefighting unit with its own pressure container and water storage, for sites with no ready supply of compressed air and water. Ceasefire states it works with 60 litres of water and makes droplets averaging under 50 microns.
Sizes: 2 Way, 3 Way, 4 Way

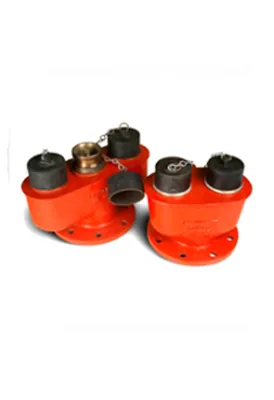

Fire brigade inlet connection with 63 mm male instantaneous inlets to IS:903, each with a built-in check valve, and a flanged outlet. Offered in 2-way, 3-way and 4-way versions.

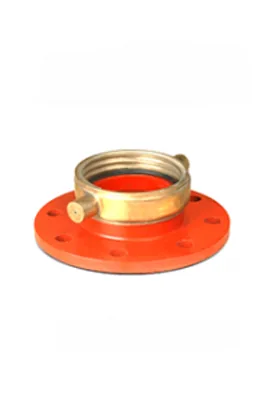

Draw off connection for firefighting systems with a gunmetal body, a 100 mm inlet and an 80 mm flat faced flanged outlet. It is hydraulically tested at 21 kgf/sq.cm for 150 seconds.

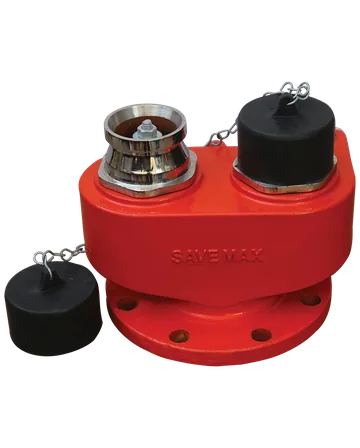

An external fire brigade inlet, also called a Siamese connection, with two connections feeding one internal riser, fitted on the facade or boundary wall. It lets the fire brigade pump water from its tanker into the building's wet riser or sprinkler system.

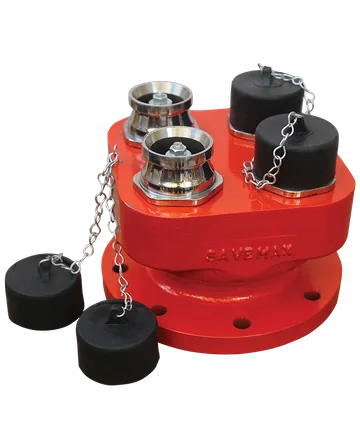

A fire brigade inlet with four connections feeding a single or dual riser outlet, for buildings with high demand hydrant systems. It allows the fire brigade to pump from several tankers at the same time.

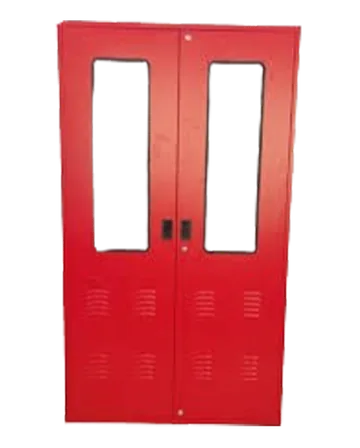

A fire rated access door for the wet riser shaft at each floor, giving maintenance access to the riser pipe and valves while keeping the shaft's fire compartment intact. It is made to standard fire shaft dimensions.
Dry riser breeching inlets with a cast iron body and gunmetal non return valves, in 2, 3 or 4 way versions, each inlet a 63 mm male instantaneous connection.
All gunmetal dry riser breeching inlets in 2, 3 or 4 way versions, with a non return valve behind each 63 mm male instantaneous inlet.
A horizontal pattern 4 way breeching inlet in gunmetal, with four 63 mm male instantaneous inlets, each with a non return valve, on a 150 NB base flange.
Dry riser breeching inlets in SS 304 throughout, in 2, 3 or 4 way versions, each 63 mm male instantaneous inlet with its own non return valve.
A horizontal pattern 4 way breeching inlet in SS 304, with four 63 mm male instantaneous inlets and non return valves on a 150 NB base flange.
A single inlet for a dry riser in gunmetal, with one 63 mm male instantaneous inlet and non return valve on a 75 NB base flange.
A single dry riser inlet in SS 304, with one 63 mm male instantaneous inlet and non return valve on a 75 NB base flange.

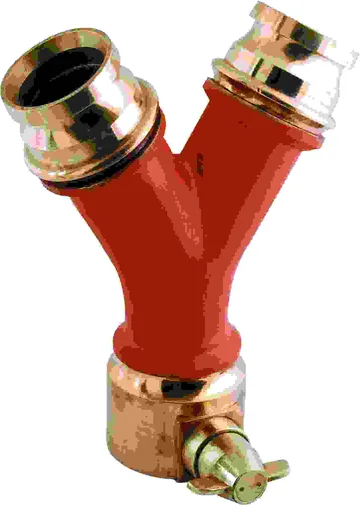

A breeching that combines two hose lines into one, made to IS 905, in 63 mm with 38 mm as an option.
Sizes: 63 mm

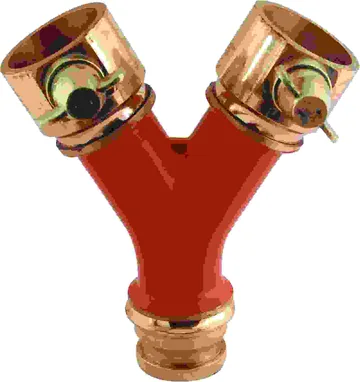

A breeching that splits one hose line into two, made to IS 905, in 63 mm.
Sizes: 63 mm

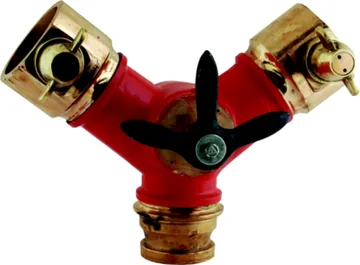

A dividing breeching with control over the flow to each branch, made to IS 5131 Type A, in 63 mm.
Sizes: 63 mm
A controlled dividing breeching of ball design in 63 mm, for splitting one hose line into two with control over each branch.
Sizes: 63 MM, 63 mm
A two way fire brigade inlet with a cast iron body and two 63 mm connections, fixed outside the building so the fire brigade can pump water into the hydrant or riser system.
A two way inlet valve in brass and bronze with 63 mm connections and a red powder coated finish, listed at a pressure of 21 kg.
A three way fire brigade inlet with a cast iron body, three 63 mm inlets and an 80 mm outlet to the riser, in red paint.
Sizes: 63 MM
A four way fire brigade inlet with a cast iron body, four 63 mm connections and a 100 mm flanged connection to the riser, for high rise and industrial buildings. Wall mounted, with a working pressure of 10 bar.
Sizes: 63 mm
A four way inlet valve with a gold coating and 63 mm connections for outdoor hydrant use, weighing about 13 kg. Balaji lists it as non ISI certified.
Choose the number of inlets from the size of the building and the number of risers. Savemax lists its two way inlet for smaller buildings, residential towers and commercial blocks with one riser, and its four way inlet for large buildings, hospitals, malls and industrial complexes, where the fire brigade may pump from several tankers at once into a single or dual riser outlet. Kartar Valves, New Age, Minimax, Aaag and Balaji Fire Safety offer 2, 3 and 4 way inlets, and Aaag also makes single dry riser inlets and a horizontal 4 way pattern. The outlet grows with the number of inlets: Aaag uses a 100 NB base flange on 2 way and 150 NB on 3 and 4 way inlets, and New Age a 4 inch outlet on 2 way and 6 inch on 3 and 4 way.
Next check the connections, valves and standard. The Minimax, Aaag and Balaji Fire Safety inlets are 63 mm connections, male instantaneous on Minimax and Aaag (to IS:903 on the Minimax breaching head), and Kartar Valves, New Age, Minimax and Aaag fit a non return or check valve behind each inlet, so water pumped into one inlet cannot flow back out through an unused one. Kartar Valves offers its inlets with or without a 20 mm gate valve, Savemax lists IS 904 with BIS/ISI marking and CPWD approval, and New Age rates its inlet breechings at 10 bar working and 23 bar test pressure. The inlet is fixed on the facade or boundary wall where a fire tender can reach it.
Then choose the body material. Cast iron bodies come from New Age, Aaag and Balaji Fire Safety, gunmetal from Kartar Valves, New Age and Aaag, SS 304 or stainless steel from Kartar Valves and Aaag, and aluminium alloy from New Age; Aaag's cast iron inlets still use gunmetal non return valves. Balaji Fire Safety also lists a brass and bronze 2 way inlet valve and a gold coated 4 way inlet valve that it lists as non ISI.
For hose lines in the field, collecting breechings join two or more lines into one and dividing breechings split one line into several: Aaag makes them to IS 905 in 63 mm, with controlled dividing breechings to IS 5131 Type A or of ball design, and New Age offers them in 2.5, 3 or 4 inch with instantaneous, Storz, GOST, NST rocker lug or BSRT connections. Minimax adds a gunmetal draw off connection with a 100 mm inlet and 80 mm flanged outlet, tested at 21 kgf/sq.cm for 150 seconds, Savemax a fire rated wet riser shaft door, and Ceasefire the CF 3000, a self contained watermist unit with its own water storage and pressure container for sites without a ready supply.
