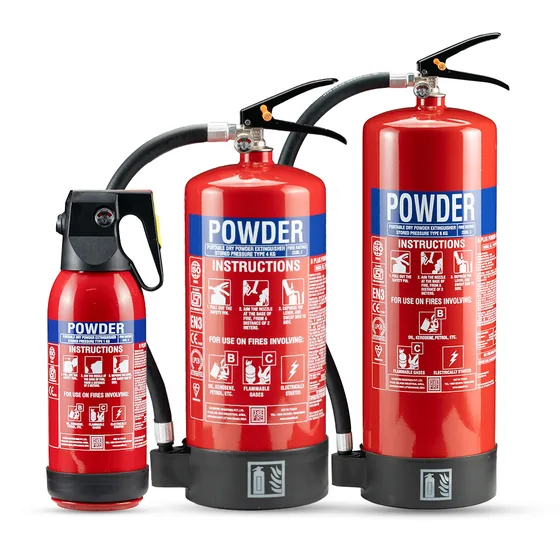

Authorised distributor for CeasefirePowder extinguisher for Class B, C and electrically started fires, filled with B Plus powder that breaks into fine particles on discharge to cover a larger surface. Available from 1 kg to 9 kg in mild steel, with the 1 kg size rated 34B.
Standards and approvals: ISO 9001, PED, IS 15683, EN-3, BIS, LPCB, BSI Kitemark
Sizes: 1 kg to 9 kg
| Specification | 1 kg | Fire Ext B+ 1 kg MS SP Red (Gun Housing) | 2 kg | Fire Ext B+ 2 kg MS SP Red | 4 kg | Fire Ext B+ 4 kg MS SP Red | 6 kg | Fire Ext B+ 6 kg MS SP Red | 9 kg | Fire Ext B+ 9 kg MS SP Red |
|---|---|---|---|---|---|---|---|---|---|---|
| Ratings | 34B | 89B | 233B | 233B | 233B | |||||
| Product Code | CF-000047 | CF-001147 | CF-001149 | CF-001150 | CF-001148 | |||||
| Capacity of Agent | 1 (Kg) | 2 (Kg) | 4 (Kg) | 6 (Kg) | 9 (Kg) | |||||
| Filling tolerance by Mass | ± 2% (%) | ± 2% (%) | ± 2% (%) | ± 2% (%) | ± 2% (%) | |||||
| Agent | B Plus Powder | B Plus Powder | B Plus Powder | B Plus Powder | B Plus Powder | |||||
| Certification Standard | ISO 9001, PED, IS 15683 | ISO 9001, IS-15683, PED, EN3* | ISO 9001, IS-15683, PED, EN3* | ISO 9001, IS-15683, PED, EN3* | ISO 9001, IS-15683, PED, EN3* | |||||
| Valve Material of Construction (MOC) | Brass | Brass | Brass | Brass | Brass | |||||
| Valve Construction | Forging and machining | Forging and machining | Forging and machining | Forging and machining | Forging and machining | |||||
| Pressure Relief Valve (PRV) | No | Yes | Yes | Yes | Yes | |||||
| Non Return Valve (NRV) | No | Yes | Yes | Yes | Yes | |||||
| Shell Material of Construction (MOC) | Steel CR2 (Dc01) | Steel CR2 (DC01) | Steel CR2 (DC01) | Steel CR2 (DC01) | Steel CR2 (DC01) | |||||
| Shell Construction | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | |||||
| Min. Wall Thickness | 1.4 (mm) | 1.2 (mm) | 1.4 (mm) | 1.4 (mm) | 1.6 (mm) | |||||
| Diameter of Shell (approx.) | 108 (mm) | 140 (mm) | 160 (mm) | 175 (mm) | 204 (mm) | |||||
| Total Height (approx.) | 345 (mm) | 445 (mm) | 485 (mm) | 620 (mm) | 620 (mm) | |||||
| Test Pressure | 35 (Bar) | 35 (Bar) | 35 (Bar) | 35 (Bar) | 35 (Bar) | |||||
| Anti-Corrosive Treatment External | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | |||||
| Service Pressure | 15 (Bar) | 15 (Bar) | 15 (Bar) | 15 (Bar) | 15 (Bar) | |||||
| Type of Operating Mechanism | Thumb Triggered | Squeeze Grip | Squeeze Grip | Squeeze Grip | Squeeze Grip | |||||
| Type of Pressure Gauge | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | |||||
| MOC and Length of Hose | Direct Nozzle (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 400 mm (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 400 mm (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 650 mm (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 700 mm (mm) | |||||
| Minimum Throw Distance (BRD as per IS-15683) | > 2 (Meter) | > 2 (Meter) | > 2 (Meter) | > 2 (Meter) | > 2 (Meter) | |||||
| Min. Discharge Time (as per IS-15683) | 8 (Sec.) | 9 (Sec.) | 15 (Sec.) | 15 (Sec.) | 15 (Sec.) | |||||
| Applicable to Type of Fire | B, C, & Electrical Started Fire | B, C, & Electrical Started Fire | B, C, & Electrical Started Fire | B, C, & Electrical Started Fire | B, C, & Electrical Started Fire | |||||
| Fire Rating - IS Rating | 34B | 89B | 233B | 233B | 233B | |||||
| Fire Rating - EN-3 Rating | - | 89B | 233B | 233B | 233B | |||||
| Operating Temperature Range | From -30 to +60 (°C) | From -30 to +60 (°C) | From -30 to +60 (°C) | From -30 to +60 (°C) | From -30 to +60 (°C) | |||||
| Extinguisher Label | Screen printed | Screen printed | Screen printed | Screen printed | Screen printed | |||||
| Glow in the Dark Fire Extinguisher Locator | No | No | Yes | Yes | Yes | |||||
| Green Packaging (Environment Friendly) | Yes | Yes | Yes | Yes | Yes | |||||
| Gross Weight** | 2.20 to 2.40 (Kg) | 4.20 to 4.40 (Kg) | 7.20 to 7.40 (Kg) | 10.20 to 10.40 (Kg) | 14.10 to 14.50 (Kg) | |||||
| Product Warranty*** | 10 (Year) | 10 (Year) | 10 (Year) | 10 (Year) | 10 (Year) | |||||
| Mounting Bracket | Wire Bracket | L Bracket with J hanger | L Bracket with J hanger | L Bracket with J hanger | L Bracket with J hanger |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 2 kg, 4 kg, 6 kg, 9 kg
EN approved stored pressure version of the B Plus powder extinguisher in 2, 4, 6 and 9 kg, for Class B, C and electrically started fires. The 2 kg size is rated 89B.
Sizes: 3 L, 6 L, 9 L
Wet chemical extinguisher for Class A, F and electrically started fires, in 3, 6 and 9 ltr with mild steel and stainless steel containers. The 3 ltr size is rated 8A, 40F, with a throw of 3 m.
Stored pressure extinguisher with the CF Green agent for Class A, B, C, F, electrical and lithium battery fires, in home and car sizes of 1 and 2 ltr and portable sizes of 3, 6 and 9 ltr. The 3 ltr portable is rated 2A, 55B, 25F.
Cartridge operated MultiMax units for large, high intensity fires: a 9 ltr backpack and a 45 ltr trolley, driven by external compressed air cartridges and using compressed air foam (CAF). The gun switches between jet and spray, and the 9 ltr unit is rated 27A, 183B.
Stored pressure Class D extinguisher with SPM Pyro agent for heavy metal fires such as titanium, lead, zinc and copper. Available in 4, 6 and 9 kg mild steel cylinders.
Stored pressure Class D extinguisher with SPM Tec, a powder based on sodium, potassium and barium chlorides, for light metal fires such as magnesium, lithium, sodium and potassium. It can also be used on small oil fires.
Sizes: 2 L, 3 L, 6 L, 9 L
A stainless steel wet chemical extinguisher made for cooking oil and fat fires in commercial kitchens. The low velocity spray cools the oil and forms a blanket on the surface without splashing it.
Sizes: 4 kg, 6 kg, 9 kg
A stored pressure extinguisher charged with sodium chloride or ternary eutectic chloride (TEC) powder for burning metals. The hose and applicator lets the operator place powder on the fire from a safe distance.
Sizes: 1 L to 9 L
Stored pressure kitchen extinguisher with potassium based wet chemical in 1, 2, 4, 6 and 9 litre steel cylinders, for fires in cooking oils and fats. It forms a cooling foam layer over the burning oil and is applied through a nozzle that lets the user stand further back.
Sizes: 10 kg
10 kg gas cartridge extinguisher filled with TEC dry powder for reactive metal fires, with a low velocity lance-like nozzle that applies the powder gently. BIS approved, and to be used only on Class D fires.
Sizes: 2 L | 4 L | 6 L
A stored pressure extinguisher with a wet chemical agent for Class F fires in cooking oil and fat, housed in a stainless steel body. It forms a soap-like crust over the burning oil to knock the fire down and prevent it flaring up.
Sizes: 0.5 kg
A 500 ml (0.5 kg) foam spray can for putting out small fires at an early stage, rated 1 A. Balaji lists ISI, ISO, BIS and CE approvals for it.
