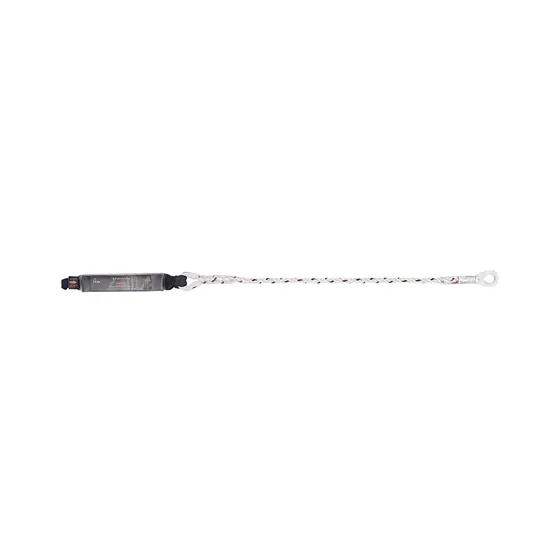

Supplier for KaramA single leg fall arrest lanyard of 12 mm three strand polyamide twisted rope with a built in energy absorber, which slows the user down gradually in a fall instead of stopping them abruptly. Lengths 1.0 to 2.0 m and fifteen end combinations, including a PN141 stainless steel anchorage hook.
Standards and approvals: EN 355:2002, IS 3521(Part 2):2021, CE, ISI
| Specification | 1.0m, 1.5m, 1.8m and 2.0m PN301 | 1.0m, 1.5m, 1.8m and 2.0m PN302 | 1.0m, 1.5m, 1.8m and 2.0m PN303 | 1.0m, 1.5m, 1.8m and 2.0m PN304 | 1.0m, 1.5m, 1.8m and 2.0m PN305 | 1.0m, 1.5m, 1.8m and 2.0m PN306(A) | 1.0m, 1.5m, 1.8m and 2.0m PN307 | 1.0m, 1.5m, 1.8m and 2.0m PN306N | 1.0m, 1.5m, 1.8m and 2.0m PN308(A) | 1.0m, 1.5m, 1.8m and 2.0m PN308N | 1.0m, 1.5m, 1.8m and 2.0m PN309(A) | 1.0m, 1.5m, 1.8m and 2.0m PN309N | 1.0m, 1.5m, 1.8m and 2.0m PN310 | 1.0m, 1.5m, 1.8m and 2.0m PN311 | 1.0m, 1.5m, 1.8m and 2.0m PN312 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rope/Webbing | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope | Polyamide twisted rope |
| Dia/Width | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | |
| Attachment End | Loop | Loop | PN112 | Loop | PN121 | Loop | PN112 | Loop | PN112 | PN112 | PN121 | PN121 | Loop | PN112 | PN121 |
| Anchorage End | Loop | PN112 | PN112 | PN121 | PN121 | PN136 | PN121 | PN131N | PN136 | PN131N | PN136 | PN131N | PN141 | PN141 | PN141 |
| Length | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m | 1.0m, 1.5m, 1.8m and 2.0m |
| Color | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer | White Polyamide twisted rope with black and red tracer |
| Dia/Weight | 12mm |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
Sizes: 2.0m
An adjustable lanyard for work positioning: the user leans back in the harness and sets the working distance with a ring type adjuster, up to 2.0 m. Made in 14 mm three strand polyamide twisted rope (PN241) or 12 mm kernmantle rope (PN244), with a steel PN112 screw locking karabiner at each end.
Sizes: 2.0m
A work positioning lanyard made of 33 mm polyester webbing, adjustable up to 2.0 m with a ring type adjuster and fitted with steel screw locking karabiners at both ends, for steady positioning during inspection and maintenance tasks.
Sizes: 2.0m
Work positioning lanyards whose length is set with an integrated rope grab (grip) adjuster, up to 2.0 m, so the user can hold a stable, hands free stance on poles, structures and inclined surfaces. Choose 14 mm twisted rope (PN242, PN246) or 12 mm kernmantle rope (PN245, PN247).
Sizes: 2.0m
A 12 mm kernmantle work positioning lanyard with a stop knot at one end, a stitched thimble at the other and an openable rope grab built onto one of its two steel karabiners for fine adjustment up to 2.0 m. The maker lists PN249 to EN 358:1999 and PN249(F) to EN 358:2018.
A fixed length restraint lanyard in 12 mm three strand polyamide twisted rope that keeps a worker from reaching an edge, so a fall cannot start. Made in 1.0, 1.5, 1.8 and 2.0 m lengths with twelve end combinations, from plain loops to steel karabiners, snap hooks and scaffold hooks.
A restraint lanyard of 44 mm red and black polyester webbing for keeping workers back from fall hazards on roofs, platforms and walkways. Lengths 1.0 to 2.0 m, with twelve combinations of loops, karabiners, snap hooks and scaffold hooks.
A single leg fall arrest lanyard in webbing with a built in energy absorber and thimble loops. Listed as AN203200ZZ (2 m), AN203100ZZ (1 m) and AN203200ZD (2 m); the catalogue does not explain the ZZ and ZD suffixes, so confirm the end fittings with FPS when ordering.
A work positioning lanyard in 10.5 mm braided rope with a tensioner and an AM010 carabiner, used with a positioning belt to set the distance between the worker and the structure. EX030200 adjusts from 0.20 to 2 m and EX030400 up to 4 m.
