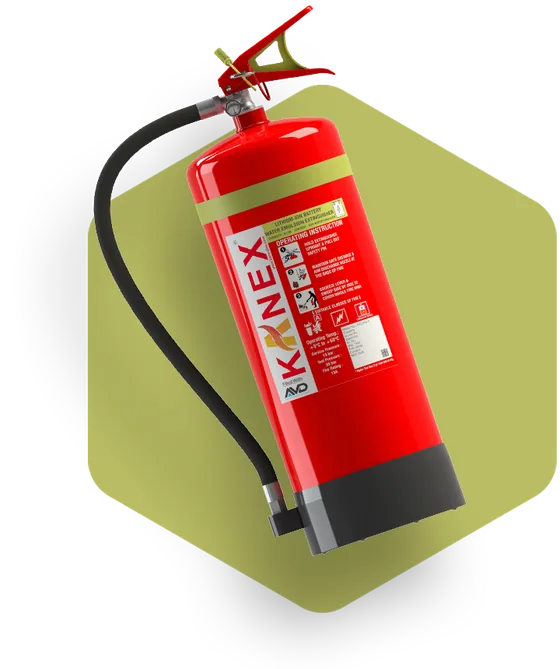

Authorised distributor for KanexKanex AVD Lithium-ion Battery Fire Extinguisher, Stored Pressure (1, 2, 6, 9 Ltr)
A water based AVD extinguisher made specifically for lithium-ion battery fires, applying the agent as a mist that coats the fuel and blocks oxygen. Offered in 1, 2, 6 and 9 litre stored pressure models.
- AVD agent: water carrying exfoliated vermiculite particles that form a non-flammable film over the burning surface
- Applied as a mist to cool the fuel and limit fire spread between cells
- Stored pressure design with nitrogen (UHP grade) as the expelling agent, nozzle type discharge
- 1 Ltr model rated 3A, average discharge 25 seconds, throw 1.5 to 2 m, about 97 percent discharge
- Service, maximum service and test pressures of 15, 18 and 35 bar
- Operating temperature +5 to +60 degrees C
Sizes: 1 L, 2 L, 6 L, 9 L
Specifications
| Size | Model | Fire rating | Discharge time | Throw range | Pressure (service / max / test) | Full weight | Height |
|---|---|---|---|---|---|---|---|
| 1 L | KFLIHQ-1 | 3A | 25 Sec | 1.5 - 2 m | 15 / 18 / 35 bar | 4.2 kg | 325 mm |
| 2 L | KFLIHQ-2 | 5A | 50 Sec | 1.5 - 2 m | 15 / 18 / 35 bar | 5.7 kg | 370 mm |
| 6 L | KFLIHQ-6 | 13A | 120 Sec | 1.5 - 2 m | 15 / 18 / 35 bar | 10.9 kg | 570 mm |
| 9 L | KFLIHQ-9 | 13A | 170 Sec | 1.5 - 2 m | 15 / 18 / 35 bar | 14.5 kg | 640 mm |
All specifications
| Specification | 1 L | 2 L | 6 L | 9 L |
|---|---|---|---|---|
| Design | Nozzle | Nozzle | Hose with Nozzle | Hose with Nozzle |
| Diameter (Approx.) | 86 ± 5 mm | 106 ± 5 mm | 150 ± 5 mm | 180 ± 5 mm |
| Average % Discharge | 97% | 97% | 97% | 97% |
| Operating Temperature | +5 °C to +60 °C | +5 °C to +60 °C | +5 °C to +60 °C | +5 °C to +60 °C |
| Expelling Agent | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) |
| Empty Weight (Approx.) | 2.2 kg | 2.7 kg | 4.9 kg | 5.5 kg |
| Shipping Weight (Approx.) | 4.5 kg | 6.1 kg | 11.3 kg | 15.0 kg |
| Mounting Bracket | VEHICLE MOUNTED / WALL MOUNTED | VEHICLE MOUNTED / WALL MOUNTED | WALL MOUNTED | WALL MOUNTED |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
