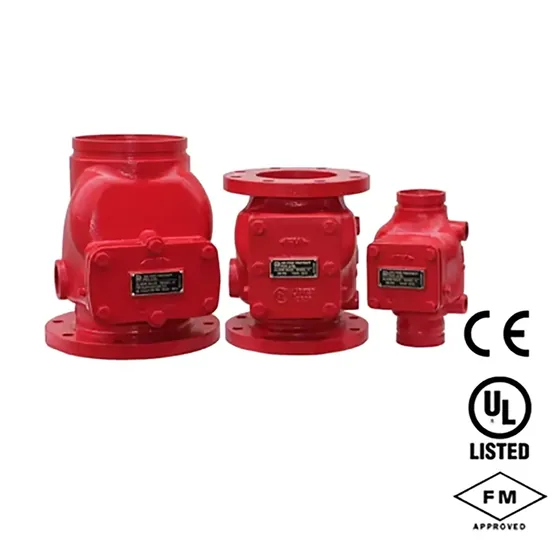

Dealer for HD FireHD Fire Alarm Valve Model H, Ductile Iron, 80 to 200 NB
A wet system alarm check valve that holds pressurised water above its clapper, prevents reverse flow from the sprinkler piping and triggers the fire alarm when water flows. It is UL Listed, FM Approved, CE marked and made to EN 12259-2:1999.
- Sizes 80, 100, 150 and 200 NB
- Ductile iron ASTM A536 body, fusion bonded epoxy coated inside and outside
- Flanged x flanged, grooved x grooved or grooved x flanged ends
- Variable pressure trim with retard chamber and water motor gong
- Constant pressure trim available as an option
Standards and approvals: UL Listed, FM Approved, CE Mark, EN 12259-2:1999
Specifications
Specifications
| Specification | 80 NB, 100 NB, 150 NB, and 200 NB |
|---|---|
| Operating Pressure | Rated for a maximum operating pressure of 17.5 Bar (250 PSI), ensuring reliable performance in demanding fire protection systems. |
| Sizes | Offered in 80 NB, 100 NB, 150 NB, and 200 NB, catering to a range of flow requirements. |
| MODEL | H |
| END CONNECTION | Flange x Flange Flange x Groove Groove x Groove |
| NOMINAL SIZE | 200, 150, 100 & 80 NB |
| MAXIMUM SERVICE PRESSURE | 250 PSI*/ 17.2 BAR |
| THREADED OPENING | BSPT |
| MOUNTING | Vertical |
| FLANGE CONNECTION | ANSI B16.42 #150 (Flange drilling matching to ANSI B 16.5#150) Standard Supply. |
| TRIM | Galvanized fittings with Brass Valves |
| FACTORY HYDROSTATIC TEST PRESSURE | 500 PSI / 34.5 BAR |
| FRICTIONAL LOSS IN TERMS OF EQUIVALENT LENGTH OF PIPE ( C-120 ) | 200 NB - 7.5 Mtrs. 150 NB - 7.0 Mtrs. 100 NB - 6.1 Mtrs. 80 NB - 4.7 Mtrs. |
| FINISH | Red RAL 3001 |
| APPROVAL | UL Listed & FM Approved |
| ORDERING INFORMATION | Specify size of valve, trim details, grooved valve pipe outside diameter. |
| REFERENCE | NFPA 13 and NFPA 25 |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
