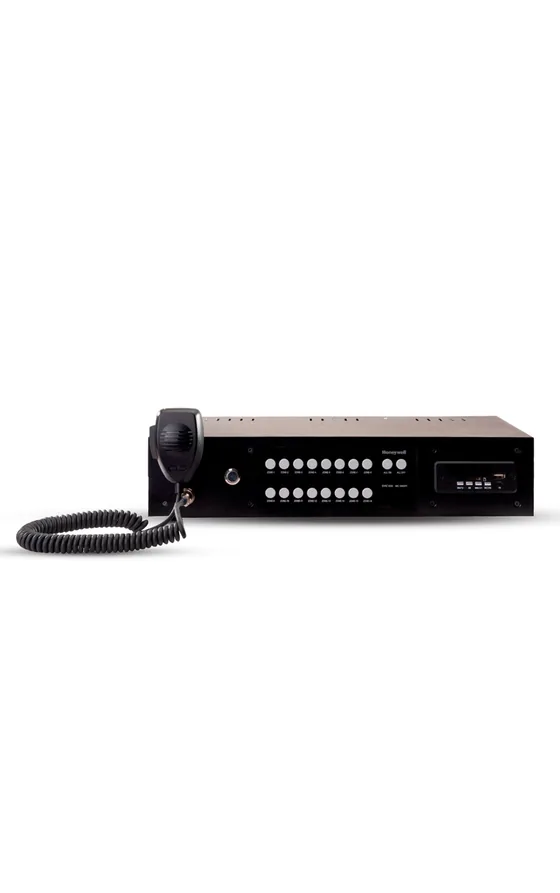

Dealer for HoneywellA local control panel that connects loudspeakers and local audio sources, for sites needing up to 16 loudspeaker circuits (zones). It stores and plays recorded emergency messages to alert or evacuate fire zones.
| Specification | Evacpro-G2 |
|---|---|
| Dimension (W x H x D) | 540 X 577 X 250 mm |
| Line Input | 300mv |
| Microphone Input | 4 Pin DIN Condenser type with N/C contact |
| Line Output | Balanced and unbalanced through phoenix connector - 1.2 V |
| Frequency Response | 20Hz to 20 KHz |
| Total Harmonic Distortion(THD) | 0.01% |
| Constant Voltage Input | 70/100 Volt | 1000 Watts x 2 inputs |
| Remote Paging Microphone with zone selection | Signal Input frequency range : 50Hz to 18 KHz Signal Input Sensitivity : 10mV/Pa Communication : RS485 Transmission distance 300 Mts |
| PTT Microphone Frequency Response | 20Hz to 20 KHz |
| Call station connection | RJ45 (3 inputs) | Audio signal analog 100Hz to 15 Khz | Two way Digital Communication between call station and controller - RS485 | Communication distance 300 m |
| Signal to Noise Ratio (SNR) | >80dB |
| Automatic Evacuation Activation | 15 independent zones + 1 port for all zones phoenix connector Potential free contact closure from fire panel | Pre-recorded message (customizable) |
| Built-in Media Player | USB/SD Card reader - MP3/WAV/FLAC | Bluetooth v5 | FM Tuner |
| Power Supply | Mains 210~240 Volts AC 50Hz | 80 watts |
| Angle Of View | H: 87.3°, V: 56.5° |
| SPL at 1W (at 1Khz,1m) | 92 dB |
| Weight | 10.6Kg |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
The core controller of Honeywell's Intevio PAVA system, handling audio storage and playback, signal processing, zone control, routing, scheduled broadcasts, supervision and fault detection. Its built-in 500 W Class-D amplifier lets one unit work as an 8-zone PAVA system.
Adds 8 speaker zones to an Intevio PAVA system, with two audio channels running at once and independent control of each channel.
Adds 24 speaker zones and 24 monitored contact inputs to an Intevio system, and can drive up to 6 external power amplifiers plus 1 backup amplifier.
The basic unit of the X-618 public address and voice alarm system, combining PA and voice alarm control in one controller. It extends over Ethernet (TCP/IP), which is meant to reduce extension and cabling work in large buildings.
An audio converter with two RJ45 inputs and four RCA outputs that lets ordinary analog amplifiers work with the X-DCS2000/EN, which provides only RJ45 audio connections.
The universal interface unit of the X-618 PAVA system, giving central management of interfaces for medium to large projects. It provides external control access, audio extension, main power protection and 32 dry contact inputs for fire alarm integration.
The heart of the Notifier audio command centre, giving voice evacuation for emergency communications and mass notification, with 8 simultaneous messages and networking across a campus or large facility.
A distribution board that adds digital bulk audio evacuation to the DVC system, converting digital audio to analogue and routing it to amplifiers and optional backups.
Microprocessor based fire alarm panel with a built-in PA system, a 100 V RMS output and up to 11 minutes of digital voice recording. Alert and evacuation announcements are sent through a PA zone selector with All Call.
Sizes: 2,4,8,16,32,64 Zone
Microprocessor based master station for fire fighter telephone systems, available in 2 to 64 zones and working on a DTMF, PSTN based, 2 wire, 24 V telephone circuit. Soft-Chip states it is compatible with all conventional and addressable fire fighter telephone systems.
The control panel of the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
An addressable extension telephone for the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
