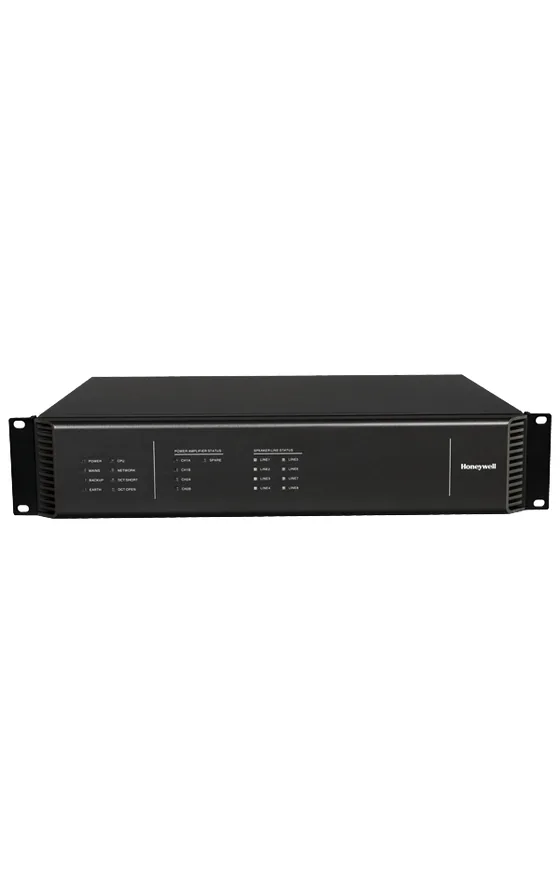

Dealer for HoneywellAdds 8 speaker zones to an Intevio PAVA system, with two audio channels running at once and independent control of each channel.
Standards and approvals: CE
| Specification | HEX-8 |
|---|---|
| Backup power supply voltage | AC 100-240V, 50/60Hz |
| Main Power Supply Voltage | AC 100-240V, 50/60Hz |
| Rated Power | 35W |
| Gross Weight | 10.3Kg |
| Main Power Supply Fuse | T2AL 250V |
| Audio Output Channels | CH1, CH2 |
| Audio Output signal | 1V (0dBV) |
| Audio Output THD | <0.1% |
| Amplifier Control Interfaces Channels | 3 (CH1, CH2 and spare amplifier) |
| Amplifier Control Interfaces Output Signal | 1.4V |
| Amplifier Control Interfaces THD | < 0.1% |
| Amplifier Control Interfaces Control Signal | Self-testing, amplifier fault and power saving control signal |
| Loudspeaker Circuits Output Channels | 8 (with group A and group B) |
| Loudspeaker Circuits Load | 500W |
| Contact Inputs | 8 monitored contact input port |
| Contact Outputs | 8 contact output ports (NO、NC and COM) |
| MAX. Working Voltage for Outputs | AC 250V/DC 30V |
| MAX. Working current for Outputs | 2.5A |
| DC power output | 24V/1A |
| Humidity | < 95%, without condensing |
| Operating Temperature | -10°C~+55°C(14°F to +131°F) |
| Storage Temperature | -40°C~+70°C(-40°F to +158°F) |
| Product dimensions (W×H×D) | 482 mm×88 mm×407 mm |
| Package dimension (W×H×D) | 580mm×235mm×552mm |
| Net Weight | 7.5Kg |
| Line Input Signal | 1V(0dBV) |
| Line Input Impedance | 20 KΩ |
| Line Input Frequency Response | 80Hz-18KHz |
| Power Amplifier Control Interface Channel No. | 3 (CH1, CH2 and spare amplifier) |
| Power Amplifier Control Interface Output Signal | 1.4V |
| Power Amplifier Control Interface THD | <0.1% |
| Power Amplifier Control Interface Control Signal | Self-testing, amplifier fault and power saving control signal |
| Line Input SNR | >85dB, A weighted |
| abc | 24V/1A |
| Description | 8-Zone Expander |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
A local control panel that connects loudspeakers and local audio sources, for sites needing up to 16 loudspeaker circuits (zones). It stores and plays recorded emergency messages to alert or evacuate fire zones.
The core controller of Honeywell's Intevio PAVA system, handling audio storage and playback, signal processing, zone control, routing, scheduled broadcasts, supervision and fault detection. Its built-in 500 W Class-D amplifier lets one unit work as an 8-zone PAVA system.
Adds 24 speaker zones and 24 monitored contact inputs to an Intevio system, and can drive up to 6 external power amplifiers plus 1 backup amplifier.
The basic unit of the X-618 public address and voice alarm system, combining PA and voice alarm control in one controller. It extends over Ethernet (TCP/IP), which is meant to reduce extension and cabling work in large buildings.
An audio converter with two RJ45 inputs and four RCA outputs that lets ordinary analog amplifiers work with the X-DCS2000/EN, which provides only RJ45 audio connections.
The universal interface unit of the X-618 PAVA system, giving central management of interfaces for medium to large projects. It provides external control access, audio extension, main power protection and 32 dry contact inputs for fire alarm integration.
The heart of the Notifier audio command centre, giving voice evacuation for emergency communications and mass notification, with 8 simultaneous messages and networking across a campus or large facility.
A distribution board that adds digital bulk audio evacuation to the DVC system, converting digital audio to analogue and routing it to amplifiers and optional backups.
Microprocessor based fire alarm panel with a built-in PA system, a 100 V RMS output and up to 11 minutes of digital voice recording. Alert and evacuation announcements are sent through a PA zone selector with All Call.
Sizes: 2,4,8,16,32,64 Zone
Microprocessor based master station for fire fighter telephone systems, available in 2 to 64 zones and working on a DTMF, PSTN based, 2 wire, 24 V telephone circuit. Soft-Chip states it is compatible with all conventional and addressable fire fighter telephone systems.
The control panel of the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
An addressable extension telephone for the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
