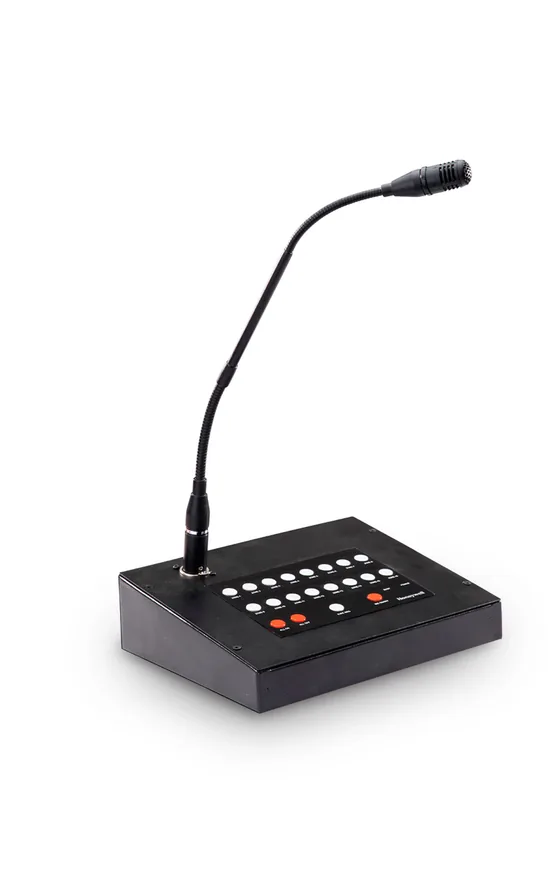

Dealer for HoneywellThe call station microphone of the Evacpro-G2 voice alarm system. It links to the controller over RJ45, with two-way RS485 digital communication over distances up to 300 m.
| Specification | EVACPRO-MIC |
|---|---|
| Microphone input | 4 Pin DIN Condenser type with N/C contact |
| Remote Paging Microphone with zone selection | Signal Input frequency range : 50Hz to 18 KHz Signal Input Sensitivity : 10mV/Pa Communication : RS485 Transmission distance 300 Mts |
| PTT Microphone Frequency Response | 20Hz to 20 KHz |
| Call station connection | RJ45 (3 inputs) | Audio signal analog 100Hz to 15 Khz | Two way Digital Communication between call station and controller - RS485 | Communication distance 300 m |
| Line Input | 300mv |
| Line Output | Balanced and unbalanced through phoenix connector - 1.2 V |
| Constant Voltage Input | 70/100 Volt | 1000 Watts x 2 inputs |
| Frequency Response | 20Hz to 20 KHz |
| Total Harmonic Distortion (THD) | 0.01% |
| Signal to Noise Ratio (SNR) | >80dB |
| Automatic Evacuation Activation | 15 independent zones + 1 port for all zones phoenix connector Potential free contact closure from fire panel | Pre- recorded message (customizable) |
| Built-in Media Player | USB/SD Card reader - MP3/WAV/FLAC | Bluetooth v5 | FM Tuner |
| Power Supply | Mains 210~240 Volts AC 50Hz | 80 watts |
| Dimension | 540 X 577 X 250 mm |
| Weight | 10.6Kg |
| Angle Of View | H: 87.3°, V: 56.5° |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
The call station of the Intevio system for live paging and for starting background music, service or emergency broadcasts. It can record a temporary message and broadcast it straight away without configuration.
A keypad that adds 8 physical keys to the RK-MIC for faster manual operation. Each key can be set for zone selection, group selection, broadcast task selection, volume control or zone close.
A touch screen paging station that connects to the X-618 system over Ethernet for live paging, audio task delivery, zone audio monitoring and intercommunication. Honeywell lists it under two codes, X-NPMS and X-NPMS-R.
A key operated paging console for zone paging and broadcast control on an X-618 system on the same network.
A dynamic push-to-talk (PTT) microphone with a remote switching contact, offered as an optional part for the X-DCS2000/EN and X-NPMR.
An extension keypad that adds 4 physical keys to the X-NPMS or X-NPMK paging station, for quicker manual operation in an emergency.
The heart of the Notifier audio command centre, giving voice evacuation for emergency communications and mass notification, with 8 simultaneous messages and networking across a campus or large facility.
A distribution board that adds digital bulk audio evacuation to the DVC system, converting digital audio to analogue and routing it to amplifiers and optional backups.
Microprocessor based fire alarm panel with a built-in PA system, a 100 V RMS output and up to 11 minutes of digital voice recording. Alert and evacuation announcements are sent through a PA zone selector with All Call.
Sizes: 2,4,8,16,32,64 Zone
Microprocessor based master station for fire fighter telephone systems, available in 2 to 64 zones and working on a DTMF, PSTN based, 2 wire, 24 V telephone circuit. Soft-Chip states it is compatible with all conventional and addressable fire fighter telephone systems.
The control panel of the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
An addressable extension telephone for the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
