Honeywell RAAGA 4 HN-SR30 Two-Way Loudspeaker, 6 inch
A compact, weather-resistant two-way loudspeaker with a 6 inch driver for clear sound reinforcement, able to run standalone on 70/100 V lines.

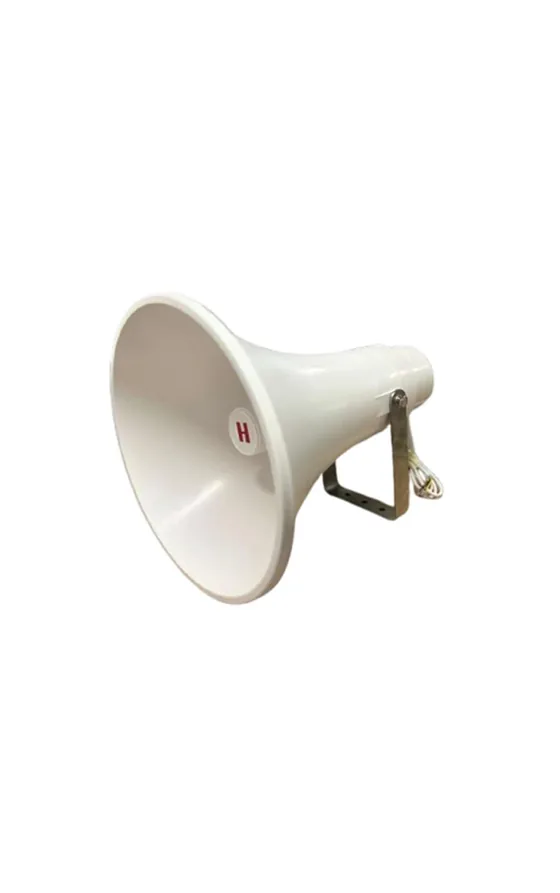

Dealer for HoneywellHoneywell RAAGA 4 HN-PHP25A Horn Speaker, IP65
A weather-resistant horn speaker, protected against dust and strong jets of water, that carries clear voice messages over long distances and above high ambient noise outdoors.
- IP65 rated for outdoor use
- 100 V rated input with adjustable power taps
- Frequency range 500 Hz to 20 kHz (-10 dB)
- 4-core flexible wire connection
- Operating temperature -20 to 55 °C
- CE listed; the RAAGA 4 horn range comes in several sizes and wattages
Standards and approvals: CE
Specifications
Specifications
| Specification | HN-PHP25A |
|---|---|
| Max. Power | 37.5 W |
| Rated Power | 25W |
| Power Tapping | 25W/ 12.5W/ 6.25W |
| Sensitivity (SPL @1W, 1M, 1KHz) | 111 ± 5 dB |
| Sensitivity (SPL@25W, 1M, 1KHz) | 122 ± 5 dB |
| Frequency range (-10 dB) | 500 Hz ~ 20 kHz |
| Nominal Dispersion | 140(H) X 50(V) |
| Rated input voltage | 100V |
| Rated Impedance (@1 KHz) | 25 W 256Ώ, 12.5 W 518 Ώ, 6.25 W 1.05 K Ώ |
| Connection | 4 Core Flexible wire |
| Operating temperature | -20˚C ~ 55˚C |
| Storage and transport temperature | -20˚C ~ 55˚C |
| Relative humidity | <95% |
| IP Rating | IP 65 Qualified |
| Mounting/Suspension | The U-shaped mounting clamp is fixed to the speaker and can be easily mounted on any wall using the three holes provided in the clamp |
| Dimensions (OD x H) (mm) | 304 x 370 |
| Weight (Net) | 2.5 Kg |
| Color | Roma White |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
