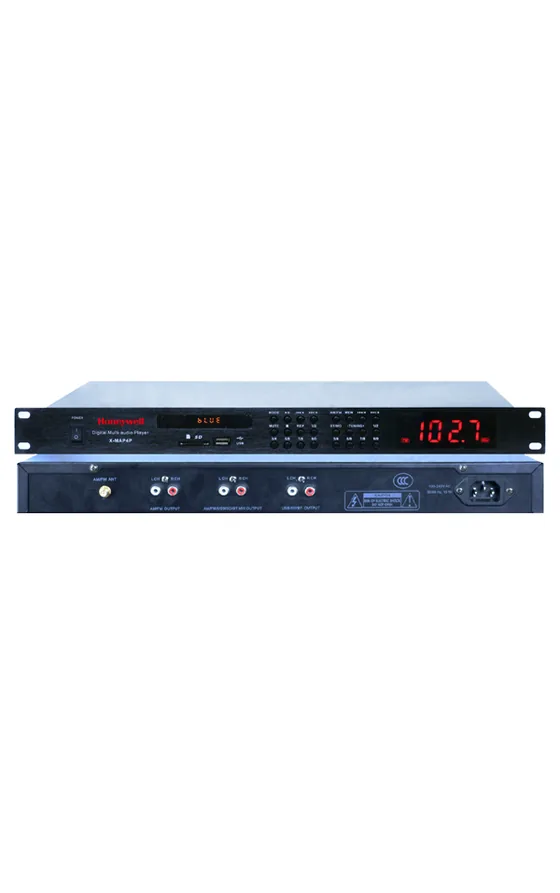

Dealer for HoneywellHoneywell X-618 X-MAP4P Media Player with DAB and FM
A media player that brings several audio sources into the X-618 system, with Digital Audio Broadcast (DAB) and FM reception and playback from memory devices. It can play music to two zones at the same time.
- DAB band 174 to 240 MHz and FM band 87.5 to 108 MHz
- Two channels, for music in two zones at once
- Plays audio files from memory devices
- 220 V, 50 Hz supply, power consumption under 13 W
- Size 482 x 44 x 252 mm; output level 850 mV
- CE listed
Standards and approvals: CE
Specifications
Specifications
| Specification | X-MAP4P |
|---|---|
| Power voltage | ~ 220 V, 50 Hz |
| Dimension (W×H×D) | 482 × 44 × 252 mm |
| Package dimension (W×H×D) | 520 ×142 × 351 mm |
| Power consumption | <13 W |
| Input | DAB / FM 50Ω antenna terminal USB port, SD port |
| Output | Stereo RCA output DAB / FM tuner ( 910 mV ) Stereo RCA output CD / USB / SD ( 910 mV ) |
| Channel | 2 |
| CD-DA Audio Output level | 850 mV |
| CD-DA Audio Frequency response | ±1 dB |
| CD-DA Audio SNR | 80 dB |
| CD-DA Audio Distortion | 0.08 % |
| CD-DA Audio Channel separation | 70 dB |
| MP3/WMA audio Frequency response | 17 Hz - 127 Hz(-1 dB +2 dB) 127 Hz-10 KHz(±1 dB) 20 KHz( ±2 dB) |
| MP3/WMA audio Distortion | 0.15% |
| MP3/WMA audio SNR | 80 dB |
| DAB Band frequency range | 174 MHz - 240 MHz |
| DAB SNR | 60 dB |
| DAB Distortion | 0.2 % |
| DAB Channel separation | 55 dB |
| DAB Input impedance | 50Ω |
| FM Band frequency range | 87.5 MHZ - 108 MHz |
| FM SNR | 48 dB |
| FM Distortion | 1% |
| FM Channel separation | 25 dB |
| Description | X-MAP4 Integrated Audio Player Power amplifier supporting audio from CD, USB, SD card, FM,DAB and etc. |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
