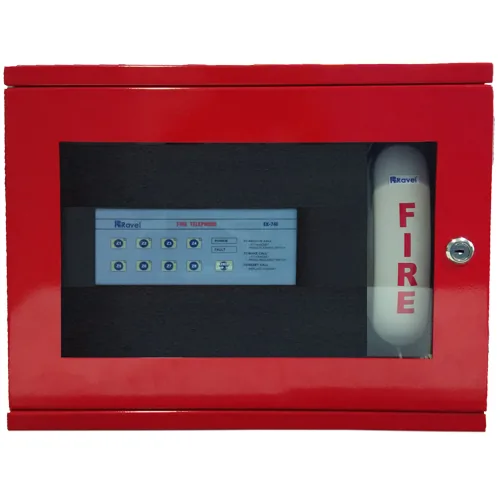

Dealer for RavelRavel Fireman Telephone Master Console
The control room unit of the Ravel fireman telephone system. It calls remote stations, takes calls from them and can hold a conference call.
- Master to remote and remote to master calling
- Conference call facility
- Wiring monitored for open and short circuit faults
- Remote stations wired radially on 2 core cable
- 220 V AC mains with two 12 V, 7 Ah standby batteries
- Ravel states compliance with BS 5839 Part 9
Standards and approvals: BS5839 Pt.9
Specifications
Specifications
| Specification | Details |
|---|---|
| Primary power | 220VAC |
| Secondary power | 24VDC |
| Battery size | 2 X 12V, 7AH |
| DC output | 24V @ 100mA Max. |
| Max no of Zones | 8 |
| Cable | The system outstations are radially wired in 2 core 1.5 mm enhanced fire rated cable or as loop wired 4 core 1.5 mm enhanced fire rated cable |
| Operating Temperature | 0 to 49° C / 32-120° F. |
| Relative Humidity | 93 ± 2% RH (non-condensing)at 32 ±2° C / 90 ±3° F |
| Dimensions | 460mm W X 360mm H X 110 mm D |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
