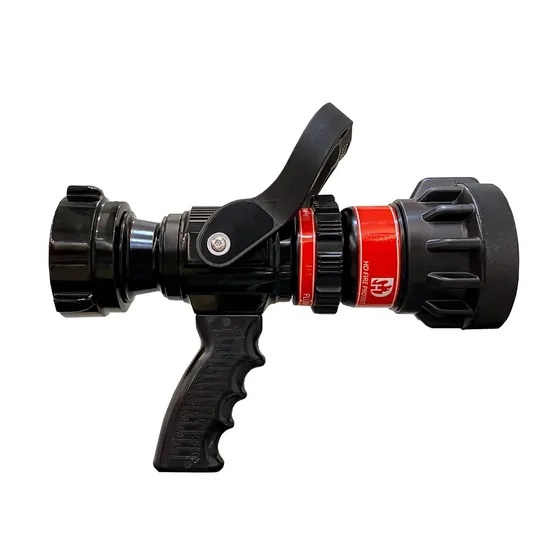

Dealer for HD FireA handline nozzle for fire hoses, made of hard anodized aluminium with stainless steel spinning teeth and a black finish. It works at 3.5 to 7 bar (50 to 100 psi) and is offered with NH, BS336 or Storz inlet connections.
| Specification | Details | CG |
|---|---|---|
| Size | 1″ (25 mm), 2-1/2″ (65 mm) | |
| Operating Pressure | 50-100 PSI (3.5-7 Bar) | |
| Material | Hard Anodized Aluminium | |
| Spinning Teeth | Stainless Steel | |
| Finish | Black | |
| Inlet Connection | NH, BS336 OR STORZ | |
| MODEL | CG | |
| SIZE | 1½” (38 mm), 2½” (65 mm) | |
| OPERATING PRESSURE | 50-100 PSI (3.5-7 Bar) | |
| MATERIAL | Hard Anodized Aluminium | |
| SPINNING TEETH | Stainless Steel | |
| FINISH | Black | |
| INLET CONNECTION | BS336, NH or STORZ |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
Heavy duty bronze nozzles that throw a solid water stream from a monitor, in three fixed flows of 1900, 2650 and 3785 lpm (500, 700 and 1000 gpm). They are FM Approved.
A heavy duty fixed gallonage monitor nozzle with a 2.5 inch BSP swivel female inlet, factory set for a flow between 1500 and 2850 lpm (400 to 750 gpm). It changes from straight stream to wide fog while flowing and works as a water nozzle or a non-aspirating foam nozzle.
A fixed gallonage monitor nozzle with a 3 inch BSP swivel female inlet, factory set for a flow between 1500 and 3030 lpm (400 to 800 gpm). It is FM Approved for water application and made in bronze, stainless steel or hard anodized aluminium with stainless steel internals.
A bronze fixed gallonage monitor nozzle with stainless steel internals, factory set for 500, 750 or 1000 gpm. It is UL Listed with the HD VAJRA 331 monitor and the VAJRA331-S oscillating monitor.
A fixed gallonage monitor nozzle with a 4 inch BSP swivel female inlet, factory set for a flow between 3030 and 7575 lpm (800 to 2000 gpm). It is FM Approved for water application and made in bronze, stainless steel or hard anodized aluminium with stainless steel internals.
A high flow fixed gallonage monitor nozzle with a 150 mm (6 inch) flanged inlet to ANSI B16.5, factory set for a flow between 5680 and 12500 lpm (1500 to 3300 gpm). It is FM Approved for water application.
Sizes: 63 mm
A branch pipe supplied with its nozzle, made to IS 903 with the ISI mark, in gunmetal or stainless steel. Size 63 mm.
Sizes: 3/4"
Shut off nozzles that let the operator open and close the water flow at the hose end. The PVC version is K914-P and the brass version with a 1/2 inch ball valve is K914-B, both with a 3/4 inch connection.
Sizes: 15 mm, 20 mm, 25 mm
Short solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.
Sizes: 15 mm, 20 mm, 25 mm
Long solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.
Short branch pipe for hydrant hoses with a 63 mm instantaneous male inlet and a male threaded outlet carrying a 20 mm bore hexagonal base nozzle. Made to IS:903 and ISI marked, with a buffed finish.
20 mm hose reel nozzle hydraulically crimped to the hose with a metal crimp. It works at 10 bar and is available in ABS or gunmetal versions.
