Branch Pipes and Nozzles in Bhopal

Branch pipes and nozzles sit at the end of a fire hose and shape the water into a jet, spray or fog, and many also let the user shut the flow off at the nozzle. Fire Protection System supplies branch pipes, handline and hose reel nozzles, special purpose nozzles and foam branch pipes from Kartar Valves, New Age, HD Fire, Minimax, Savemax, Aaag and Balaji Fire Safety in Bhopal and across Madhya Pradesh.

Ask for a QuoteCall +91 92440 89060
New Age

New Age Short Branch Pipe, Solid Jet

Solid jetShort branch pipe15 to 25 mm tip

Sizes: 15 mm, 20 mm, 25 mm

Short solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.

View specifications ›
New Age

New Age Long Branch Pipe, Solid Jet

Solid jetLong branch pipe15 to 25 mm tip

Sizes: 15 mm, 20 mm, 25 mm

Long solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.

View specifications ›
New Age

New Age Combat Nozzle

Combat nozzleAluminium alloyFog curtain

Lightweight aluminium alloy nozzle for hollow jet, spray and shut off, with a spinning teeth ring for a wide fog curtain and a moulded rubber grip.

View specifications ›
Savemax

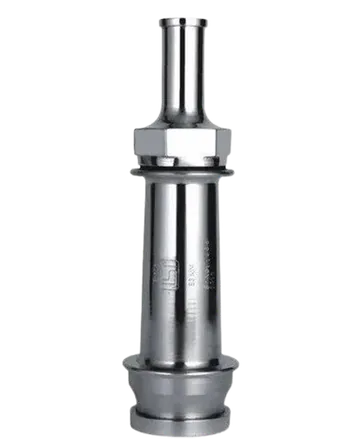

Savemax Shot Branch Pipe, Stainless Steel

Branch pipeStainless steel63 mm RRL coupling

The fitting on the end of a fire hose that controls the discharge pattern and flow of water, made in stainless steel. It fits standard 63 mm RRL hose couplings and gives a jet or spray for direct attack or cooling.

View specifications ›
Aaag

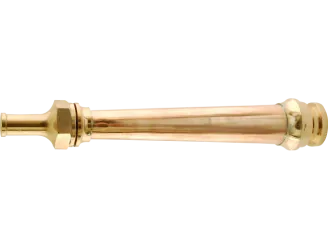

Aaag Long Branch Pipe, Copper (AAAG G111)

Long branch pipeCopper63 mm

Sizes: 63mm Male Instantaneous

A long straight tip branch pipe for fire brigade use, giving a concentrated jet with long reach. Aaag lists it as a copper branch pipe, with gunmetal, stainless steel or aluminium alloy material options in its table.

View specifications ›
Aaag

Aaag Fog Applicator (AAAG A114A)

Fog applicatorLow velocity fog225 LPM

A low velocity fog nozzle for fighting fires in spaces on ships where entry is restricted, also used to give fire fighters a heat shield. It gives a dense fog 4.5 m wide at 225 LPM.

View specifications ›
Aaag

Aaag Nozzle Spanner (AAAG 129)

Nozzle spannerMild steelGalvanised

A galvanised mild steel spanner for changing nozzle tips on short or long play pipes, made for Aaag 63 mm nozzle tips with IS 903 as the reference standard.

View specifications ›
Kartar Valves
Kartar Valves

Kartar Valves Spare Check Valve, 50 mm and 63 mm (K910-CV)

Spare check valve50 mm and 63 mmGM or SS

A spare check valve listed with Kartar's breech inlets, in 50 mm and 63 mm, in gunmetal or stainless steel.

  • Item Description: Spare Check Valve.
  • Size: 50mm, 63mm
  • Material options: Gun Metal | Stainless Steel
Ask price and details ›

How to choose

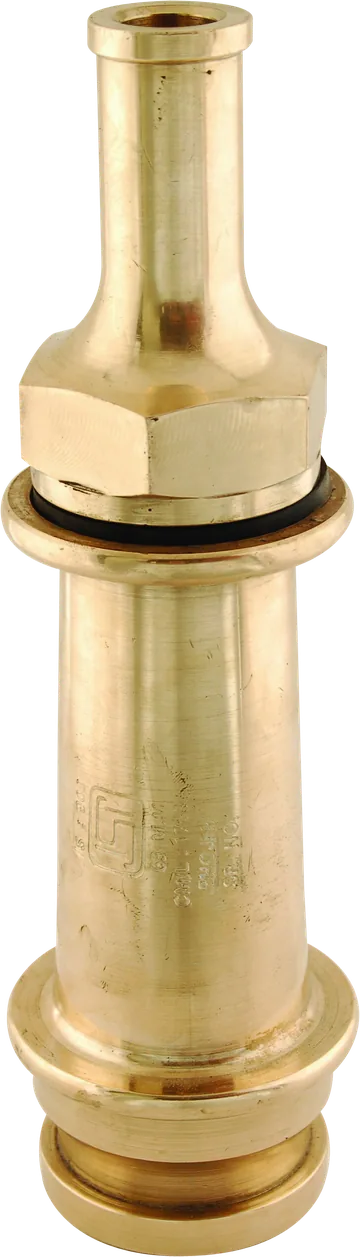

Start with the hose the branch pipe goes on. For hydrant and wet riser hoses, the basic item is a branch pipe with a 63 mm male instantaneous inlet and a smooth bore nozzle that throws a concentrated jet. Minimax makes its short branch pipe to IS:903 with a 20 mm bore nozzle and tests it at 21 kgf/sq.cm for 150 seconds, Kartar Valves supplies its branch pipe with nozzle to IS 903 with the ISI mark, Aaag's ISI approved short branch pipes and its long branch pipe take 6, 12, 16, 20 or 25 mm tips, and New Age offers 15, 20 or 25 mm tips with instantaneous, BSP, NPT, NH or Storz inlets. Savemax's stainless steel branch pipe fits standard 63 mm RRL hose couplings, and Balaji Fire Safety lists short branch pipes in stainless steel, aluminium, brass or gunmetal for 7 bar working pressure.

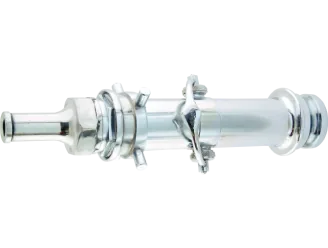

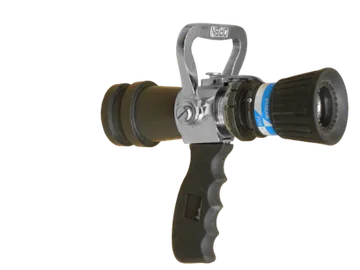

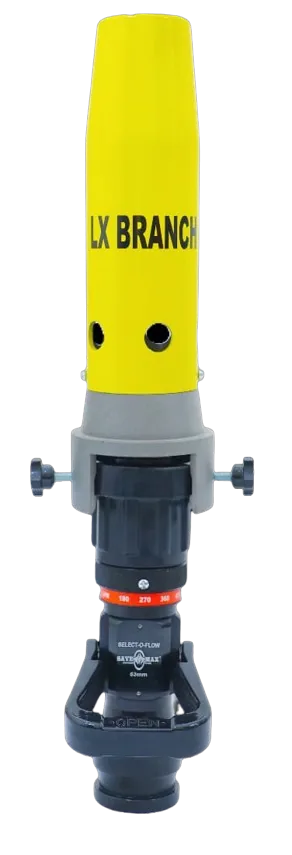

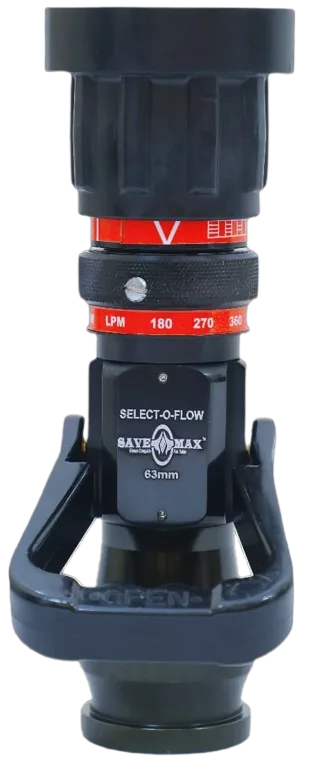

Where the user must control the stream, choose a nozzle with shut off. Triple purpose nozzles from Aaag (to IS 2871, 500 LPM at 7 bar), New Age and Balaji Fire Safety give a jet, spray and shut off, and fog nozzles to IS 952 from New Age and Aaag switch between a solid jet and a dense fog. Handline and pistol grip nozzles add flow control: Aaag's Select-O-Flow and Select-O-Max nozzles have five selectable flows between 150 and 600 LPM at 7 bar, Savemax's Select-O-Flow comes in 560 and 950 LPM ratings, HD Fire's model CG works at 3.5 to 7 bar with NH, BS336 or Storz inlets, and New Age's pistol grip range includes constant pressure and constant flow nozzles compliant with NFPA 1964 and high pressure models for use up to 40 bar and 100 bar.

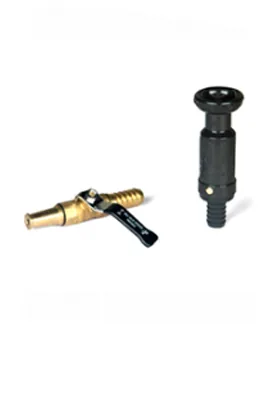

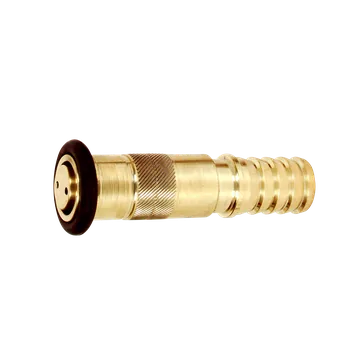

For first aid hose reels, pick a nozzle that matches the hose bore: Aaag's hose reel nozzles fit 19 mm or 25 mm hose in gunmetal, stainless steel or ABS, Minimax's 20 mm nozzle in ABS or gunmetal is crimped to the hose and rated 10 bar, Kartar Valves offers PVC or brass 3/4 inch shut off nozzles, and Balaji Fire Safety lists 20 mm and 25 mm shut off nozzles. Special purpose nozzles include water curtain nozzles that throw a wall of water to shield an area (Aaag, up to 900 LPM, and New Age's 180 degree curtain nozzle), revolving nozzles to IS 906 from New Age and Aaag, Aaag's piercing nozzle for fires inside closed spaces and fog applicator for ships, and New Age's UL Listed spray nozzle, made and tested to UL-40.

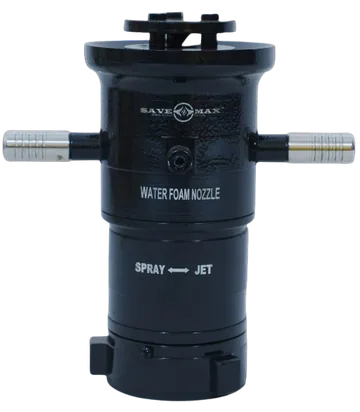

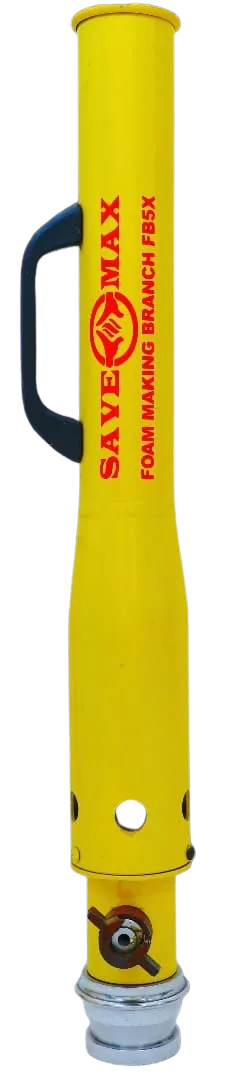

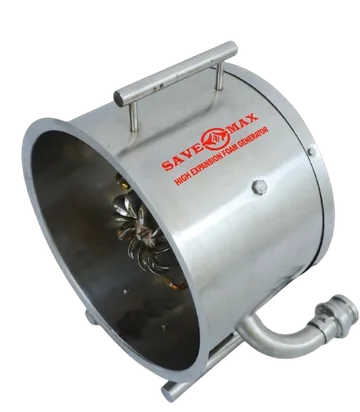

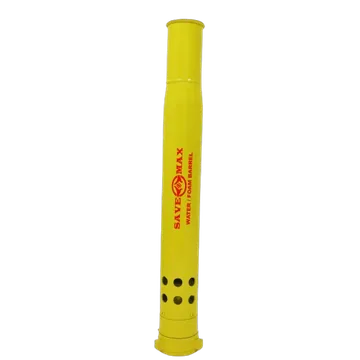

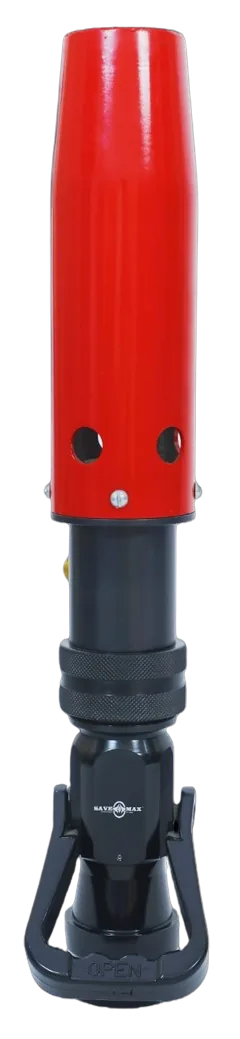

For flammable liquid risks, a foam making branch pipe mixes foam solution with air at the end of a hose: Savemax and Balaji Fire Safety offer FB 5X and FB 10X models, rated by Balaji at 225 and 450 LPM, and Savemax adds self inducting nozzles in 300 and 600 LPM, a 1750 LPM foam barrel, aqua foam nozzles in 63 mm and 75 mm and a high expansion foam generator. HD Fire's Varsha self inducting foam nozzles, some UL Listed, are made to fit monitors. Fire monitors themselves are now listed on their own product type page.

Frequently asked questions

What is the difference between a branch pipe and a nozzle?
A branch pipe is the rigid pipe that connects to the end of a fire hose and carries the nozzle, which shapes the water into a jet, spray or fog. Many nozzles, such as triple purpose, hose reel and pistol grip nozzles, also let the user stop and start the flow at the nozzle.
Which branch pipe fits a 63 mm hydrant hose?
Any branch pipe with a 63 mm male instantaneous inlet that matches your hose coupling. Kartar Valves and Minimax make theirs to IS 903 with the ISI mark, Aaag's short branch pipe is ISI approved, and the Savemax stainless steel branch pipe fits standard 63 mm RRL hose couplings.
What does a triple purpose or fog nozzle do?
A triple purpose nozzle gives a jet, a spray or shut off from one nozzle, and Aaag's triple action nozzle to IS 2871 is rated 500 LPM at 7 bar. A fog nozzle to IS 952 switches between a solid jet and a dense fog of fine droplets that absorb heat and turn to steam.
What is a selectable flow or constant pressure nozzle?

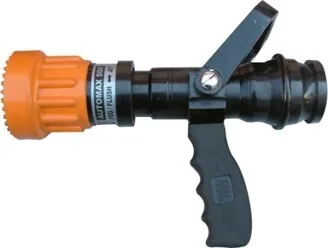

On a selectable flow nozzle the user picks the flow, for example 150 to 600 LPM at 7 bar on Aaag's Select-O-Flow or 13 to 60 GPM on New Age's SUPERfire. A constant pressure nozzle, such as Aaag's Automax 500 or New Age's RAPIDfire, adjusts its outlet to hold the pressure and reach as the flow changes.
Which nozzle suits a first aid hose reel?
Use a nozzle sized to the reel hose: Aaag lists 19 mm and 25 mm inlets, Minimax a 20 mm nozzle crimped to the hose, Kartar Valves 3/4 inch shut off nozzles in PVC or brass, and Balaji Fire Safety 20 mm and 25 mm shut off nozzles.
Does FPS supply and service branch pipes and nozzles?
Yes. FPS supplies, installs and maintains branch pipes, nozzles and foam branch pipes in Bhopal and across MP, and prices are on request: call or WhatsApp +91 92440 89060.
