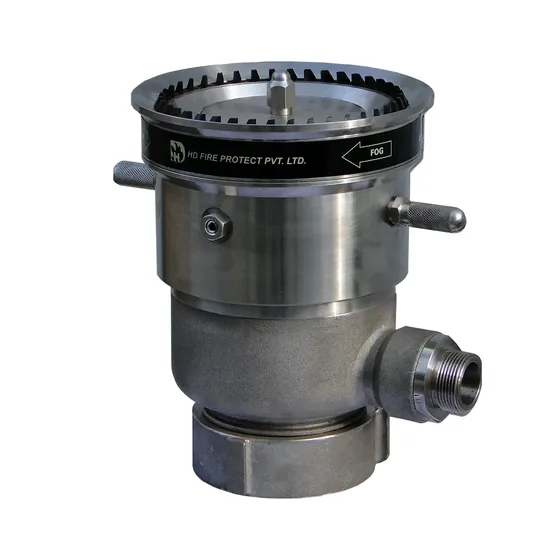

Dealer for HD FireA water cum foam monitor nozzle that is self-inducting and non-aspirating, with a 2.5 inch BSP swivel female inlet and a single fixed flow set between 1500 and 2650 lpm (400 to 700 gpm).
| Specification | Details |
|---|---|
| NOZZLE FLOW RANGE | As per Table-I |
| WATER INLET CONNECTION | Swivel female 2 ½” BSP |
| FOAM CONCENTRATE INLET CONNECTION | Female 1¼ BSP |
| INDUCTION | 3% |
| PICK UP TUBE | 3.0 mtrs. long clear PVC with SS dip tube |
| MATERIAL OF CONSTRUCTION | Bronze / Stainless Steel |
| MAXIMUM WORKING PRESSURE | 12 Bar (175 PSI) |
| JET & SPRAY ANGLE | With Spinning teeth 100 degree angle |
| WEIGHT (Approx) | Bronze material - 12.7Kg Stainless steel - 12.2Kg |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
A handline nozzle for fire hoses, made of hard anodized aluminium with stainless steel spinning teeth and a black finish. It works at 3.5 to 7 bar (50 to 100 psi) and is offered with NH, BS336 or Storz inlet connections.
Heavy duty bronze nozzles that throw a solid water stream from a monitor, in three fixed flows of 1900, 2650 and 3785 lpm (500, 700 and 1000 gpm). They are FM Approved.
A heavy duty fixed gallonage monitor nozzle with a 2.5 inch BSP swivel female inlet, factory set for a flow between 1500 and 2850 lpm (400 to 750 gpm). It changes from straight stream to wide fog while flowing and works as a water nozzle or a non-aspirating foam nozzle.
A fixed gallonage monitor nozzle with a 3 inch BSP swivel female inlet, factory set for a flow between 1500 and 3030 lpm (400 to 800 gpm). It is FM Approved for water application and made in bronze, stainless steel or hard anodized aluminium with stainless steel internals.
A bronze fixed gallonage monitor nozzle with stainless steel internals, factory set for 500, 750 or 1000 gpm. It is UL Listed with the HD VAJRA 331 monitor and the VAJRA331-S oscillating monitor.
A fixed gallonage monitor nozzle with a 4 inch BSP swivel female inlet, factory set for a flow between 3030 and 7575 lpm (800 to 2000 gpm). It is FM Approved for water application and made in bronze, stainless steel or hard anodized aluminium with stainless steel internals.
Sizes: 63 mm
A branch pipe supplied with its nozzle, made to IS 903 with the ISI mark, in gunmetal or stainless steel. Size 63 mm.
Sizes: 3/4"
Shut off nozzles that let the operator open and close the water flow at the hose end. The PVC version is K914-P and the brass version with a 1/2 inch ball valve is K914-B, both with a 3/4 inch connection.
Sizes: 15 mm, 20 mm, 25 mm
Short solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.
Sizes: 15 mm, 20 mm, 25 mm
Long solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.
Short branch pipe for hydrant hoses with a 63 mm instantaneous male inlet and a male threaded outlet carrying a 20 mm bore hexagonal base nozzle. Made to IS:903 and ISI marked, with a buffed finish.
20 mm hose reel nozzle hydraulically crimped to the hose with a metal crimp. It works at 10 bar and is available in ABS or gunmetal versions.
