New Age Short Branch Pipe, Solid Jet
Sizes: 15 mm, 20 mm, 25 mm
Short solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.

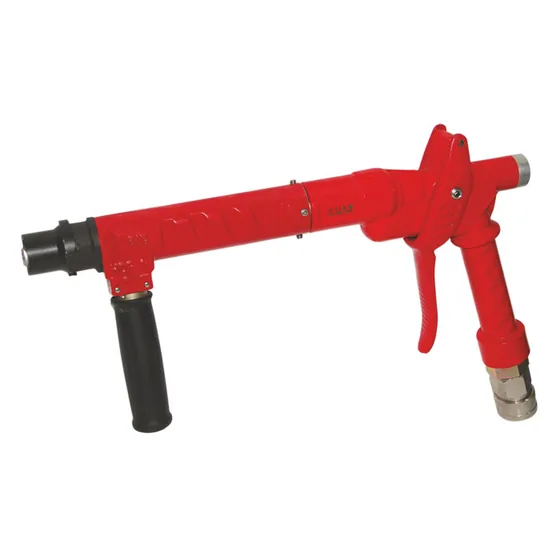

Supplier for New AgeNew Age HAWKfire High Pressure Pistol Grip Nozzle
High pressure pistol grip nozzle for use up to 40 bar, with selectable flow settings, for example 40 GPM (150 LPM) at 580 psi (40 bar).
- High pressure use up to 40 bar
- Selectable gallonage with multiple flow settings
- Ball valve for flow control
- Straight stream to dense fog, and flush without shutting off
- Stainless steel spinning teeth, anti slip rubber grip
- 3/4 inch BSP female inlet
Specifications
Specifications
| Specification | Details | Details | Details | Details |
|---|---|---|---|---|
| Series | HF | HF | HF | HF |
| Inlet | A | 3/4” BSP(F) | B | 1” BSP(F) | ||
| Style | 1 | Trigger Control with Inlet in Pistol Grip | 1 | Trigger Control with Inlet in Pistol Grip | 1 | Trigger Control with Inlet in Pistol Grip | 1 | Trigger Control with Inlet in Pistol Grip |
| Flow Range | 4K | 40 GPM (150 LPM) @ 580 PSI (40 Bar) | 4L | 53 GPM (200 LPM) @ 580 PSI (40 Bar) | 4M | 5-10-24-40 GPM @ 580 PSI (40 Bar) | 4N | 40 GPM (150 LPM) @ 580 PSI (40 Bar) with piercing Tip |
| Fog Teeth | SP | SPINNING POLYMIDE | SM | SPINNING STAINLESS STEEL | MR | MOULDED RUBBER |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
More New Age Branch Pipes and Nozzles
New Age Long Branch Pipe, Solid Jet
Sizes: 15 mm, 20 mm, 25 mm
Long solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.
New Age 3-Position Nozzle, Jet, Spray and Shut Off
Sizes: 12 mm, 16 mm, 20 mm
Three position nozzle for jet, spray and shut off, in chrome plated gunmetal or PVC, with 12 mm, 16 mm or 20 mm bores.
New Age Triple Purpose Nozzle
Triple purpose jet, spray and shut off nozzle in gunmetal, aluminium alloy or stainless steel, in natural polish or chrome plated finish.
New Age Navy Diffuser Nozzle
Jet, spray and shut off nozzle of the navy diffuser type, in gunmetal, aluminium alloy or stainless steel, with a wide choice of inlets.
New Age Navy Diffuser Mini Nozzle
Smaller navy diffuser jet, spray and shut off nozzle in aluminium alloy or stainless steel, in natural polish or hard anodised finish.
Branch Pipes and Nozzles from other brands
Kartar Valves
Kartar Valves Branch Pipe with Nozzle, IS 903, 63 mm (K903)
Sizes: 63 mm
A branch pipe supplied with its nozzle, made to IS 903 with the ISI mark, in gunmetal or stainless steel. Size 63 mm.
Kartar Valves
Kartar Valves Shut Off Nozzle, PVC (K914-P) or Brass with Ball Valve (K914-B)
Sizes: 3/4"
Shut off nozzles that let the operator open and close the water flow at the hose end. The PVC version is K914-P and the brass version with a 1/2 inch ball valve is K914-B, both with a 3/4 inch connection.
HD Fire
HD Fire Handline Fire Hose Nozzle, Model CG, Hard Anodized Aluminium
A handline nozzle for fire hoses, made of hard anodized aluminium with stainless steel spinning teeth and a black finish. It works at 3.5 to 7 bar (50 to 100 psi) and is offered with NH, BS336 or Storz inlet connections.
HD Fire
HD Fire Varsha HF30 Self-Inducting Foam Nozzle, 2.5 inch
A water cum foam monitor nozzle that is self-inducting and non-aspirating, with a 2.5 inch BSP swivel female inlet and a single fixed flow set between 1500 and 2650 lpm (400 to 700 gpm).
Minimax
Minimax Short Branch Pipe, 63 mm Inlet with 20 mm Nozzle (IS:903)
Short branch pipe for hydrant hoses with a 63 mm instantaneous male inlet and a male threaded outlet carrying a 20 mm bore hexagonal base nozzle. Made to IS:903 and ISI marked, with a buffed finish.
Minimax
Minimax Hose Reel Nozzle, 20 mm, ABS or Gunmetal
20 mm hose reel nozzle hydraulically crimped to the hose with a metal crimp. It works at 10 bar and is available in ABS or gunmetal versions.
