New Age Short Branch Pipe, Solid Jet
Sizes: 15 mm, 20 mm, 25 mm
Short solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.

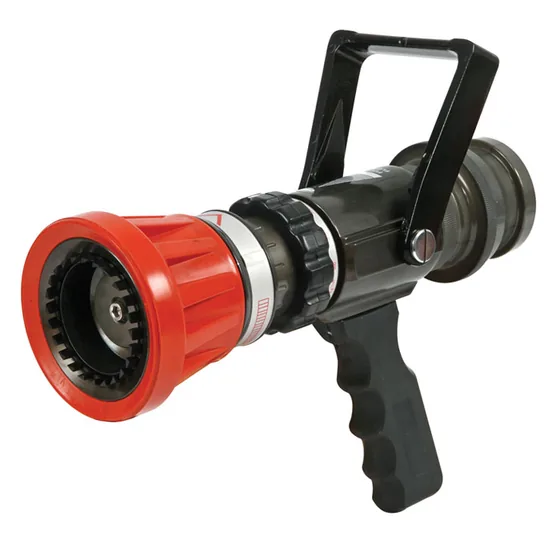

Supplier for New AgeNew Age SUPERfire Selectable Gallonage Pistol Grip Nozzle
Hard anodised aluminium pistol grip nozzle with selectable flows of 13, 25, 40 or 60 GPM at 75 psi (5 bar), from straight stream to wide fog.
- Selectable gallonage: 13, 25, 40 or 60 GPM at 75 psi (5 bar)
- Automatic pressure control and low back pressure
- Straight stream to wide fog, and flush without shutting off
- Moulded rubber bumper with flexible fog teeth
- Hard anodised aluminium alloy with pistol grip
- 1 inch NST female inlet
Specifications
Specifications
| Specification | Details | Details | Details | Details | Details | Details | Details | Details | Details |
|---|---|---|---|---|---|---|---|---|---|
| Series | SF | SF | SF | SF | SF | SF | SF | SF | SF |
| Inlet | A | 1” NST(F) | B | 1.5” NST(F) | C | 2.5” NST(F) | D | 1” BSPT(F) | E | 1.5” BSPT(F) | F | 2.5” BSPT(F) | G | 1” STORZ | H | 1.5” STORZ | I | 2.5” STORZ |
| Style | 1 | One Piece Nozzle with Control Valve | 1 | One Piece Nozzle with Control Valve | 2 | One Piece Nozzle with Control Valve and Pistol Grip | 2 | One Piece Nozzle with Control Valve and Pistol Grip | 3 | Two Piece Nozzle with Tip Control Valve | 3 | Two Piece Nozzle with Tip Control Valve | 4 | Two Piece Nozzle with Tip Control Valve and Pistol Grip | 4 | Two Piece Nozzle with Tip Control Valve and Pistol Grip | 4 | Two Piece Nozzle with Tip Control Valve and Pistol Grip |
| Flow Range | 5K | 13-25-40-60 GPM @ 75 PSI (5 Bar) | 5L | 30-60-95-125 GPM @ 75 PSI (5 Bar) | 5M | 30-60-95-125-150-200 GPM @ 75 PSI (5 Bar) | 5N | 95-125-200-250 GPM @ 75 PSI (5 Bar) | 7K | 13-25-40-60 GPM @ 100 PSI (7 Bar) | 7L | 30-60-95-125 GPM @ 100 PSI (7 Bar) | 7M | 30-60-95-125-200 GPM @ 100 PSI (7 Bar) | 7N | 95-125-200-250 GPM @ 100 PSI (7 Bar) | |
| Fog Teeth | SP | SPINNING POLYMIDE | SM | SPINNING STAINLESS STEEL | MR | MOULDED RUBBER |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
