New Age Short Branch Pipe, Solid Jet
Sizes: 15 mm, 20 mm, 25 mm
Short solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.

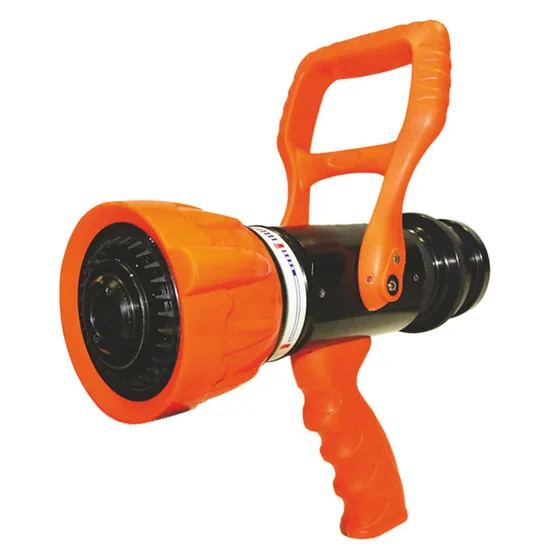

Supplier for New AgeNew Age CONfire Dual Pressure Combination Nozzle
Dual pressure combination pistol grip nozzle that keeps the same performance in its low pressure emergency mode, rated at a 4 bar nozzle pressure.
- Dual pressure design: same performance at low pressure in emergency mode
- Nozzle pressure 4 bar
- Straight stream to wide fog, and flush without shutting off
- Sliding valves for turbulence free flow
- Hard anodised body, rubber bumper and pistol grip
- Inlets: 2.5 inch male instantaneous, Storz, or BSP, NH or NST threads
Specifications
Specifications
| Specification | Details | Details | Details | Details | Details | Details | Details | Details | Details | Details | Details | Details | Details | Details | Details | Details | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nozzle Pressure | 4 bar | 4 bar | 5 bar | 5 bar | 7 bar | 7 bar | 8 bar | 8 bar | |||||||||
| Operting Mode | Standard | Emergency | Standard | Emergency | Standard | Emergency | Standard | Emergency | |||||||||
| Flow Rate LPM | 280 | 550 | 350 | 675 | 700 | 850 | 800 | 960 | |||||||||
| Spray Angle Degree | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | |||||||||
| Series | CF | CF | CF | CF | CF | CF | CF | CF | CF | ||||||||
| Inlet | A | 1” NST(F) | B | 1.5” NST(F) | C | 2.5” NST(F) | D | 1” BSPT(F) | E | 1.5” BSPT(F) | F | 2.5” BSPT(F) | G | 1” STORZ | H | 1.5” STORZ | I | 2.5” STORZ | ||||||||
| Style | 1 | One Piece Nozzle with Control Valve | 1 | One Piece Nozzle with Control Valve | 2 | One Piece Nozzle with Control Valve and Pistol Grip | 2 | One Piece Nozzle with Control Valve and Pistol Grip | 3 | Two Piece Nozzle with Tip Control Valve | 3 | Two Piece Nozzle with Tip Control Valve | 4 | Two Piece Nozzle with Tip Control Valve and Pistol Grip | 4 | Two Piece Nozzle with Tip Control Valve and Pistol Grip | 4 | Two Piece Nozzle with Tip Control Valve and Pistol Grip | ||||||||
| Flow Range | Solid Bore Tip Size | 7K | 3/8” | 7L | 1/2” | 7M | 5/8” | 7N | 3/4” | 7O | 7/8” | 7P | 15/16” | 7Q | 1” | ||||||||||
| Flow Range | Fog Flow | 60 GPM (230 LPM) | 60 GPM (230 LPM) | 60 GPM (230 LPM) | 135 (510 LPM) | 135 (510 LPM) | 135 (510 LPM) | 135 (510 LPM | ||||||||||
| Fog Teeth | SP | SPINNING POLYMIDE | SM | SPINNING STAINLESS STEEL | MR | MOULDED RUBBER |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
