New Age Short Branch Pipe, Solid Jet
Sizes: 15 mm, 20 mm, 25 mm
Short solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.

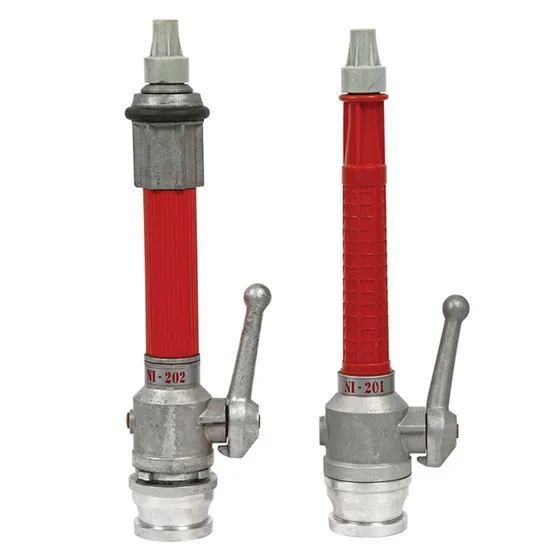

Supplier for New AgeNew Age Hand Controlled Jet and Spray Nozzle
Hand controlled jet, spray and shut off nozzle in aluminium alloy with a PVC tip and body, natural finish.
- Jet, spray and shut off
- Aluminium alloy with PVC nozzle tip and body
- Inlets: 2.5 inch male instantaneous or BSP, NPT or NH threads
- Operating pressure 10 bar
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| Flow (LPM) @ 7 bar | 150 LPM | 450 LPM |
| Type | Jet, Spray, Shutoff | Jet-Spray-Shutoff with Water Curtain |
| Material of Construction | Aluminum Alloy with PVC Nozzle tip and body | Aluminum Alloy with PVC Nozzle tip and body |
| Available Inlet Sizes | 2.5” Male Inst 2.5” BSP / NPT / NH Threads | 2.5” Male Inst 2.5” BSP / NPT / NH Threads |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
