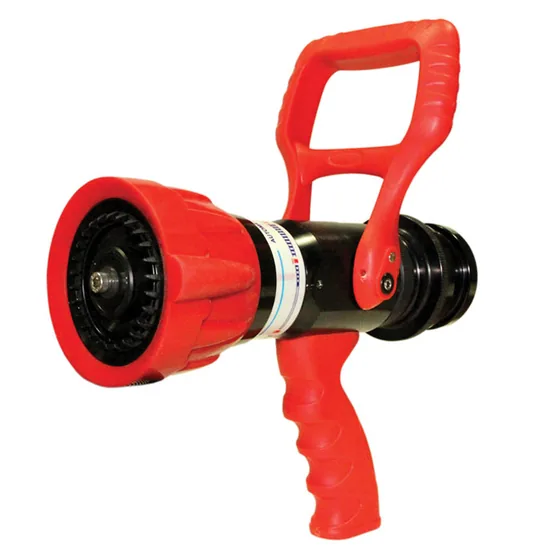

Supplier for New AgeNew Age RAPIDfire Constant Pressure Pistol Grip Nozzle
NFPA 1964 compliant constant pressure pistol grip nozzle for 60 to 180 GPM at 55 psi (3.8 bar), able to give a solid jet and fog together or separately.
- Constant pressure, 60 to 180 GPM at 55 psi (3.8 bar)
- Solid jet and fog at the same time or separately
- Ball valve for flow control, low back pressure
- Straight stream to wide fog, and flush without shutting off
- Hard anodised body, rubber pistol grip
- NFPA 1964 compliant
Standards and approvals: NFPA 1964
Specifications
Specifications
| Specification | Details | Details | Details | Details | Details | Details | Details | Details | Details |
|---|---|---|---|---|---|---|---|---|---|
| Series | SF | SF | SF | SF | SF | SF | SF | SF | SF |
| Inlet | A | 1” NST(F) | B | 1.5” NST(F) | C | 2.5” NST(F) | D | 1” BSPT(F) | E | 1.5” BSPT(F) | F | 2.5” BSPT(F) | G | 1” STORZ | H | 1.5” STORZ | I | 2.5” STORZ |
| Style | 1 | One Piece Nozzle with Control Valve | 1 | One Piece Nozzle with Control Valve | 2 | One Piece Nozzle with Control Valve and Pistol Grip | 2 | One Piece Nozzle with Control Valve and Pistol Grip | 3 | Two Piece Nozzle with Tip Control Valve | 3 | Two Piece Nozzle with Tip Control Valve | 4 | Two Piece Nozzle with Tip Control Valve and Pistol Grip | 4 | Two Piece Nozzle with Tip Control Valve and Pistol Grip | 4 | Two Piece Nozzle with Tip Control Valve and Pistol Grip |
| Flow Range | 5K | 60-180 GPM @ 55 PSI (3.8 Bar) | 5L | 95-225 GPM @ 55 PSI (3.8 Bar) | 5K | 10-100 GPM @ 75 PSI (5 Bar) | 5L | 60-200 GPM @ 75 PSI (5 Bar) | 5M | 90-250 GPM @ 75 PSI (5 Bar) | 7K | 10-125 GPM @ 100 PSI (7 Bar) | 7L | 60-200 GPM @ 100 PSI (7 Bar) | 7M | 90-250 GPM @ 100 PSI (7 Bar) | |
| Fog Teeth | SP | SPINNING POLYMIDE | SM | SPINNING STAINLESS STEEL | MR | MOULDED RUBBER |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
