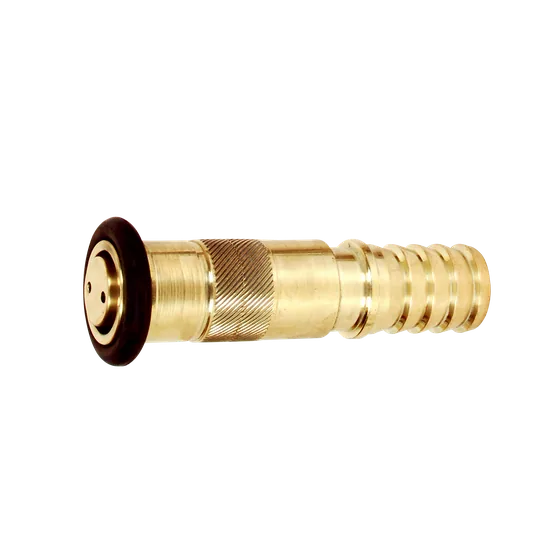

Supplier for AaagA metal hose reel nozzle that gives a concentrated jet or a wide angle spray and can be shut off, for 19 mm or 25 mm hose.
| Model | Pressure (service / max / test) |
|---|---|
| AAAG G126B | 7 Bar |
| Specification | AAAG G126B |
|---|---|
| Model | AAAG G126B |
| Material Optional | Gun Metal - GM Stainless Steel - SS |
| Size | 19mm / 25 mm serrated Inlet |
| Test Pressure | 21 Bar |
| Discharge Pattern | Jet, Spray, Shut off |
| Flow Rate | 27LPM @ 3 Bar (19mm Inlet) 32LPM @ 3 Bar (25mm Inlet) |
| Finish | Natural Finish / Chrome Plated for GM |
Specifications as published by Aaag. Please confirm the exact model with us before ordering.
Sizes: 63mm Male Instantaneous
A basic straight tip branch pipe used by most fire brigades, giving a concentrated jet with long reach. ISI approved, in gunmetal, with stainless steel or aluminium alloy as options.
Sizes: 63mm Male Instantaneous
The stainless steel version of Aaag's ISI approved short branch pipe, with interchangeable smooth bore tips for a concentrated jet. Aluminium alloy is also offered.
Sizes: 63mm Male Instantaneous
A long straight tip branch pipe for fire brigade use, giving a concentrated jet with long reach. Aaag lists it as a copper branch pipe, with gunmetal, stainless steel or aluminium alloy material options in its table.
Sizes: 63mm Male Instantaneous
A branch pipe with a shut off control, used mostly by industrial and municipal fire brigades, made to IS 952. It gives a concentrated jet or a curtain type spray.
A general purpose nozzle for fire brigades that gives a hollow jet, a strong spray or shut off by twisting the bumper. Made to IS 2871 and listed by Aaag as ISI certified, rated 500 LPM at 7 bar.
The stainless steel triple action nozzle, giving a hollow jet, spray or shut off, made to IS 2871 and listed by Aaag as ISI certified, rated 500 LPM at 7 bar.
Sizes: 63 mm
A branch pipe supplied with its nozzle, made to IS 903 with the ISI mark, in gunmetal or stainless steel. Size 63 mm.
Sizes: 3/4"
Shut off nozzles that let the operator open and close the water flow at the hose end. The PVC version is K914-P and the brass version with a 1/2 inch ball valve is K914-B, both with a 3/4 inch connection.
Sizes: 15 mm, 20 mm, 25 mm
Short solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.
Sizes: 15 mm, 20 mm, 25 mm
Long solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.
A handline nozzle for fire hoses, made of hard anodized aluminium with stainless steel spinning teeth and a black finish. It works at 3.5 to 7 bar (50 to 100 psi) and is offered with NH, BS336 or Storz inlet connections.
A water cum foam monitor nozzle that is self-inducting and non-aspirating, with a 2.5 inch BSP swivel female inlet and a single fixed flow set between 1500 and 2650 lpm (400 to 700 gpm).
