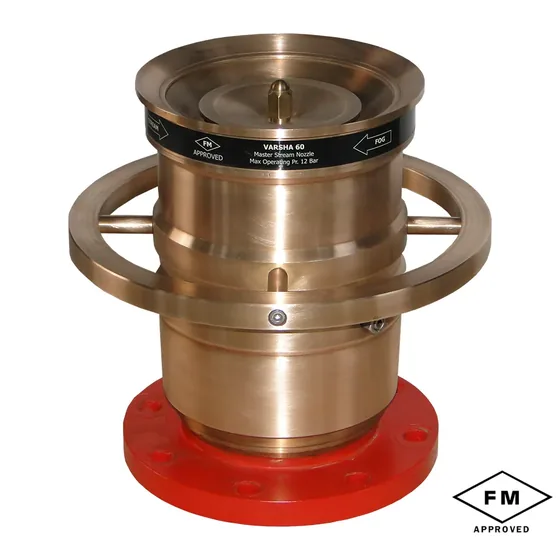

Dealer for HD FireA high flow fixed gallonage monitor nozzle with a 150 mm (6 inch) flanged inlet to ANSI B16.5, factory set for a flow between 5680 and 12500 lpm (1500 to 3300 gpm). It is FM Approved for water application.
Standards and approvals: FM Approved
| Specification | Details |
|---|---|
| NOZZLE FLOW RANGE | As per Table - I |
| WATER INLET CONNECTION | 6” Flanged (ANSI B16.5) |
| MATERIAL OF CONSTRUCTION | Bronze / Stainless Steel with Stainless Steel internals |
| JET SPRAY PATTERN | About 120 degree angle |
| MAXIMUM SERVICE PRESSURE | 12 Bar (175 PSI) |
| WEIGHT (Approx) | Bronze Nozzle - 47 Kg SS Nozzle - 46 Kg |
| APPROVAL | FM Approved |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
A handline nozzle for fire hoses, made of hard anodized aluminium with stainless steel spinning teeth and a black finish. It works at 3.5 to 7 bar (50 to 100 psi) and is offered with NH, BS336 or Storz inlet connections.
Heavy duty bronze nozzles that throw a solid water stream from a monitor, in three fixed flows of 1900, 2650 and 3785 lpm (500, 700 and 1000 gpm). They are FM Approved.
A heavy duty fixed gallonage monitor nozzle with a 2.5 inch BSP swivel female inlet, factory set for a flow between 1500 and 2850 lpm (400 to 750 gpm). It changes from straight stream to wide fog while flowing and works as a water nozzle or a non-aspirating foam nozzle.
A fixed gallonage monitor nozzle with a 3 inch BSP swivel female inlet, factory set for a flow between 1500 and 3030 lpm (400 to 800 gpm). It is FM Approved for water application and made in bronze, stainless steel or hard anodized aluminium with stainless steel internals.
A bronze fixed gallonage monitor nozzle with stainless steel internals, factory set for 500, 750 or 1000 gpm. It is UL Listed with the HD VAJRA 331 monitor and the VAJRA331-S oscillating monitor.
A fixed gallonage monitor nozzle with a 4 inch BSP swivel female inlet, factory set for a flow between 3030 and 7575 lpm (800 to 2000 gpm). It is FM Approved for water application and made in bronze, stainless steel or hard anodized aluminium with stainless steel internals.
Sizes: 63 mm
A water monitor for directing a heavy stream of water onto large fires from a distance. Size 63 mm, with an aluminium nozzle (K911 AL) or a gunmetal nozzle (K911 GM).
Sizes: 63mm, 75mm, 100mm
ISI marked water jet monitor to IS 8442 for fixed installation, in hot dip galvanised carbon steel seamless pipe, in 63 mm, 75 mm and 100 mm sizes.
Sizes: 100 MM, 150 MM
Long range monitor for fixed installation, in hot dip galvanised carbon steel seamless pipe, with 100 mm or 150 mm barrels.
Stand post monitor made from heavy duty carbon steel seamless pipe to ASTM A 106, hot dip galvanised, with a gunmetal nozzle. It turns 360 degrees, moves from +90 degrees to -45 degrees and is made as per IS:8442.
Sizes: 1750 LPM, 2580 LPM
A water monitor, a large flow nozzle aimed from its mounting rather than held by hand, offered in 1750 LPM and 2580 LPM ratings.
Sizes: 1750 LPM, 2580 LPM
A foam monitor for delivering foam at a large flow, offered in 1750 LPM and 2580 LPM ratings.
