New Age Long Range Monitor, Carbon Steel
Sizes: 100 MM, 150 MM
Long range monitor for fixed installation, in hot dip galvanised carbon steel seamless pipe, with 100 mm or 150 mm barrels.

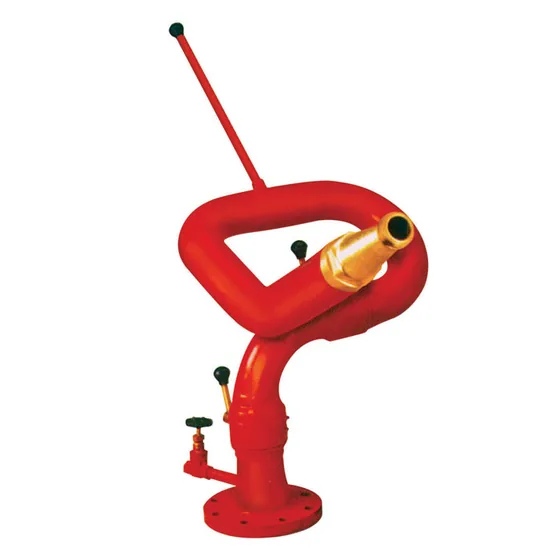

Supplier for New AgeNew Age Water Jet Monitor, Carbon Steel, ISI Marked
ISI marked water jet monitor to IS 8442 for fixed installation, in hot dip galvanised carbon steel seamless pipe, in 63 mm, 75 mm and 100 mm sizes.
- ISI marked to IS 8442
- Heavy duty carbon steel seamless pipe, hot dip galvanised
- Sizes 63 mm, 75 mm and 100 mm
- Flanged inlet made to your dimensions
- Nozzle in aluminium alloy, stainless steel or gunmetal
- Optional trolley mounting with non return valves on the inlets
Standards and approvals: ISI Marked, IS : 8442 : 1977
Sizes: 63mm, 75mm, 100mm
Specifications
Specifications
| Specification | 63mm | 75mm | 100mm |
|---|---|---|---|
| Size | 63mm | 75mm | 100mm |
| Flow | 1750LPM | 2580LPM | 3500LPM |
| Horizontal Jet @30deg. Elevation @ 7 Bar | 53 mtrs. | 60 mtrs. | 64 mtrs. |
| Horizontal Rotation | 360° | 360° | 360° |
| Vertical Rotation | +90° to -45° | +90° to -45° | +90° to -45° |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
More New Age Monitors and Monitor Nozzles
New Age Adjustable Flow Monitor, Stainless Steel, UL Listed
Sizes: 75 MM, 100 MM, 150 MM, 200 MM
UL Listed stainless steel monitor with UL Listed foam induction under UL Standard 162, for fixed installations needing high flow and long range straight streams, 75 mm to 200 mm.
New Age Fixed Flow Monitor, Stainless Steel, UL Listed
Sizes: 75 MM, 100 MM
UL Listed stainless steel fixed flow monitor with UL Listed foam induction under UL Standard 162, in 75 mm and 100 mm, for corrosive sites.
New Age Standpost Mounted Oscillating Monitor
Monitor with New Age's oscillating flange, which uses a water driven pelton wheel to sweep the stream through up to 270 degrees, for refineries, tank farms and other high risk areas.
New Age Tower (Elevated) Monitor
Monitor mounted on a tower riser about 10 m high, with full 360 degree rotation and elevation from 75 degrees below to 45 degrees above horizontal, worked through a cable mechanism.
New Age Trailer Mounted Monitor
Monitor on a towable trailer in heavy duty mild steel or stainless steel, with a manifold of inlets, stabilising jacks and a towing hook for a jeep or fire vehicle.
Fire Monitors and Monitor Nozzles from other brands
Kartar Valves
Kartar Valves Water Monitor, 63 mm, Aluminium or Gunmetal Nozzle (K911)
Sizes: 63 mm
A water monitor for directing a heavy stream of water onto large fires from a distance. Size 63 mm, with an aluminium nozzle (K911 AL) or a gunmetal nozzle (K911 GM).
HD Fire
HD Fire VARUN-443 Electric Remote Controlled Monitor, Stainless Steel, 4 inch
Sizes: 100mm (4”)
The stainless steel VARUN-443 monitor fitted with an electric motor, so it is aimed from a control panel instead of by hand. The basic monitor and nozzle are UL Listed, and HD names storage tanks, loading racks, jetties and terminals as typical uses.
HD Fire
HD Fire Monitor M (ISI), Galvanized Carbon Steel
A hand operated monitor with a hot dip galvanized carbon steel waterway and a fixed flow solid bore nozzle, carrying ISI certification. It is offered in 2.5, 3 and 4 inch sizes.
Minimax
Minimax Water / Hydrofoam Monitor, Stand Post Type (IS:8442)
Stand post monitor made from heavy duty carbon steel seamless pipe to ASTM A 106, hot dip galvanised, with a gunmetal nozzle. It turns 360 degrees, moves from +90 degrees to -45 degrees and is made as per IS:8442.
Savemax
Savemax Water Monitor (1750 and 2580 LPM)
Sizes: 1750 LPM, 2580 LPM
A water monitor, a large flow nozzle aimed from its mounting rather than held by hand, offered in 1750 LPM and 2580 LPM ratings.
Savemax
Savemax Aqua Foam Monitor (1750 and 2580 LPM)
Sizes: 1750 LPM, 2580 LPM
A foam monitor for delivering foam at a large flow, offered in 1750 LPM and 2580 LPM ratings.
