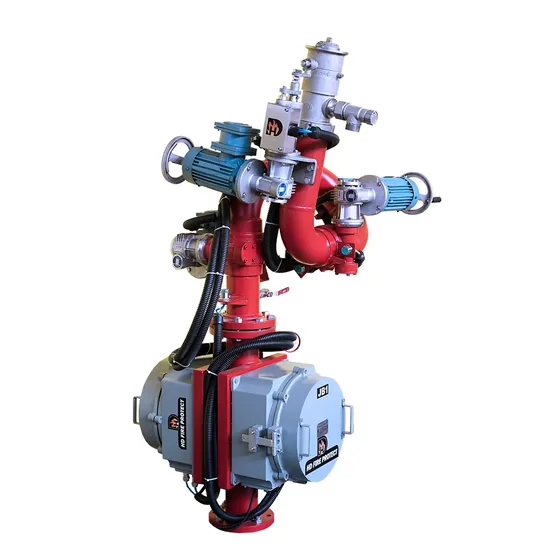

Dealer for HD FireHD Fire VARUN-443 Electric Remote Controlled Monitor, Stainless Steel, 4 inch
The stainless steel VARUN-443 monitor fitted with an electric motor, so it is aimed from a control panel instead of by hand. The basic monitor and nozzle are UL Listed, and HD names storage tanks, loading racks, jetties and terminals as typical uses.
- Stainless steel waterway, nominal size 100 mm (4 inch)
- Maximum operating pressure 12 bar (175 psi)
- 0 to 340° rotation and -45° to +85° elevation
- Electric motor and junction box in explosion proof or weatherproof versions
- Main control panel: explosion proof with push buttons, or weatherproof with joystick
- Fixed flow H4 or variable flow H4-V and H4-VJ nozzles for 500, 750 or 1000 gpm
Standards and approvals: UL Listed
Sizes: 100mm (4”)
Specifications
Specifications
| Specification | 100mm (4”) |
|---|---|
| Electric Motor, Junction Box | explosion proof or weatherproof |
| Main Control Panel | explosion proof with push button or weatherproof with joy stick |
| BASIC MONITOR MODEL | VARUN 443 |
| NOMINAL SIZE | 4 inch (100 mm) |
| MAX. SERVICE PRESSURE | 175 psi (12 bar) |
| BASIC NOZZLE MODEL | VARSHA HF4V VARSHA HF4VJ VARSHA HF50 (Refer Table-1) |
| FACTORY HYDRO TEST PRESSURE | 350 psi (25 bar) |
| MOTOR FOR HORIZONTAL, VERTICAL,JET TO FOG MOVEMENT | 3 Phase 415V, AC, Explosion Proof, Zone-1 GR IIA,IIB,IIC Standard Supply: PESO Approved Optional Supply: ATEX Approved |
| OPERATING TEMPERATURE | -5O To 65O Celsius |
| JUNCTION BOX | Explosion Proof, Zone-1, GR IIA, IIB, PESO Approved Cabling upto the Motors vide Fire Retardent Low Smoke Flexible Cables and Explosion Proof Cable Glands Optional: weather proof |
| STAND POST | Monitor supplied with 4 inch or 6 inch stand post,mounted with junction box, pre-cabled |
| MANUAL OVERIDE | Handwheel for emergency manual override provided |
| MONITOR ELEVATION | −45 deg to +85 deg |
| MONITOR ROTATION | 0 to 340 deg |
| JET & SPRAY | Jet & Spray adjustable electrically with manual override |
| NOZZLE THRUST REACTION IN KG | Flow in lpm x √pressure in kg/sq.cm x 0.0228 |
| APPROVAL* | Basic Monitor and Nozzle are UL Listed |
| FINISH | Red RAL 3001 standard supply |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
