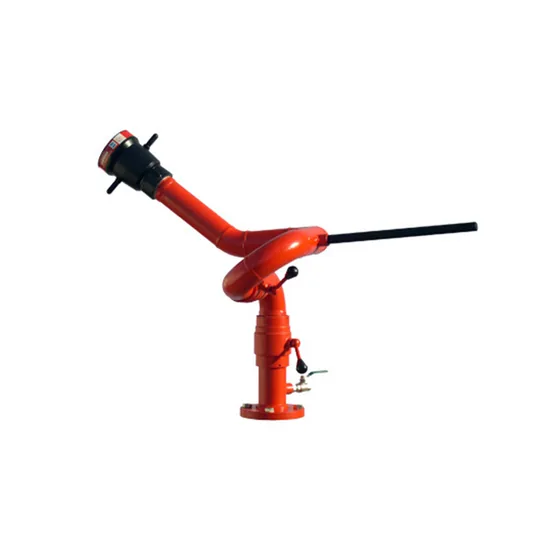

Dealer for HD FireA 2.5 inch manual monitor with a hot dip galvanized carbon steel waterway and bronze swivel joint. A worm gear moves it vertically and a handle with twist lock turns it horizontally.
Sizes: 63 mm (2.5″)
| Specification | 63 mm (2.5″) |
|---|---|
| MODEL | M 211 |
| NOMINAL SIZE | 65 MM (2.5”) |
| MAX. SERVICE PRESSURE | 12 Bar (175 PSI) |
| MAXIMUM FLOW | 600 GPM (2270 LPM) |
| FACTORY HYDROSTATIC TEST PRESSURE | 400 PSI (27.6 Bar) |
| SWIVEL JOINT | Bronze to IS 318/ASTM B62 with double row of Stainless Steel Ball Bearing and Grease Fittings |
| NOZZLE THRUST REACTION IN Kg. | Flow in LPM X √Pressure in Kg./sq.cm. 0.0228 |
| INLET CONNECTION | 2.5” or 3” or 4” (65 or 80 or 100 MM) Flange to ANSI B16.5 # 150, R.F. |
| OUTLET CONNECTION | 2.5” BSP (M) |
| MONITOR ELEVATION | 90 Deg. above horizontal & 45 Deg. below horizontal |
| MONITOR ROTATION | 360 Deg. continuous |
| MONITOR MOVEMENT | Handle with twist lock |
| FINISH | Red to RAL 3001 |
| WEIGHT (Approx) | 29 Kg |
| ORDERING INFORMATION | Specify Monitor Model and Inlet Flange Size |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
Sizes: 100mm (4”)
The stainless steel VARUN-443 monitor fitted with an electric motor, so it is aimed from a control panel instead of by hand. The basic monitor and nozzle are UL Listed, and HD names storage tanks, loading racks, jetties and terminals as typical uses.
A hand operated monitor with a hot dip galvanized carbon steel waterway and a fixed flow solid bore nozzle, carrying ISI certification. It is offered in 2.5, 3 and 4 inch sizes.
A corrosion resistant stainless steel manual monitor with a 2.5 inch waterway, built for fixed installation or for mounting on a trailer.
A 3 inch hot dip galvanized carbon steel monitor that one person can deploy, for fixed installation or trailer mounting. It is FM Approved with the VARSHA 40 master stream nozzle.
A corrosion resistant stainless steel version of the 3 inch manual monitor, epoxy painted red and FM Approved with the VARSHA 40 master stream nozzle. HD states that its single waterway and precision machined swivel joints reduce friction loss and improve jet reach.
Sizes: 100 mm (4″)
A 4 inch gear operated monitor with a hot dip galvanized carbon steel waterway and bronze swivel joint. It is FM Approved with the VARSHA 50 master stream nozzle and the NW 1000 solid bore nozzle.
Sizes: 63 mm
A water monitor for directing a heavy stream of water onto large fires from a distance. Size 63 mm, with an aluminium nozzle (K911 AL) or a gunmetal nozzle (K911 GM).
Sizes: 63mm, 75mm, 100mm
ISI marked water jet monitor to IS 8442 for fixed installation, in hot dip galvanised carbon steel seamless pipe, in 63 mm, 75 mm and 100 mm sizes.
Sizes: 100 MM, 150 MM
Long range monitor for fixed installation, in hot dip galvanised carbon steel seamless pipe, with 100 mm or 150 mm barrels.
Stand post monitor made from heavy duty carbon steel seamless pipe to ASTM A 106, hot dip galvanised, with a gunmetal nozzle. It turns 360 degrees, moves from +90 degrees to -45 degrees and is made as per IS:8442.
Sizes: 1750 LPM, 2580 LPM
A water monitor, a large flow nozzle aimed from its mounting rather than held by hand, offered in 1750 LPM and 2580 LPM ratings.
Sizes: 1750 LPM, 2580 LPM
A foam monitor for delivering foam at a large flow, offered in 1750 LPM and 2580 LPM ratings.
