A fire monitor is a fixed, trolley or trailer mounted nozzle that throws a large water or foam stream onto a big fire from a safe distance, at sites such as tank farms, refineries, loading areas and industrial plants. Fire Protection System supplies monitors, monitor nozzles and foam accessories from Kartar Valves, New Age, HD Fire, Minimax, Savemax, Aaag and Balaji Fire Safety in Bhopal and across Madhya Pradesh.
Sizes: 63 mm

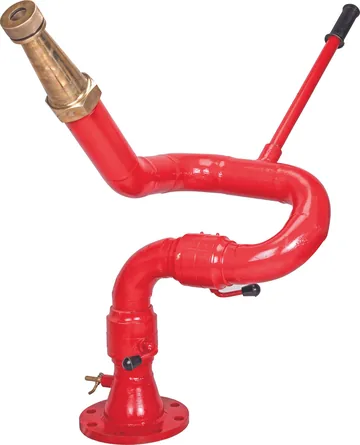

A water monitor for directing a heavy stream of water onto large fires from a distance. Size 63 mm, with an aluminium nozzle (K911 AL) or a gunmetal nozzle (K911 GM).
Sizes: 63mm, 75mm, 100mm

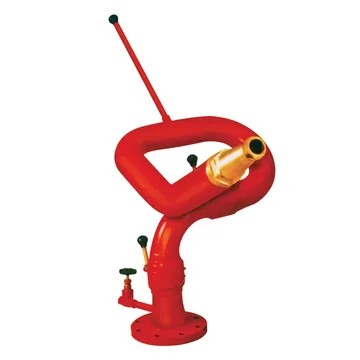

ISI marked water jet monitor to IS 8442 for fixed installation, in hot dip galvanised carbon steel seamless pipe, in 63 mm, 75 mm and 100 mm sizes.
Sizes: 100 MM, 150 MM

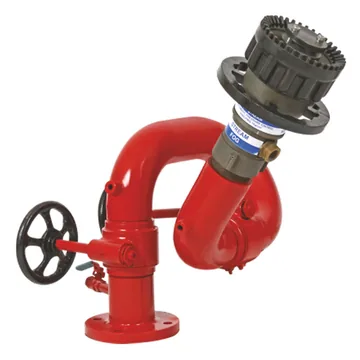

Long range monitor for fixed installation, in hot dip galvanised carbon steel seamless pipe, with 100 mm or 150 mm barrels.
Sizes: 75 MM, 100 MM, 150 MM, 200 MM
UL Listed stainless steel monitor with UL Listed foam induction under UL Standard 162, for fixed installations needing high flow and long range straight streams, 75 mm to 200 mm.
Sizes: 75 MM, 100 MM

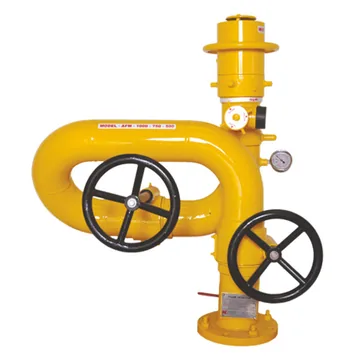

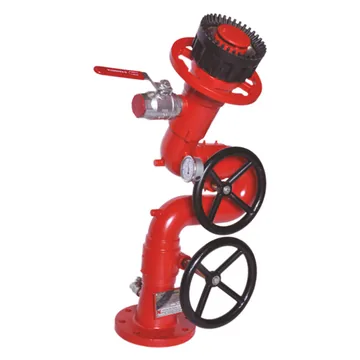

UL Listed stainless steel fixed flow monitor with UL Listed foam induction under UL Standard 162, in 75 mm and 100 mm, for corrosive sites.

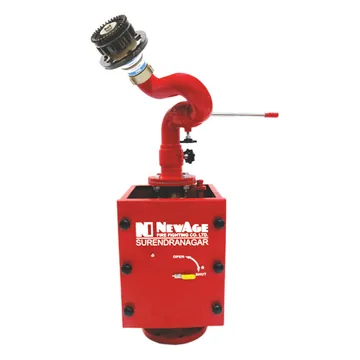

Monitor with New Age's oscillating flange, which uses a water driven pelton wheel to sweep the stream through up to 270 degrees, for refineries, tank farms and other high risk areas.

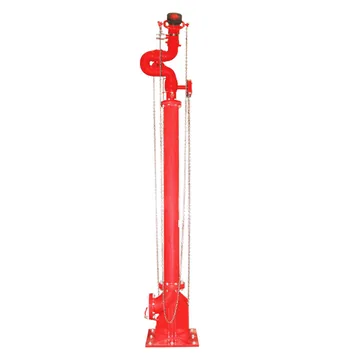

Monitor mounted on a tower riser about 10 m high, with full 360 degree rotation and elevation from 75 degrees below to 45 degrees above horizontal, worked through a cable mechanism.

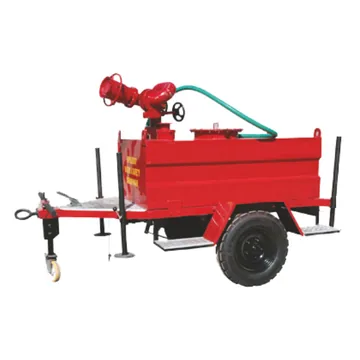

Monitor on a towable trailer in heavy duty mild steel or stainless steel, with a manifold of inlets, stabilising jacks and a towing hook for a jeep or fire vehicle.
Mild steel trolley monitor on solid rubber tyres that one person can move and operate, for remote, temporary or standby hazards, for flows up to 3500 LPM.

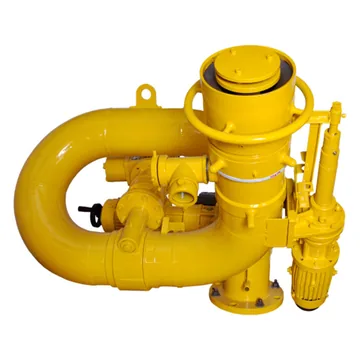

Remote controlled monitors in fully electric or hydraulic electric versions, run singly or several from one control panel.

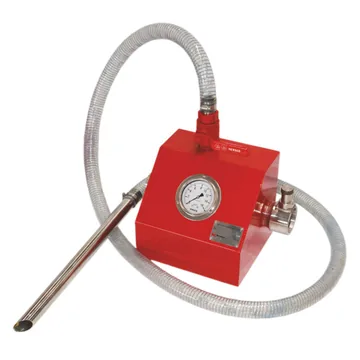

UL Listed venturi type device that feeds large volumes of foam concentrate from a safe location to a self inducting monitor nozzle, supplied with matched aqua foam nozzles.

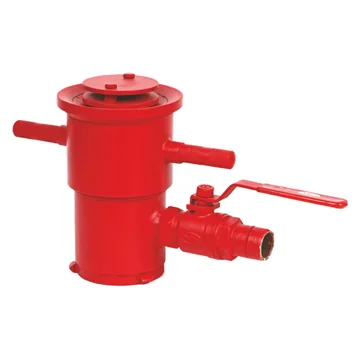

Self inducting, non aspirating foam monitor nozzle with a preset 3% or 6% induction, a spray angle up to 160 degrees and a 10 bar working pressure.

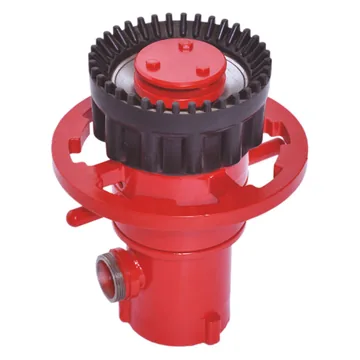

Self inducting, non aspirating foam monitor nozzle with teeth, a preset 3% induction and a spray angle up to 160 degrees, rated 10 bar.

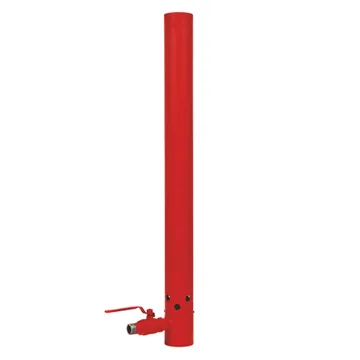

Foam barrel for monitors, with or without a built in foam inductor, giving 6 to 10 times foam expansion at up to 10 bar.

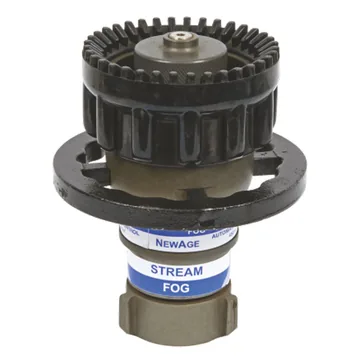

Monitor nozzle for jet and spray, with a spray angle up to 160 degrees, flanged or threaded inlets and a 10 bar working pressure.

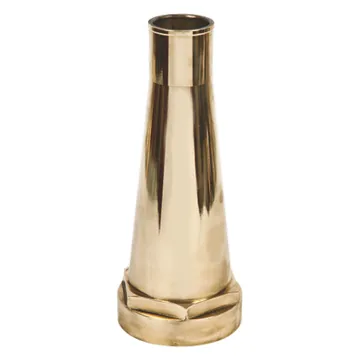

Straight jet monitor nozzle in a range of flow capacities, with flanged or threaded inlets and a 10 bar working pressure.

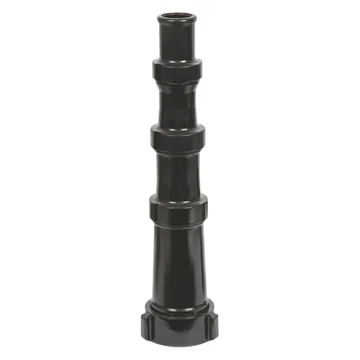

Lightweight anodised aluminium smooth bore nozzle with stacked tips, so the tip size can be changed quickly; suits ball shut off nozzles.
Sizes: 100mm (4”)
The stainless steel VARUN-443 monitor fitted with an electric motor, so it is aimed from a control panel instead of by hand. The basic monitor and nozzle are UL Listed, and HD names storage tanks, loading racks, jetties and terminals as typical uses.
A hand operated monitor with a hot dip galvanized carbon steel waterway and a fixed flow solid bore nozzle, carrying ISI certification. It is offered in 2.5, 3 and 4 inch sizes.
Sizes: 63 mm (2.5″)
A 2.5 inch manual monitor with a hot dip galvanized carbon steel waterway and bronze swivel joint. A worm gear moves it vertically and a handle with twist lock turns it horizontally.
A corrosion resistant stainless steel manual monitor with a 2.5 inch waterway, built for fixed installation or for mounting on a trailer.
A 3 inch hot dip galvanized carbon steel monitor that one person can deploy, for fixed installation or trailer mounting. It is FM Approved with the VARSHA 40 master stream nozzle.
A corrosion resistant stainless steel version of the 3 inch manual monitor, epoxy painted red and FM Approved with the VARSHA 40 master stream nozzle. HD states that its single waterway and precision machined swivel joints reduce friction loss and improve jet reach.
Sizes: 100 mm (4″)
A 4 inch gear operated monitor with a hot dip galvanized carbon steel waterway and bronze swivel joint. It is FM Approved with the VARSHA 50 master stream nozzle and the NW 1000 solid bore nozzle.
Cast bronze manual monitors with a 3 inch (80 mm) waterway for fixed installation or trailer units. VAJRA 331 is UL Listed as a foam monitor with Varsha40U and VarshaHF40U nozzles and FM Approved as a water monitor with the Varsha40 nozzle, while VAJRA 331-B is FM Approved.
A cast bronze manual monitor with a 4 inch (100 mm) waterway and fully enclosed gear. It is FM Approved with the VARSHA 50 nozzle for flows up to 7575 lpm (2000 gpm).
A VAJRA-331 monitor mounted on a water powered oscillating unit, so it sweeps its stream back and forth without wiring or hydraulic control. HD names tank farms, aircraft hangars, offshore sites, refineries, chemical plants and heliports as uses.
A low profile stainless steel manual foam monitor with a 4 inch (100 mm) waterway. It works with fixed flow or variable flow nozzles and is available with or without a jet ratio controller (JRC).
A low profile 6 inch monitor in hot dip galvanized carbon steel for installations that need high flows and long range straight streams, operated by a single fire fighter. It is FM Approved at 1500, 1750, 2000, 2100 and 2200 gpm.
A low profile stainless steel monitor with a 6 inch waterway and bronze swivel joint, for fixed installations that need high flows and long range straight streams. One fire fighter can operate it by hand.
A low profile stainless steel foam monitor with a 6 inch waterway, UL Listed with AFFF 3% foam concentrate. It is used with fixed or variable flow Varsha nozzles, with or without a jet ratio controller (JRC).
Heavy duty bronze nozzles that throw a solid water stream from a monitor, in three fixed flows of 1900, 2650 and 3785 lpm (500, 700 and 1000 gpm). They are FM Approved.
A heavy duty fixed gallonage monitor nozzle with a 2.5 inch BSP swivel female inlet, factory set for a flow between 1500 and 2850 lpm (400 to 750 gpm). It changes from straight stream to wide fog while flowing and works as a water nozzle or a non-aspirating foam nozzle.
A fixed gallonage monitor nozzle with a 3 inch BSP swivel female inlet, factory set for a flow between 1500 and 3030 lpm (400 to 800 gpm). It is FM Approved for water application and made in bronze, stainless steel or hard anodized aluminium with stainless steel internals.
A bronze fixed gallonage monitor nozzle with stainless steel internals, factory set for 500, 750 or 1000 gpm. It is UL Listed with the HD VAJRA 331 monitor and the VAJRA331-S oscillating monitor.
A fixed gallonage monitor nozzle with a 4 inch BSP swivel female inlet, factory set for a flow between 3030 and 7575 lpm (800 to 2000 gpm). It is FM Approved for water application and made in bronze, stainless steel or hard anodized aluminium with stainless steel internals.
A high flow fixed gallonage monitor nozzle with a 150 mm (6 inch) flanged inlet to ANSI B16.5, factory set for a flow between 5680 and 12500 lpm (1500 to 3300 gpm). It is FM Approved for water application.

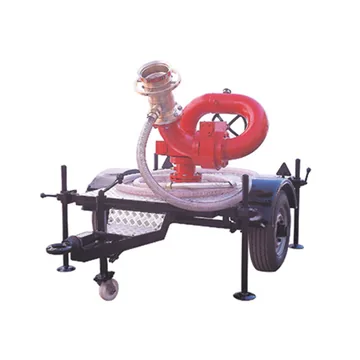

A rugged two wheel trailer carrying a 3, 4 or 6 inch monitor with its water supply manifold, moved by two people or towed behind a light truck or jeep. Water comes from the hydrant network through a coupling at the rear.

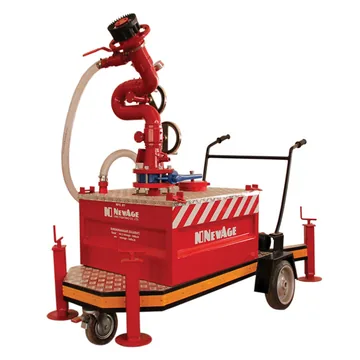

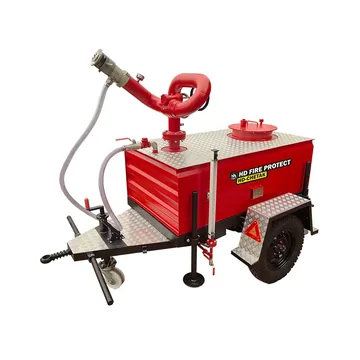

A 2 or 4 wheel trailer with a storage tank and a monitor mounted on the tank, which two people can move or a light truck or jeep can tow. The monitor can be manual or remote controlled and is UL Listed or FM Approved.
A hand moved trolley on two solid rubber wheels that carries a 2.5 or 3 inch monitor, fed through a water supply manifold with instantaneous couplings.
Stand post monitor made from heavy duty carbon steel seamless pipe to ASTM A 106, hot dip galvanised, with a gunmetal nozzle. It turns 360 degrees, moves from +90 degrees to -45 degrees and is made as per IS:8442.
Sizes: 1750 LPM, 2580 LPM

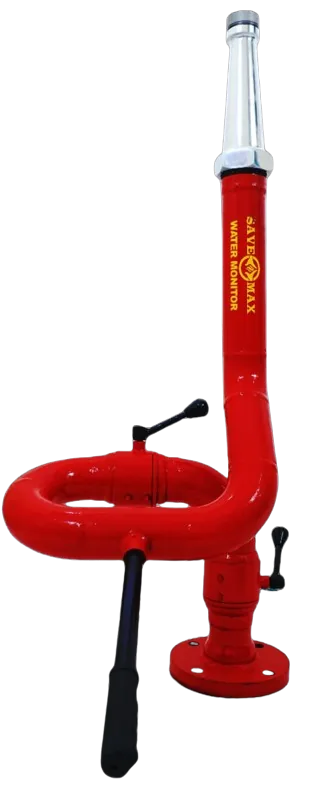

A water monitor, a large flow nozzle aimed from its mounting rather than held by hand, offered in 1750 LPM and 2580 LPM ratings.
Sizes: 1750 LPM, 2580 LPM

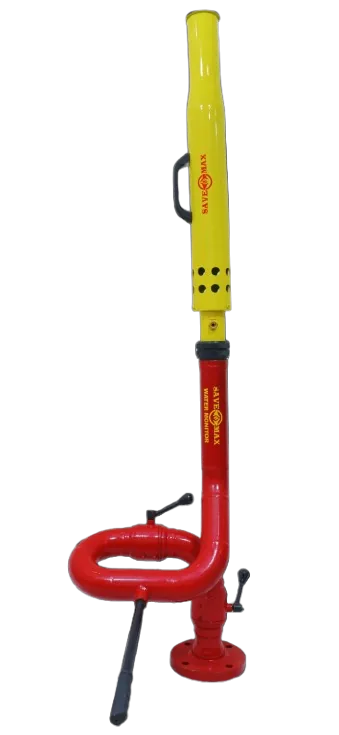

A foam monitor for delivering foam at a large flow, offered in 1750 LPM and 2580 LPM ratings.
Sizes: 1750 LPM
A monitor fitted with a foam barrel, rated at 1750 LPM.
Sizes: 1750 LPM

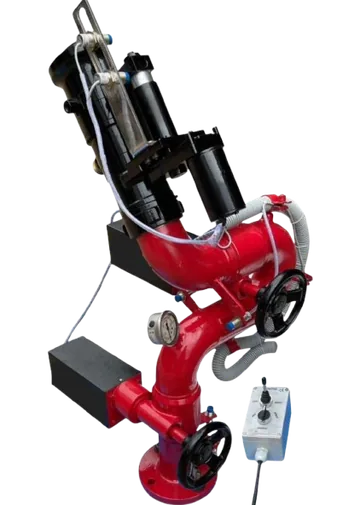

An aqua foam monitor rated at 1750 LPM that is aimed by remote control, so the operator does not need to stand at the monitor.
Sizes: 500 US GPM @ 7Bar, 750 US GPM @ 7Bar, 1000 US GPM @ 7Bar, 2000 US GPM @ 7Bar
Manually aimed monitors in stainless steel 316 or 304 for water or foam, turned by gear operated hand wheels, for protecting flammable liquid storage tanks on fixed installations or trailers. Offered at 500, 750, 1000 and 2000 US GPM at 7 bar.
Sizes: 675 US GPM @ 7Bar
A stainless steel fixed flow monitor rated 675 US GPM at 7 bar for water or foam, aimed with gear operated hand wheels, for flammable liquid storage tank protection.

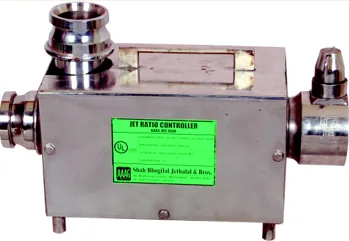

Aaag lists its 750, 1000 and 2000 US GPM fixed flow monitors as sets with a jet ratio controller, which feeds foam concentrate from a remote drum to the monitor's foam nozzle. The maker's pages for these sets show only a photo, so we confirm the full specification with Aaag when you enquire.
Sizes: 500 - 750 US GPM @ 7Bar
Stainless steel monitors whose flow can be set in steps, for water or foam protection of flammable liquid storage tanks, on fixed installations or trailers, aimed with gear operated hand wheels.
Sizes: 1000 US GPM @ 7Bar, 2000 US GPM @ 7Bar
Stainless steel monitors moved by electric motors with manual override, which can be operated from a remote location. Built for industrial complexes, refineries, loading docks, tanker berths and offshore platforms.
Sizes: 1000 US GPM @ 7Bar
A stainless steel monitor that sweeps from side to side by itself, driven by a water motor, so it keeps sweeping the area automatically. Rated 1000 US GPM at 7 bar.
Sizes: 1880 LPM @ 7Bar

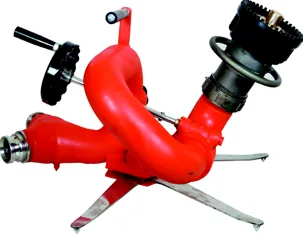

An 18 kg portable monitor for fire departments and supplementary fire fighting, fed by two 63 mm hose lines. Stainless steel, with aluminium as an option.
Sizes: 1750 LPM @ 7Bar, 7575 LPM @ 7Bar

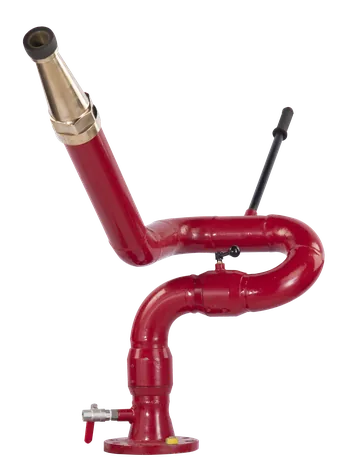

Carbon steel water monitors for industrial fire protection, aimed with gear operated hand wheels, for fixed installation or trailer mounting.
Sizes: 2580 LPM @ 7Bar, 3500 LPM @ 7Bar

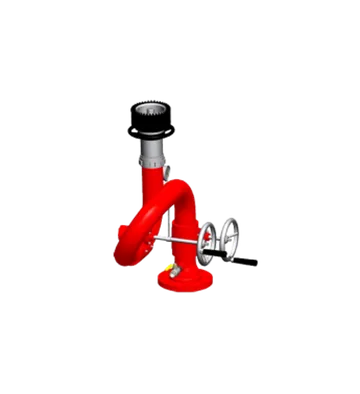

Carbon steel water monitors for industrial fire protection that swivel by hand and lock in position, for fixed installation or trailer mounting.

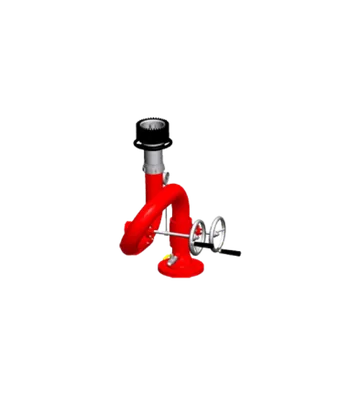

A gear operated monitor for fire vehicles and trailers, at 1800, 2750 or 3800 LPM with a 72 m throw. Aaag's heading calls it the carbon steel vehicle monitor while its table lists stainless steel 316 or 304, so we confirm the body material with Aaag.
A stainless steel monitor in SS 316 or 304 for fire vehicles and trailers, aimed with gear operated hand wheels, at 1800, 2750 or 3800 LPM with a 72 m throw.

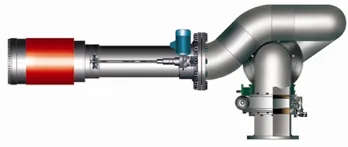

Monitors built to a customer's specification, manual or remote controlled, in stainless steel, carbon steel, bronze or other materials, for water or foam. Aaag also offers a design package for a complete remote controlled monitor system.
A venturi type, all hydraulic device that draws foam concentrate from a drum at a remote storage point and delivers it to the matched foam nozzle of a monitor up to 60 m away. Aaag offers it for its 750, 1000 and 2000 GPM foam monitors.

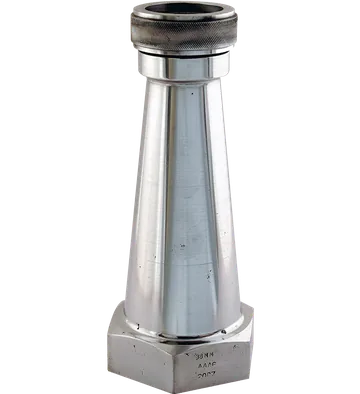

A fixed flow straight stream nozzle in aluminium for Aaag water monitors, calibrated in the factory to one of three flows.
A gunmetal fixed flow straight stream nozzle for Aaag water monitors, calibrated in the factory to 1750, 2580 or 3500 LPM.

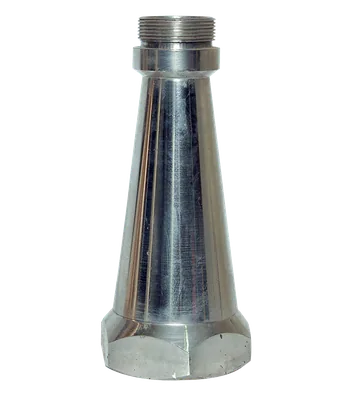

A stainless steel fixed flow straight stream nozzle for Aaag water monitors, in SS 304 or SS 316, calibrated in the factory to 1750, 2580 or 3500 LPM.
Sizes: 1800 LPM @ 7Bar
A non aspirating fixed flow monitor nozzle whose fog angle can be set anywhere from a 90° wide fog to a straight stream, using spinning or fixed teeth. Gunmetal, with stainless steel as an option.
A fixed flow, non aspirating monitor nozzle in aluminium with fixed teeth, adjustable from a straight stream to a 90° wide fog, for flows up to 2000 GPM depending on monitor size.
The gunmetal master stream nozzle: fixed flow and non aspirating, adjustable from a straight stream to a 90° wide fog, up to 2000 GPM depending on monitor size.
The stainless steel master stream nozzle in SS 304 or SS 316, fixed flow and adjustable from a straight stream to a 90° wide fog, up to 2000 GPM. Aaag shows the same code, G119B, as the gunmetal model, so we confirm the order code with the maker.

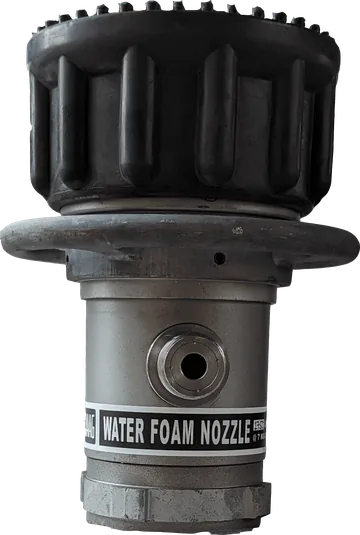

A self educting foam and water nozzle in aluminium with a fixed flow and a fog angle adjustable from a 90° wide fog to a straight stream, giving non aspirated foam.

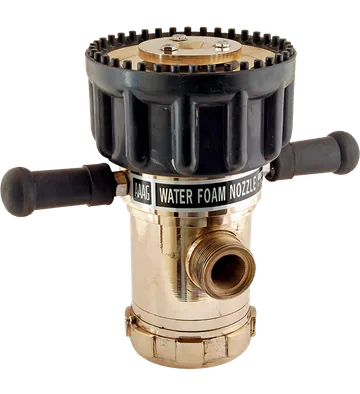

The gunmetal self educting foam and water nozzle, fixed flow, adjustable from a 90° wide fog to a straight stream.
The stainless steel self educting foam and water nozzle, fixed flow, adjustable from a 90° wide fog to a straight stream.
A variable flow version of the stainless steel self educting foam and water nozzle, adjustable from a 90° wide fog to a straight stream.
A self educting foam barrel that gives low expansion foam in a straight stream, fixed flow and rated at 7 bar, for 63 mm monitors.
Sizes: 63 MM
A manually operated 63 mm water monitor for hydrant systems, in aluminium with a red finish, rated 1750 LPM on most listings and 1500 LPM on one. A mild steel, powder coated version is also listed.
Sizes: 63 MM, 63 mm

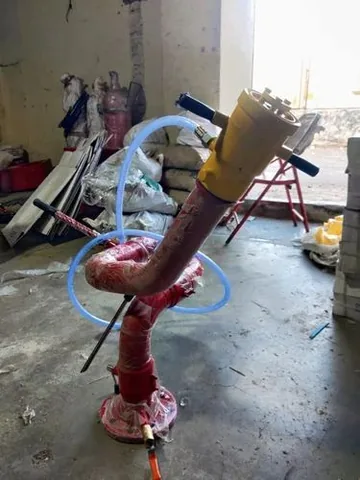

A 63 mm monitor for foam and water, rated 1750 LPM, for flammable liquid risks. Listed in aluminium (red and yellow) and with a stainless steel coating.

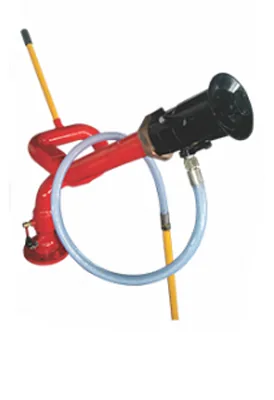

Start with the flow and reach the hazard needs, since this sets the monitor size. Minimax's stand post monitor to IS:8442 gives 1750 LPM (2.5 inch) or 2580 LPM (3.0 inch) at 7 kg/sq.cm with a horizontal throw of 55 to 60 m or 65 to 70 m, Savemax lists water and aqua foam monitors at 1750 and 2580 LPM, and Kartar Valves and Balaji Fire Safety offer 63 mm water monitors. For larger risks, Aaag's carbon steel water monitors run up to 7575 LPM, its stainless steel fixed and variable flow monitors start at 500 US GPM with throws of 50 to 80 m with water, and HD Fire's 6 inch VARUN monitors flow up to 12500 lpm (3300 gpm). The flow you choose must be within what the fire pump and main can supply at the monitor.
Next decide how the monitor is aimed. Manual monitors are turned by a handle with a lock, or by gear operated hand wheels or a fully enclosed worm gear on larger units. Self oscillating monitors from New Age, HD Fire and Aaag sweep the stream back and forth on their own, driven by a water motor or water wheel without wiring. Remote controlled monitors from New Age, HD Fire, Savemax and Aaag are aimed from a distance, so the operator does not need to stand at the monitor, with explosion proof motors available from HD Fire and Aaag, and New Age can run several monitors from one control panel.
Then choose the mounting and material. Fixed monitors sit on a stand post or flange, and New Age also offers a tower monitor on a riser about 10 m high. Mobile options include Aaag's 18 kg portable monitor fed by two 63 mm hoses, trolley and trailer monitors from New Age and HD Fire (HD Fire's HD-CHETAK trailer carries its own storage tank) and Aaag vehicle monitors. Carbon steel monitors come from New Age, HD Fire, Minimax and Aaag, hot dip galvanised on the New Age, HD Fire and Minimax models; stainless steel monitors from New Age, HD Fire and Aaag suit corrosive sites, and HD Fire also makes cast bronze VAJRA monitors. Most HD Fire monitors list a maximum operating pressure of 12 bar (175 psi), and Aaag's gear operated carbon steel water monitors 14 bar.
Finally check approvals and the nozzle. New Age and Minimax make monitors to IS 8442, New Age's ISI marked and HD Fire's Monitor M ISI certified; HD Fire offers FM Approved monitors, approved with its Varsha and NW nozzles, and UL Listed foam monitors, and New Age UL Listed stainless steel monitors with UL Listed foam induction under UL Standard 162. A jet or solid bore nozzle throws a straight stream, while jet spray, master stream and Varsha nozzles change from a straight stream to a wide fog. For foam, a self inducting nozzle draws concentrate through a suction hose or from a jet ratio controller, which on Aaag's unit feeds concentrate from a drum up to 60 m away. New Age, HD Fire and Aaag also supply monitor nozzles on their own to fit existing monitors.
