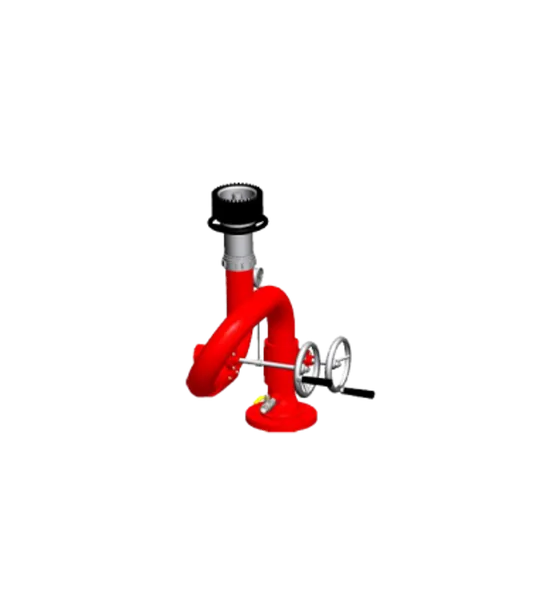

Supplier for AaagA gear operated monitor for fire vehicles and trailers, at 1800, 2750 or 3800 LPM with a 72 m throw. Aaag's heading calls it the carbon steel vehicle monitor while its table lists stainless steel 316 or 304, so we confirm the body material with Aaag.
| Specification | AAAG M199 Series |
|---|---|
| Model | AAAG M199 Series |
| Material | Stainless Steel 316 / 304 |
| Maximum Operating Pressure | 14 Bar (203 psi) |
| Flow rate | 1800 / 2750 / 3800 LPM @ 7Bar |
| Throw Range | 72 Meters |
| Monitor Water Way | 63 / 75 / 100 mm |
| Inlet Flange | Raised Flange ANSI B 16.5 150 # |
| Monitor Movement | Vertical Movement: Manual Gear Operated Hand Wheel Horizontal Movement: Manual Gear Operated Hand Wheel |
| Hydrostatic Test Pressure | 25 Bar |
| Finish | Red Polyurethane |
Specifications as published by Aaag. Please confirm the exact model with us before ordering.
Sizes: 500 US GPM @ 7Bar, 750 US GPM @ 7Bar, 1000 US GPM @ 7Bar, 2000 US GPM @ 7Bar
Manually aimed monitors in stainless steel 316 or 304 for water or foam, turned by gear operated hand wheels, for protecting flammable liquid storage tanks on fixed installations or trailers. Offered at 500, 750, 1000 and 2000 US GPM at 7 bar.
Sizes: 675 US GPM @ 7Bar
A stainless steel fixed flow monitor rated 675 US GPM at 7 bar for water or foam, aimed with gear operated hand wheels, for flammable liquid storage tank protection.
Aaag lists its 750, 1000 and 2000 US GPM fixed flow monitors as sets with a jet ratio controller, which feeds foam concentrate from a remote drum to the monitor's foam nozzle. The maker's pages for these sets show only a photo, so we confirm the full specification with Aaag when you enquire.
Sizes: 500 - 750 US GPM @ 7Bar
Stainless steel monitors whose flow can be set in steps, for water or foam protection of flammable liquid storage tanks, on fixed installations or trailers, aimed with gear operated hand wheels.
Sizes: 1000 US GPM @ 7Bar, 2000 US GPM @ 7Bar
Stainless steel monitors moved by electric motors with manual override, which can be operated from a remote location. Built for industrial complexes, refineries, loading docks, tanker berths and offshore platforms.
Sizes: 1000 US GPM @ 7Bar
A stainless steel monitor that sweeps from side to side by itself, driven by a water motor, so it keeps sweeping the area automatically. Rated 1000 US GPM at 7 bar.
Sizes: 63 mm
A water monitor for directing a heavy stream of water onto large fires from a distance. Size 63 mm, with an aluminium nozzle (K911 AL) or a gunmetal nozzle (K911 GM).
Sizes: 63mm, 75mm, 100mm
ISI marked water jet monitor to IS 8442 for fixed installation, in hot dip galvanised carbon steel seamless pipe, in 63 mm, 75 mm and 100 mm sizes.
Sizes: 100 MM, 150 MM
Long range monitor for fixed installation, in hot dip galvanised carbon steel seamless pipe, with 100 mm or 150 mm barrels.
Sizes: 100mm (4”)
The stainless steel VARUN-443 monitor fitted with an electric motor, so it is aimed from a control panel instead of by hand. The basic monitor and nozzle are UL Listed, and HD names storage tanks, loading racks, jetties and terminals as typical uses.
A hand operated monitor with a hot dip galvanized carbon steel waterway and a fixed flow solid bore nozzle, carrying ISI certification. It is offered in 2.5, 3 and 4 inch sizes.
Stand post monitor made from heavy duty carbon steel seamless pipe to ASTM A 106, hot dip galvanised, with a gunmetal nozzle. It turns 360 degrees, moves from +90 degrees to -45 degrees and is made as per IS:8442.
