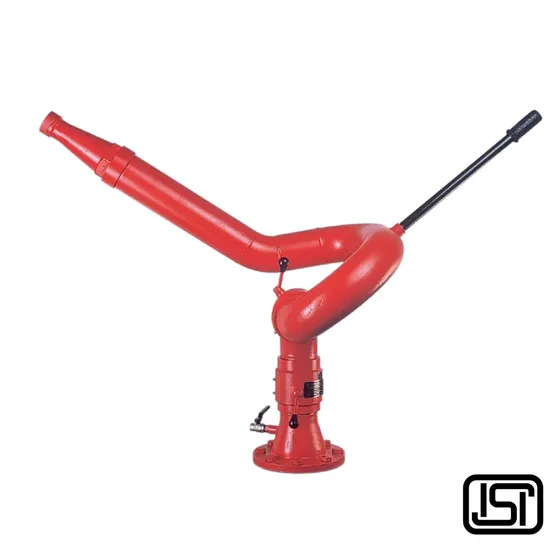

Dealer for HD FireA hand operated monitor with a hot dip galvanized carbon steel waterway and a fixed flow solid bore nozzle, carrying ISI certification. It is offered in 2.5, 3 and 4 inch sizes.
Standards and approvals: ISI
| Specification | Details | Details | Details | M |
|---|---|---|---|---|
| Size | 63 mm (2.5″) with 1750 lpm at 6.8 bar | 75 mm (3″) with 2580 lpm at 6.8 bar | 100 mm (4″) with 3500 lpm at 6.8 bar | |
| MODEL | M | |||
| MAXIMUM RATED | 12 BAR (175 PSI) | |||
| NOMINAL WATERWAY SIZE | 65mm, 80mm & 100mm | |||
| SPECIFICATION | Reference : IS:8442 - 1977 | |||
| FLOW AT 7 Kg. / Sq.Cm PRESSURE | 65 MM - 1750 LPM 80 MM - 2580 LPM 100 MM - 3500 LPM | |||
| FACTORY HYDROSTATIC TEST PRESSURE | 25 Kg / Sq.Cm | |||
| NOZZLE THURST REACTION IN Kg. | Flow in LPM X √ Pressure in Kg./Sq.Cm. X 0.0228 | |||
| INLET FLANGE SIZE | 65 MM - 100 NB 80 MM - 100 NB 100 MM - 100 NB / 150 NB Flange dimension as per IS 6392-1971 Table 17 & 28 | |||
| NOZZLE | Straight stream nozzle of Bronze or Aluminium material | |||
| ROTATION | 360 Deg. continuous | |||
| WEIGHT (Approx) | 65MM - 33 Kg 80MM - 40 Kg 100MM - 69 Kg | |||
| FINISH | Fire Red Shade 536 of IS: 5-1961painted from outside | |||
| ORDERING INFORMATION | Specify Monitor Model, Size and Inlet Flange Size | |||
| APPROVAL | ISI marked |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
Sizes: 100mm (4”)
The stainless steel VARUN-443 monitor fitted with an electric motor, so it is aimed from a control panel instead of by hand. The basic monitor and nozzle are UL Listed, and HD names storage tanks, loading racks, jetties and terminals as typical uses.
Sizes: 63 mm (2.5″)
A 2.5 inch manual monitor with a hot dip galvanized carbon steel waterway and bronze swivel joint. A worm gear moves it vertically and a handle with twist lock turns it horizontally.
A corrosion resistant stainless steel manual monitor with a 2.5 inch waterway, built for fixed installation or for mounting on a trailer.
A 3 inch hot dip galvanized carbon steel monitor that one person can deploy, for fixed installation or trailer mounting. It is FM Approved with the VARSHA 40 master stream nozzle.
A corrosion resistant stainless steel version of the 3 inch manual monitor, epoxy painted red and FM Approved with the VARSHA 40 master stream nozzle. HD states that its single waterway and precision machined swivel joints reduce friction loss and improve jet reach.
Sizes: 100 mm (4″)
A 4 inch gear operated monitor with a hot dip galvanized carbon steel waterway and bronze swivel joint. It is FM Approved with the VARSHA 50 master stream nozzle and the NW 1000 solid bore nozzle.
Sizes: 63 mm
A water monitor for directing a heavy stream of water onto large fires from a distance. Size 63 mm, with an aluminium nozzle (K911 AL) or a gunmetal nozzle (K911 GM).
Sizes: 63mm, 75mm, 100mm
ISI marked water jet monitor to IS 8442 for fixed installation, in hot dip galvanised carbon steel seamless pipe, in 63 mm, 75 mm and 100 mm sizes.
Sizes: 100 MM, 150 MM
Long range monitor for fixed installation, in hot dip galvanised carbon steel seamless pipe, with 100 mm or 150 mm barrels.
Stand post monitor made from heavy duty carbon steel seamless pipe to ASTM A 106, hot dip galvanised, with a gunmetal nozzle. It turns 360 degrees, moves from +90 degrees to -45 degrees and is made as per IS:8442.
Sizes: 1750 LPM, 2580 LPM
A water monitor, a large flow nozzle aimed from its mounting rather than held by hand, offered in 1750 LPM and 2580 LPM ratings.
Sizes: 1750 LPM, 2580 LPM
A foam monitor for delivering foam at a large flow, offered in 1750 LPM and 2580 LPM ratings.
