Aaag Monitor Jet Nozzle, Fixed Flow, Aluminium (AAAG A119)
A fixed flow straight stream nozzle in aluminium for Aaag water monitors, calibrated in the factory to one of three flows.

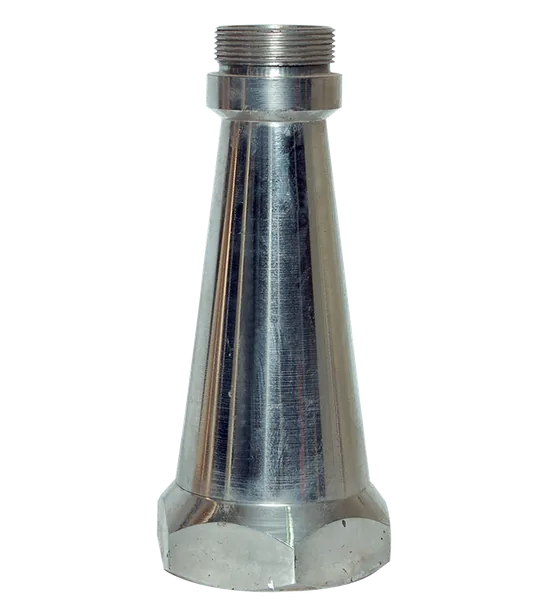

Supplier for AaagAaag Monitor Jet Nozzle, Fixed Flow, Stainless Steel (AAAG S119)
A stainless steel fixed flow straight stream nozzle for Aaag water monitors, in SS 304 or SS 316, calibrated in the factory to 1750, 2580 or 3500 LPM.
- Solid straight stream
- 1750, 2580 or 3500 LPM at 7 bar
- SS 304 or SS 316
- Fits 63, 75 and 100 mm monitors
- Maximum operating pressure 12 bar (175 psi)
Specifications
Specifications
| Specification | AAAG S119 |
|---|---|
| Model | AAAG S119 |
| Nozzle Body | Stainless Steel, SS 304 / SS 316 |
| Maximum Operating Pressure | 12 Bar (175 psi) |
| Flow Rate (Option 1) | 1750 LPM @ 7 Bar |
| Flow Rate (Option 2) | 2580 LPM @ 7 Bar |
| Flow Rate (Option 3) | 3500 LPM @ 7 Bar |
| Inlet | Suitable for 63mm, 75mm and 100mm Monitor sizes |
| Inlet Thread | BSP Thread Female Swivel |
| Nozzle Flow Control | Fixed Flow |
| Nozzle Spray | Solid Straight Stream |
Specifications as published by Aaag. Please confirm the exact model with us before ordering.
More Aaag Monitor Nozzles
Aaag Monitor Jet Nozzle, Fixed Flow, Gunmetal (AAAG G119)
A gunmetal fixed flow straight stream nozzle for Aaag water monitors, calibrated in the factory to 1750, 2580 or 3500 LPM.
Aaag Monitor Jet Spray Nozzle, Fixed Flow, Gunmetal (AAAG 119A)
Sizes: 1800 LPM @ 7Bar
A non aspirating fixed flow monitor nozzle whose fog angle can be set anywhere from a 90° wide fog to a straight stream, using spinning or fixed teeth. Gunmetal, with stainless steel as an option.
Aaag Master Stream Monitor Nozzle, Aluminium (AAAG A119B)
A fixed flow, non aspirating monitor nozzle in aluminium with fixed teeth, adjustable from a straight stream to a 90° wide fog, for flows up to 2000 GPM depending on monitor size.
Aaag Master Stream Monitor Nozzle, Gunmetal (AAAG G119B)
The gunmetal master stream nozzle: fixed flow and non aspirating, adjustable from a straight stream to a 90° wide fog, up to 2000 GPM depending on monitor size.
Aaag Master Stream Monitor Nozzle, Stainless Steel
The stainless steel master stream nozzle in SS 304 or SS 316, fixed flow and adjustable from a straight stream to a 90° wide fog, up to 2000 GPM. Aaag shows the same code, G119B, as the gunmetal model, so we confirm the order code with the maker.
Fire Monitors and Monitor Nozzles from other brands
Kartar Valves
Kartar Valves Water Monitor, 63 mm, Aluminium or Gunmetal Nozzle (K911)
Sizes: 63 mm
A water monitor for directing a heavy stream of water onto large fires from a distance. Size 63 mm, with an aluminium nozzle (K911 AL) or a gunmetal nozzle (K911 GM).
New Age
New Age Water Jet Monitor, Carbon Steel, ISI Marked
Sizes: 63mm, 75mm, 100mm
ISI marked water jet monitor to IS 8442 for fixed installation, in hot dip galvanised carbon steel seamless pipe, in 63 mm, 75 mm and 100 mm sizes.
New Age
New Age Long Range Monitor, Carbon Steel
Sizes: 100 MM, 150 MM
Long range monitor for fixed installation, in hot dip galvanised carbon steel seamless pipe, with 100 mm or 150 mm barrels.
HD Fire
HD Fire VARUN-443 Electric Remote Controlled Monitor, Stainless Steel, 4 inch
Sizes: 100mm (4”)
The stainless steel VARUN-443 monitor fitted with an electric motor, so it is aimed from a control panel instead of by hand. The basic monitor and nozzle are UL Listed, and HD names storage tanks, loading racks, jetties and terminals as typical uses.
HD Fire
HD Fire Monitor M (ISI), Galvanized Carbon Steel
A hand operated monitor with a hot dip galvanized carbon steel waterway and a fixed flow solid bore nozzle, carrying ISI certification. It is offered in 2.5, 3 and 4 inch sizes.
Minimax
Minimax Water / Hydrofoam Monitor, Stand Post Type (IS:8442)
Stand post monitor made from heavy duty carbon steel seamless pipe to ASTM A 106, hot dip galvanised, with a gunmetal nozzle. It turns 360 degrees, moves from +90 degrees to -45 degrees and is made as per IS:8442.
