HD Fire Mobile Foam Bladder Tank Unit
A self-contained, wheeled foam bladder tank unit for rapid foam attack in high risk places such as loading terminals, oil storage areas, boiler rooms and engine compartments. It needs little effort to move.

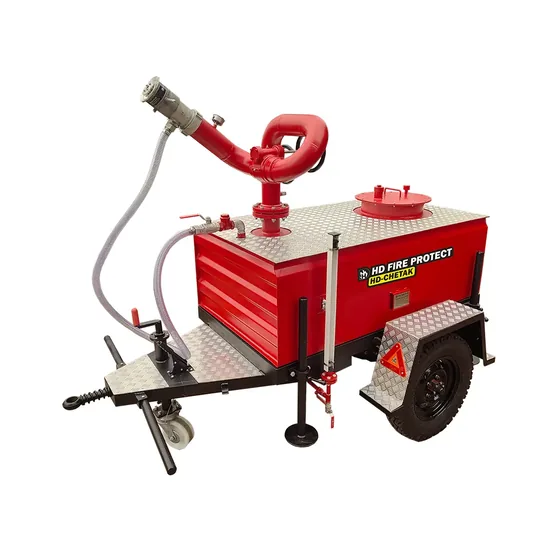

Dealer for HD FireHD Fire HD-CHETAK Trailer Mounted Monitor with Storage Tank
A 2 or 4 wheel trailer with a storage tank and a monitor mounted on the tank, which two people can move or a light truck or jeep can tow. The monitor can be manual or remote controlled and is UL Listed or FM Approved.
- Storage tank of various capacities on the trailer
- Manual or remote controlled monitor, sized to the flow required
- Maximum operating pressure 12 bar (175 psi)
- Rear manifold with 2.5 or 4 inch BSP coupling for hydrant supply
- Overrun and manual braking, four stabiliser legs, reflectors, epoxy coated
Specifications
Specifications
| Specification | HD-CHETAK |
|---|---|
| MODEL | HD-CHETAK |
| WATER/FOAM FLOW | 500 to 2000 GPM (depending on HD monitor model) |
| MAX. OPERATING PRESSURE | 175 PSI (12 Bar) |
| FRAMING | Structural steel |
| DECKING | Anti-skid checker plate |
| TYRES | Pneumatic radial load bearing |
| BREAKS | Manual with overrun mechanical break |
| JAK | Four Drop Leg, anti-slip |
| WATERWAY | Steel or stainless steel with 2.5 inch male instantaneous coupling with inbuilt swing check valve |
| MONITOR CONNECTION | 3, 4, 6 inch depending on flow required |
| MONITOR ROTATION & ELEVATION | -5 to +85 deg elevation with 360 deg rotation |
| APPROVAL | UL Listed or FM Approved Monitor |
| PAINTING | Red Epoxy painted |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
More HD Fire Mobile Monitors and Foam Units
HD Fire Mobile Foam Unit, Fibreglass (MF-A) or Stainless Steel (MF-S)
A self-contained foam cart on two solid rubber wheels that one person can move, with an inductor and branch pipe for quick foam application. The tank is fibreglass on MF-A or stainless steel on MF-S.
HD Fire Trailer Mounted Monitor, 3, 4 or 6 inch
A rugged two wheel trailer carrying a 3, 4 or 6 inch monitor with its water supply manifold, moved by two people or towed behind a light truck or jeep. Water comes from the hydrant network through a coupling at the rear.
HD Fire Trolley Mounted Monitor, 2.5 or 3 inch
A hand moved trolley on two solid rubber wheels that carries a 2.5 or 3 inch monitor, fed through a water supply manifold with instantaneous couplings.
Fire Monitors and Monitor Nozzles from other brands
Kartar Valves
Kartar Valves Water Monitor, 63 mm, Aluminium or Gunmetal Nozzle (K911)
Sizes: 63 mm
A water monitor for directing a heavy stream of water onto large fires from a distance. Size 63 mm, with an aluminium nozzle (K911 AL) or a gunmetal nozzle (K911 GM).
New Age
New Age Water Jet Monitor, Carbon Steel, ISI Marked
Sizes: 63mm, 75mm, 100mm
ISI marked water jet monitor to IS 8442 for fixed installation, in hot dip galvanised carbon steel seamless pipe, in 63 mm, 75 mm and 100 mm sizes.
New Age
New Age Long Range Monitor, Carbon Steel
Sizes: 100 MM, 150 MM
Long range monitor for fixed installation, in hot dip galvanised carbon steel seamless pipe, with 100 mm or 150 mm barrels.
Minimax
Minimax Water / Hydrofoam Monitor, Stand Post Type (IS:8442)
Stand post monitor made from heavy duty carbon steel seamless pipe to ASTM A 106, hot dip galvanised, with a gunmetal nozzle. It turns 360 degrees, moves from +90 degrees to -45 degrees and is made as per IS:8442.
Savemax
Savemax Water Monitor (1750 and 2580 LPM)
Sizes: 1750 LPM, 2580 LPM
A water monitor, a large flow nozzle aimed from its mounting rather than held by hand, offered in 1750 LPM and 2580 LPM ratings.
Savemax
Savemax Aqua Foam Monitor (1750 and 2580 LPM)
Sizes: 1750 LPM, 2580 LPM
A foam monitor for delivering foam at a large flow, offered in 1750 LPM and 2580 LPM ratings.
