HD Fire Mobile Foam Bladder Tank Unit
A self-contained, wheeled foam bladder tank unit for rapid foam attack in high risk places such as loading terminals, oil storage areas, boiler rooms and engine compartments. It needs little effort to move.

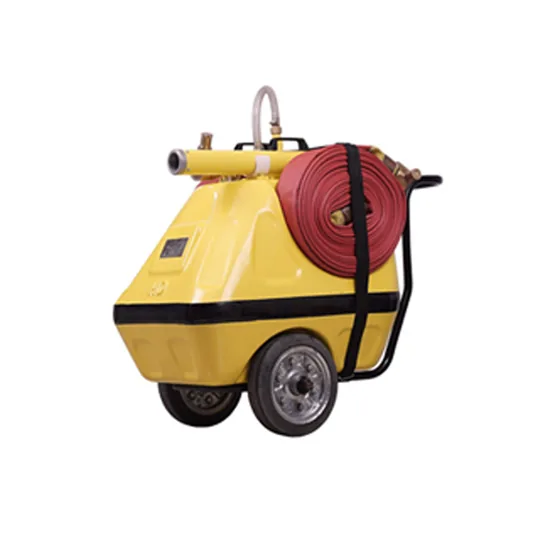

Dealer for HD FireHD Fire Mobile Foam Unit, Fibreglass (MF-A) or Stainless Steel (MF-S)
A self-contained foam cart on two solid rubber wheels that one person can move, with an inductor and branch pipe for quick foam application. The tank is fibreglass on MF-A or stainless steel on MF-S.
- MF-A: fibreglass tank of 160 litres in yellow finish
- MF-S: stainless steel 304 tank up to 180 litres, SS 316 as an option
- Aluminium or bronze inductor for 225 or 450 lpm (60 or 120 gpm)
- FM Approved inductor and branch pipe
- Provision for mounting two fire hoses
Standards and approvals: FM Approved
Specifications
Specifications
| Specification | Details |
|---|---|
| MODEL | MF-A Fiber Glass Tank MF-S Stainless Steel |
| FOAM CONCENTRATE STORAGE CAPACITY | MF-A: 160 litres MF-S: 140/160/180 litres |
| FOAM INDUCTOR | Model IE Capacity: 225 or 450 lpm @7 & 12 kg/sq.cm 3% induction Material: Standard supply - Stainless steel 304 (CF8) Optional- Stainless Steel 316 (CF8M) or Bronze End Connection: 2.5 inch instantaneous coupling Induction: 3% AFFF or ARAFFF Approval: FM Approved Refer catalogue HD 262 |
| BRANCH PIPE | Model BP Capacity: 225 or 450 lpm Material: Aluminium End Connection: 2.5 inch Male Instantaneous Coupling Foam Type: AFFF or ARAFFF , 3% induction Approval: FM Approved Refer catalogue HD 196 |
| OPTIONAL SUPPLY | UL Listed Hoses or ISI Hoses, with instantaneous coupling, 15 meters long (2 units) Foam Concentrate |
| TANK MATERIAL | MF-A: Fiber Glass Tank MF-S: Stainless Steel 304 is standard supply, Stainless Steel 316 is optional supply. |
| WHEEL | Rubber wheel |
| FINISH | MF-A: Yellow MF-S: Red |
| ORDERING INFORMATION | Specify: 1) Model, Flow & Pressure through Inductor 2) Type of concentrate & hose requirement |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
