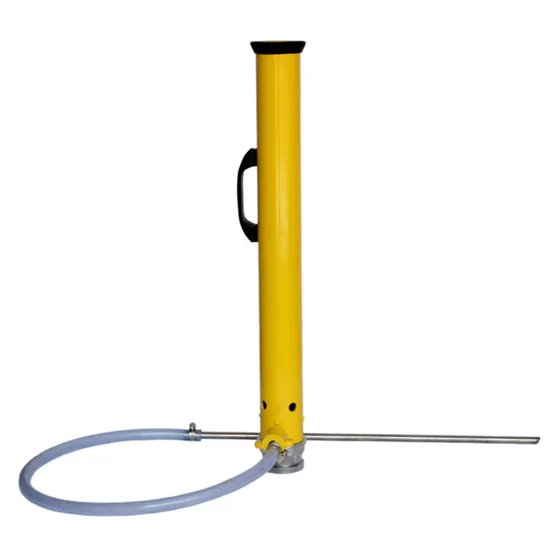

Supplier for New AgeNew Age FB 2, FB 10 and FB 20 Self Inducting Foam Branch Pipes
Low expansion foam branch pipes that draw in foam concentrate themselves at a fixed 3% or 6% through a pick-up tube, in aluminium or stainless steel, straight or dome pattern.
- Self inducting at a fixed 3% or 6%, with pick-up tube and dip pipe
- Low expansion foam, ratio 1:2 to 1:12
- Works with all types of foam
- Inlets: BS 336, BSP threads, GOST, Storz or American rocker lug
- Control valve optional; straight or dome pattern
- Aluminium or stainless steel
Standards and approvals: BS 336
Specifications
Specifications
| Specification | FE-FB-2 FE-FB-10 FE-FB-20 |
|---|---|
| Item Code | FE-FB-2 FE-FB-10 FE-FB-20 |
| Description | With In-Built Foam Inductor |
| Flow @ 7 bar | 225 LPM 450 LPM 900 LPM |
| Material of Construction | Aluminum Stainless Steel |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
