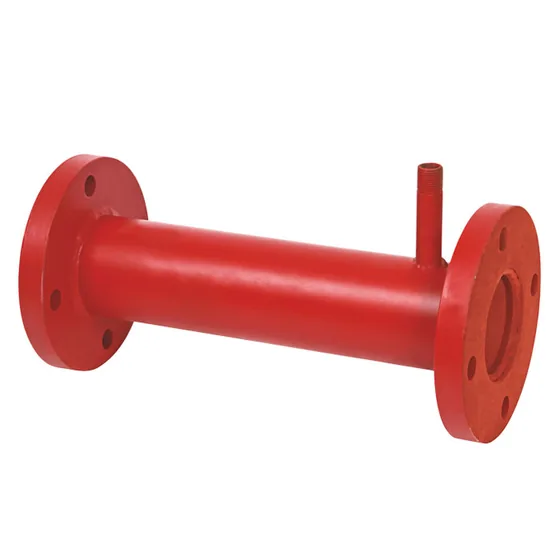

Supplier for New AgeNew Age Fixed Inline Foam Inductor
Inline foam inductor for fixed installations, inducting 3% to 6%, in carbon steel with anti corrosive coating or in stainless steel, in sizes 2 inch to 8 inch.
- For fixed installation systems
- Foam induction 3% to 6%
- Available for a wide range of flows
- Carbon steel with anti corrosive coating; stainless steel also available
- Ends: instantaneous to BS 336, or flanged to ANSI
- Inlet and outlet sizes 2 inch to 8 inch
Standards and approvals: BS 336
Specifications
Specifications
| Specification | FE-FII |
|---|---|
| Item Code | FE-FII |
| Size of Inlet & Outlet | 2” 2.5” 3” 4” 6” 8” |
| Flow rate at 7 bar | 75-225 LPM 225-450 LPM450-900 LPM 900-1800 LPM1800-2700 LPM 2700-3600 LPM |
| End Connection | Instantaneous as per BS 336 Flanged as per ANSI |
Specifications as published by New Age. Please confirm the exact model with us before ordering.
