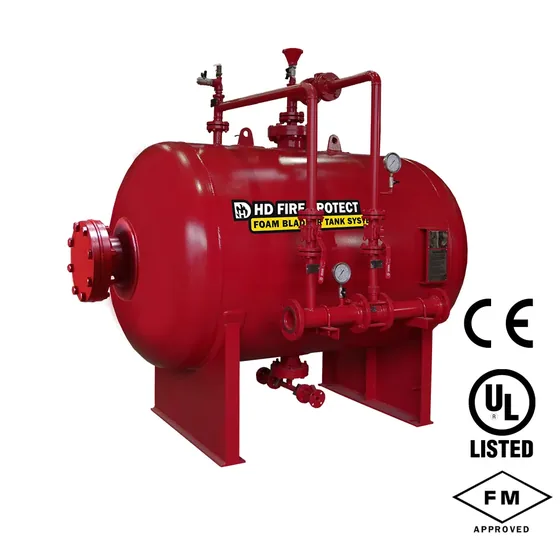

Dealer for HD FireA pressure rated tank with a nylon reinforced Buna-N rubber bladder and a proportioner pre-piped on to it, used widely in low expansion foam systems. It can be supplied UL Listed, FM Approved or CE marked when specified.
Standards and approvals: CE Approvals, ASME Code Section VIII Div I, UL Listed, FM Approved, CE Mark, ASME U Stamp, FM approved
| Specification | 140 L to 15000 L (36 to 4000 ga L) | Details |
|---|---|---|
| Maximum working pressure | 175 psi (12.1 bar) | |
| Optional supply | UL Listed Foam Bladder Tank for 230 psi (16 bar) | |
| Construction | Carbon Steel or Stainless Steel | |
| Optional | Increased wall thickness for specific corrosion allowance | |
| TANK MOUNTING TYPE | Vertical or Horizontal | |
| CONCENTRATE STORAGE CAPACITY | For Vertical Tank: 140 litres to 7500 litres (36 TO 2000 gallon (US)) For Horizontal Tank: 140 litres to 20000 litres (36 to 5285 gallon (US)) | |
| WORKING PRESSURE | 30 psi (2.1 bar) to 175 psi (12 bar) standard supply or 225 psi (16 bar) optional supply (only UL listed) | |
| OPERATING TEMPERATURE | 35.6˚F (2˚C) to 167˚F (75˚C) | |
| FACTORY HYDRO TEST PRESSURE | As per ASME code | |
| FLOW | Refer Table-II & Table-III | |
| VESSEL CONSTRUCTION | Carbon Steel as per ASME Code Section VIII Div 1, for unfired pressure vessels | |
| CE Mark | Optional | |
| ASME “U” STAMP | Optional | |
| BLADDER | Buna-N | |
| EXTERNAL PIPING | Water side: Carbon Steel Seamless Pipe Sch.40 Foam Concentrate side: Stainless Steel Sch.40 | |
| RATIO CONTROLLER | Wafer type - Standard supply Stainless Steel 304/CF8 Optional: Stainless Steel 316/ CF8M/Bronze/Nickel Al.Bronze Flanged Type - Optional supply (For size & flow refer product catalgue HD 263) or Table II & III | |
| VENT AND DRAIN | Ball valve | |
| OPTIONAL SUPPLY | Refer to page 3 | |
| FINISH | Red RAL 3001 | |
| ORDERING INFORMATION | Specify: 1. Tank type, vertical or horizontal 2. Storage capacity 3. Model number, size of ratio controller with flow and pressure 4. Type of foam concentrate to be used and percentage of induction required 5. Optional items 6. UL or FM Approval Requirement |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
