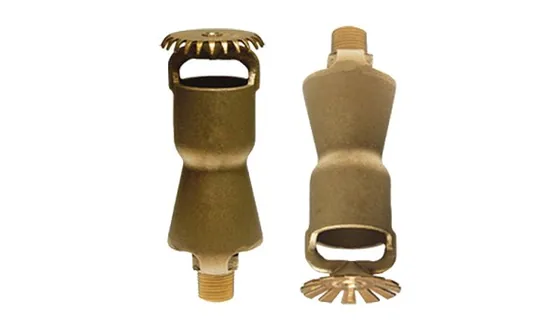

Supplier for TycoAn air aspirating foam discharge outlet for foam-water deluge systems, in upright and pendent versions.
Standards and approvals: UL and ULC Listed
| Specification | K=3.0 GPM/psi½ (43,2 LPM/bar½) |
|---|---|
| Maximum Working Pressure | 175 psi (12,1 bar) |
| Discharge Coefficients | K=3.0 GPM/psi½ (43,2 LPM/bar½) |
| Thread Connection | 1/2 in. NPT |
| Finish | Natural Bronze |
| Body | Bronze |
| Deflector | Brass |
| Agitator | Brass |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
An automatic directional spray nozzle with a frangible bulb for water spray fixed systems, discharging a filled cone of medium velocity droplets once the bulb operates.
An open (non-automatic) external deflector nozzle for water spray fixed systems, discharging a filled cone of medium velocity water droplets.
An open external deflector nozzle for water spray fixed systems with a four arm body that helps protect it from mechanical damage.
Open external deflector nozzles for water spray fixed systems that discharge a filled cone of medium velocity droplets, offered in several materials of construction.
Open medium velocity nozzles for water spray protection of vessels and structures holding highly flammable liquids, gases and solids with flash points of 66°C (150°F) and below.
Open internal scroll nozzles that discharge a filled cone of relatively high velocity water droplets, mainly for extinguishing and controlling fires in special hazards, and also usable for exposure protection.
A horizontal, custom fabricated tank that stores foam concentrate for inline inductors and balanced pressure proportioning systems. It is built in stainless steel 304 or 316, or in carbon steel with FRP lining.
A pressure rated tank with a nylon reinforced Buna-N rubber bladder and a proportioner pre-piped on to it, used widely in low expansion foam systems. It can be supplied UL Listed, FM Approved or CE marked when specified.
Low expansion foam branch pipes that draw in foam concentrate themselves at a fixed 3% or 6% through a pick-up tube, in aluminium or stainless steel, straight or dome pattern.
Standard low expansion foam branch pipes without built in induction, for use with premix foam solution, in aluminium or stainless steel.
