Tyco

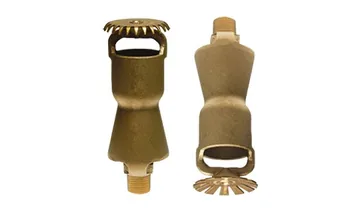

Tyco Model B-1 Foam-Water Sprinkler, Upright and Pendent, K3.0 (TFP840)
An air aspirating foam discharge outlet for foam-water deluge systems, in upright and pendent versions.
Foam Proportioners and Foam Equipment in Bhopal
Foam equipment mixes foam concentrate into water at a set ratio and turns the solution into foam, from bladder tanks, proportioners and inductors on fixed systems to foam makers and chambers on storage tanks, foam-water sprinklers, branch pipes, expansion foam generators and mobile foam carts. FPS supplies foam equipment from Tyco, HD Fire and New Age in Bhopal and across Madhya Pradesh.
HD Fire
HD Fire Atmospheric Foam Concentrate Storage Tank
A horizontal, custom fabricated tank that stores foam concentrate for inline inductors and balanced pressure proportioning systems. It is built in stainless steel 304 or 316, or in carbon steel with FRP lining.
HD Fire
HD Fire Foam Bladder Tank Proportioning System
A pressure rated tank with a nylon reinforced Buna-N rubber bladder and a proportioner pre-piped on to it, used widely in low expansion foam systems. It can be supplied UL Listed, FM Approved or CE marked when specified.
HD Fire
HD Fire Foam Bladder Tank with Multiple Proportioners
One vertical or horizontal bladder tank acts as the central foam concentrate store for several proportioning lines, each running to its own hazard zone. Each line works as an independent proportioning system with its own foam concentrate control valve.
HD Fire
HD Fire Dual Bladder Tank Skid
Two bladder tanks mounted on one skid, the first as the operating tank and the second as a standby reserve. Available as vertical or horizontal units.
HD Fire
HD Fire Foam Bladder Tank with Pre-Assembled Deluge Valve
A foam bladder tank supplied with the proportioner and a deluge valve already piped on to it. The bladder tank, proportioner and deluge valve are UL Listed.
HD Fire
HD Fire Foam Concentrate By-Pass Valve, 40 and 50 mm
Sizes: 40 & 50 mm (1.5″ & 2″ )
A by-pass valve for balanced pressure foam pump skids that sends the controlled excess of foam concentrate back to the storage tank. Offered in bronze or stainless steel in 40 and 50 mm sizes.
HD Fire
HD Fire Foam Concentrate Control Valve, Model CV, FM Approved
A hydraulically controlled stainless steel valve for bladder tank and inline balanced pressure systems that opens by itself once water supply is established. Model CV is FM Approved as part of HD's foam bladder tank proportioning system.
HD Fire
HD Fire Custom Engineered Foam Skid
A foam skid engineered to the project specification, with the foam concentrate tank, foam pump, proportioner and control panel mounted on one frame. It is completely pre-assembled and tested in the factory.
HD Fire
HD Fire Inline Balanced Pressure Foam Proportioner (ILBP), UL Listed
A UL Listed proportioner used with a positive displacement foam concentrate pump that keeps the concentrate flow accurate over a wide range of flow rate and pressure. Several ILBPs can run from one concentrate supply line, even at different pressures.
HD Fire
HD Fire Inline Foam Inductor
An inductor that draws foam concentrate into the water stream and supplies foam solution to the foam making equipment, meant mainly for fixed foam installations with constant flow. Each unit is calibrated and factory tested for flow and induction rate at maximum back pressure.
HD Fire
HD Fire Portable Inline Foam Inductor, Series IE225 and IE450
Compact 65 mm inductors for manual fire fighting and mobile foam units, with a fixed flow of 225 or 450 lpm and calibration at 7 or 12 kg/cm2 inlet pressure. They are FM Approved and UL Listed with named HD foam concentrates.
HD Fire
HD Fire Foam Ratio Controller, UL Listed and FM Approved
The metering device of a bladder tank or inline balanced pressure system, which feeds foam concentrate into the water line in the right proportion for variable flows. It is available in stainless steel or bronze, with wafer or flanged connections.
HD Fire
HD Fire Skid Mounted Balanced Pressure Foam Proportioning System
A compact pump skid that controls the flow of foam concentrate into the water stream automatically over a wide range of flow and pressure, with no manual adjustment. It arrives ready to connect to the system.
HD Fire

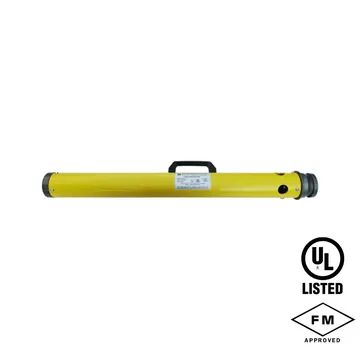

HD Fire Foam Branch Pipe, Aluminium, BP225 and BP450
Sizes: 60 NB
A hand held foam branch pipe in aluminium, designed for long range performance, with a 2.5 inch male instantaneous coupling at the inlet. Models BP225 and BP450 are UL Listed and FM Approved.
HD Fire

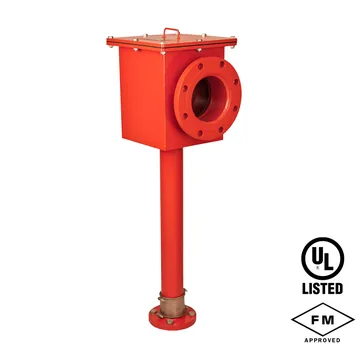

HD Fire Foam Chamber, 50 to 150 NB, UL Listed and FM Approved
A Type II foam discharge device under NFPA 11 that lays low expansion foam directly onto the surface of a flammable or combustible liquid. It is used on vertical fixed cone roof tanks and is UL Listed and FM Approved.
HD Fire

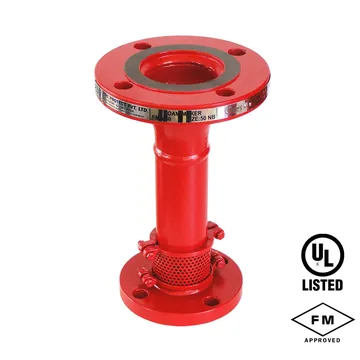

HD Fire Foam Maker, UL Listed and FM Approved
Sizes: 50 & 65 NB ( 2” & 2.5” )
An air aspirating foam discharge device for floating roof flammable liquid storage tanks, which NFPA 11 defines as a Type II outlet delivering low expansion aspirated foam to the seal. It is also used for diked storage and spill areas.
HD Fire

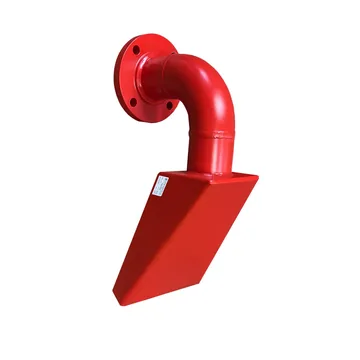

HD Fire Foam Pourers for Foam Makers, 50 to 80 NB
Foam pourers that work with HD foam makers to deliver foam onto the protected surface, offered in 50, 65 and 80 NB (2, 2.5 and 3 inch) sizes with a choice of pourer types.
HD Fire

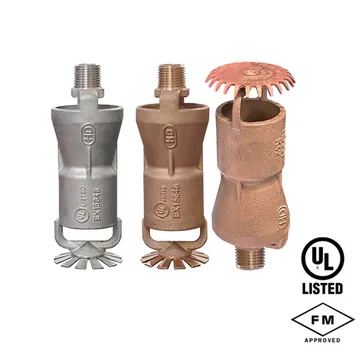

HD Fire Air Aspirating Foam-Water Sprinkler Nozzle, Pendent and Upright
Sizes: 1/2″ BSPT / NPT
Open, air aspirating foam-water nozzles for NFPA 16 and NFPA 11 foam-water sprinkler systems that discharge foam from overhead and then water in a spray pattern like a standard sprinkler. The pendent model is UL Listed and FM Approved and the upright model is UL Listed.
HD Fire

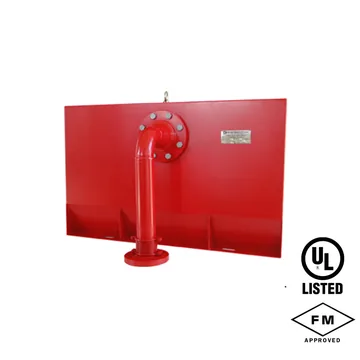

HD Fire Rim Seal Foam Pourer, 65 NB, UL Listed and FM Approved
Sizes: 65 NB
A foam pourer that discharges fully aspirated foam into the annular seal area of floating roof storage tanks, for fire or vapour suppression. Its design shields the foam from wind so it runs gently onto the seal, and it is UL Listed and FM Approved.
HD Fire

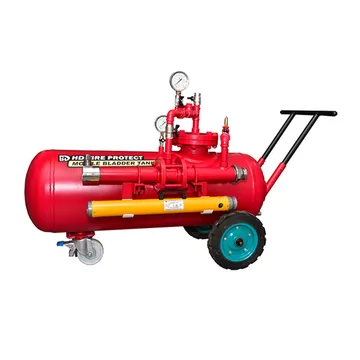

HD Fire Mobile Foam Bladder Tank Unit
A self-contained, wheeled foam bladder tank unit for rapid foam attack in high risk places such as loading terminals, oil storage areas, boiler rooms and engine compartments. It needs little effort to move.
HD Fire

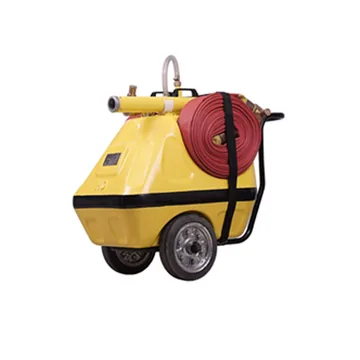

HD Fire Mobile Foam Unit, Fibreglass (MF-A) or Stainless Steel (MF-S)
A self-contained foam cart on two solid rubber wheels that one person can move, with an inductor and branch pipe for quick foam application. The tank is fibreglass on MF-A or stainless steel on MF-S.
New Age

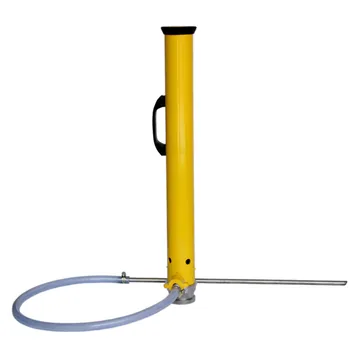

New Age FB 2, FB 10 and FB 20 Self Inducting Foam Branch Pipes
Low expansion foam branch pipes that draw in foam concentrate themselves at a fixed 3% or 6% through a pick-up tube, in aluminium or stainless steel, straight or dome pattern.
New Age

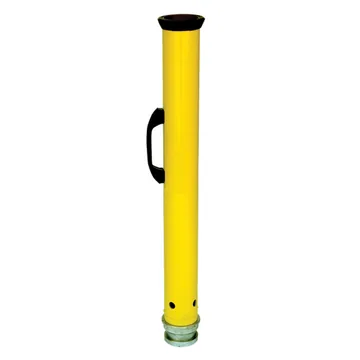

New Age FB 2X, FB 10X and FB 20X Premix Foam Branch Pipes
Standard low expansion foam branch pipes without built in induction, for use with premix foam solution, in aluminium or stainless steel.
New Age

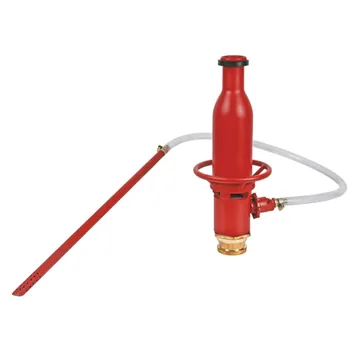

New Age FB 5X Foam Branch Pipe with Built In Inductor
Low expansion foam branch pipe for 225 LPM at 7 bar, with a built in inductor, a proportioning valve from 0 to 6% and a shut off valve.
New Age

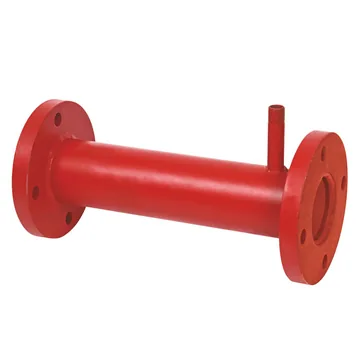

New Age Fixed Inline Foam Inductor
Inline foam inductor for fixed installations, inducting 3% to 6%, in carbon steel with anti corrosive coating or in stainless steel, in sizes 2 inch to 8 inch.
New Age

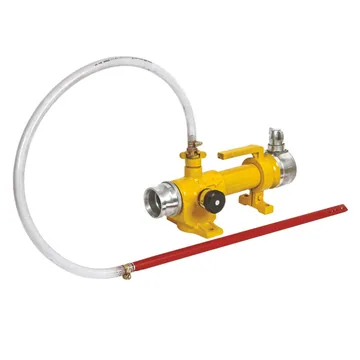

New Age Variable Inline Foam Inductor
Light, portable inline inductor with an adjustable induction rate from 0% to 6%, a non return valve on the foam inlet and a pick-up tube.
New Age

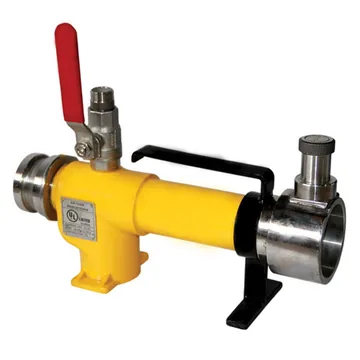

New Age UL Listed Inline Foam Inductor, Stainless Steel
UL Listed inline foam inductor in stainless steel 304, 316 or 316L, with a 3% or 6% induction rate and a pressure range of 80 psi to 200 psi.
New Age

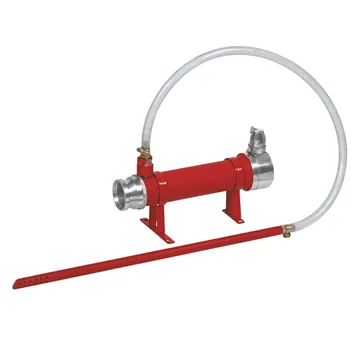

New Age Inline Foam Generator
A development of the inline inductor that inducts foam at 3% or 6% and also carries the foam a long distance, about 60 m, with BS instantaneous couplings.
New Age

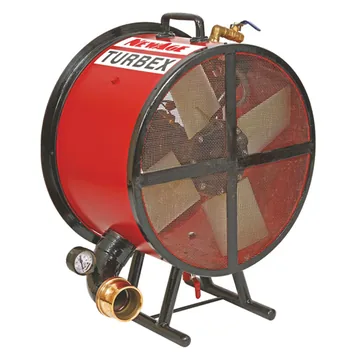

New Age Hi-Ex Mini Turbex High Expansion Foam Generator
Compact, lightweight high expansion foam generator driven by a pelton wheel turbine, for single handed use, supplied as a set with an inline inductor.
New Age

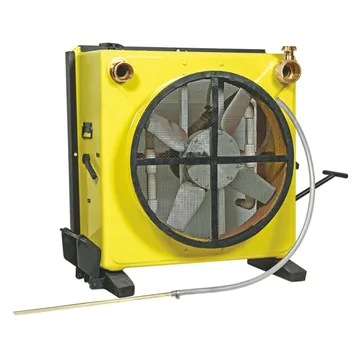

New Age Hi-Expansion Foam Generator MK2, Wheel Mounted
Wheel mounted high expansion foam generator with an FRP casing and a fan on the shaft of a water turbine, giving foam expansion of 1:400 to 1:1100.
New Age

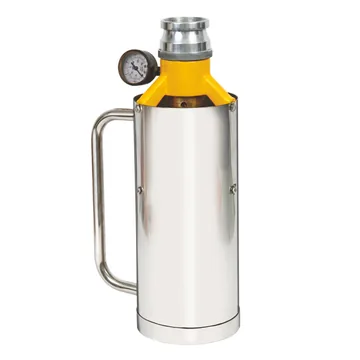

New Age Medium Expansion Foam Generator, Stainless Steel
Self aspirating stainless steel foam generator for fire protection and vapour suppression in bunded or dyked areas, in 225 LPM and 450 LPM capacities.
New Age

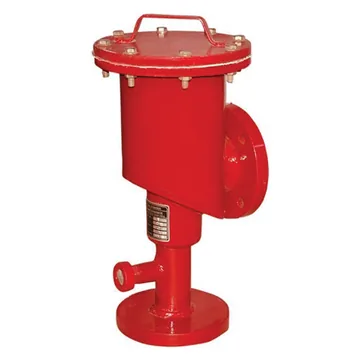

New Age Foam Maker with Vapour Seal Chamber, UL Listed
UL Listed foam maker for fixed roof tanks on low expansion foam systems, in five models from 75 LPM to 2700 LPM, in carbon steel or stainless steel.
New Age

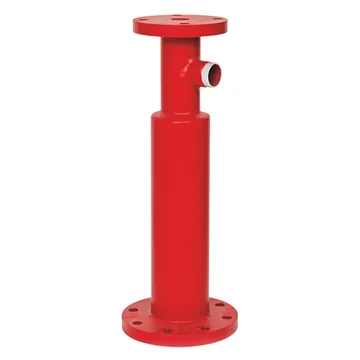

New Age Foam Maker without Vapour Seal Chamber, UL Listed
UL Listed foam maker for floating roof tanks on low expansion foam systems, in five models from 75 LPM to 2700 LPM, in carbon steel or stainless steel.
New Age

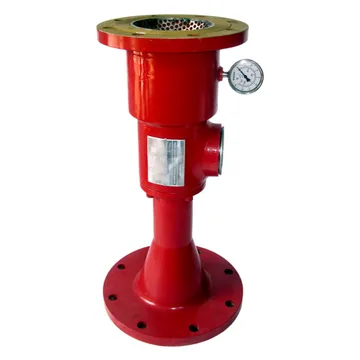

New Age High Back Pressure Foam Maker
Foam maker for subsurface injection of foam into liquid hydrocarbon storage tanks, able to discharge against a back pressure of up to 40% of its inlet pressure, custom designed to the flow.
New Age
New Age In-Line Balanced Pressure Proportioner, UL Listed
UL Listed in-line balanced pressure foam proportioner for fixed systems, sea water compatible, covering 110 LPM to 17500 LPM in sizes 50 NB to 200 NB.
New Age

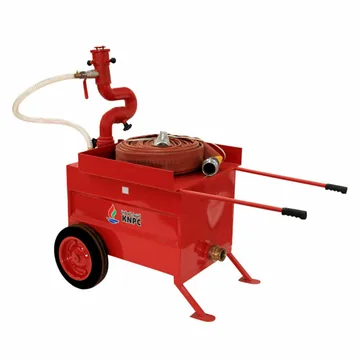

New Age Fast Attack Mobile Foam Unit with Monitor
Mobile foam cart with a stainless steel tank and a water foam monitor for 300 GPM at 100 psi, for narrow corridors and places fire vehicles cannot reach.
New Age

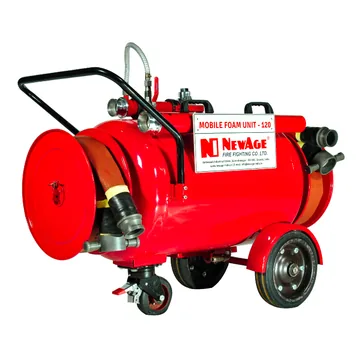

New Age Stainless Steel Tank Mobile Foam Unit
Mobile foam cart with a stainless steel tank for rugged and corrosive sites such as chemical plants, onshore platforms and jetties, in 100, 150 and 200 litre sizes.
New Age

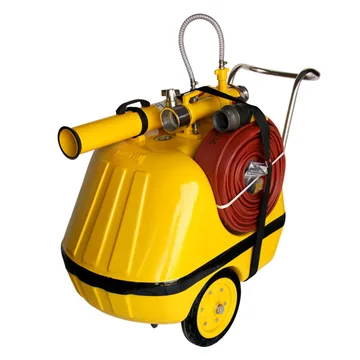

New Age FRP Tank Mobile Foam Unit
Lightweight mobile foam cart with a corrosion resistant FRP tank, for first aid and rapid deployment in high risk areas, in 100, 150 and 200 litre sizes.
How to choose
Start with how the concentrate is proportioned. Inline inductors draw concentrate into the water stream without a foam pump and suit fixed systems with a constant flow: HD Fire offers 65 to 150 mm units, and New Age fixed units in 2 to 8 inch, a UL Listed stainless steel unit and a portable unit adjustable from 0% to 6%. Bladder tanks hold concentrate in a rubber bladder that water pressure squeezes through a ratio controller, so they also need no foam pump; HD Fire tanks are made to ASME Code Section VIII Div I for 175 psi (12.1 bar) and come with multiple proportioners for several hazard zones, as a dual tank skid with a standby reserve, or with a pre-piped deluge valve. For large or varying flows, balanced pressure systems add a foam concentrate pump: HD Fire offers a UL Listed ILBP and a skid mounted system for 270 to 18500 lpm, and New Age a UL Listed, sea water compatible proportioner for 110 LPM to 17500 LPM.
For storage tanks, pick the discharge device by roof type. On fixed cone roof tanks, foam chambers and foam makers with a vapour seal lay foam onto the liquid surface: HD Fire foam chambers (Type II under NFPA 11) cover 100 to 1800 lpm, and New Age UL Listed foam makers with a vapour seal chamber cover 75 LPM to 2700 LPM in five models. On floating roof tanks, foam goes to the rim seal: HD Fire offers foam makers with foam pourers and a 65 NB rim seal pourer that shields the foam from wind, and New Age offers foam makers without a vapour seal chamber. For subsurface injection into hydrocarbon tanks, the New Age high back pressure foam maker discharges against a back pressure of up to 40% of its inlet pressure.
For spills, bunds, hand lines and overhead protection, choose by expansion ratio and delivery. New Age FB series low expansion branch pipes give ratios of 1:2 to 1:12 and come self inducting at a fixed 3% or 6% or for premix, and HD Fire BP225 and BP450 aluminium branch pipes are UL Listed and FM Approved. New Age medium expansion generators (225 or 450 LPM) give large volumes of free flowing foam for bunded or dyked areas, and its high expansion generators reach 1:200 to 1:350 (Mini Turbex) or 1:400 to 1:1100 (wheel mounted MK2). Foam-water sprinklers discharge foam from overhead and then water: the HD Fire nozzle has a K-factor of 2.95 for 2.1 to 4.2 bar, and the Tyco Model B-1 is a bronze K3.0 outlet, UL and ULC Listed.
Where fire vehicles cannot reach, a mobile foam unit gives a quick first attack. HD Fire MF-A (160 litres, fibreglass) and MF-S (stainless steel, up to 180 litres) carts run at 225 or 450 lpm with an FM Approved inductor and branch pipe, and HD Fire also offers a wheeled bladder tank unit with a 2.5 inch proportioner. New Age offers stainless steel or FRP tank carts in 100, 150 and 200 litres and a fast attack cart with a monitor for up to 300 GPM at 100 psi. Finally, check approvals model by model: HD Fire ties some listings to named foam concentrates, as on its IE225 and IE450 portable inductors, so FPS matches the concentrate to the listing on your system.
Frequently asked questions
What does a foam proportioner do?
It mixes foam concentrate into the water at the set percentage, such as 3% or 6%, so the foam maker, sprinkler or branch pipe receives the right foam solution. HD Fire ratio controllers change between 3% and 6% by changing the orifice.
Bladder tank or balanced pressure proportioner: which should I choose?
A bladder tank uses water pressure to push the concentrate out, so it needs no foam pump. A balanced pressure system uses a foam concentrate pump to keep the mix accurate over a wide range of flow and pressure; HD Fire lists 270 to 18500 lpm on its skid mounted system.
What is the difference between low, medium and high expansion foam?
The expansion ratio is how much foam is made from a given volume of foam solution. New Age lists 1:2 to 1:12 for its low expansion branch pipes and up to 1:1100 for its high expansion generator, with medium expansion generators used on bunded or dyked areas.
Which foam device protects a storage tank?
Fixed cone roof tanks use foam chambers or foam makers with a vapour seal that lay foam on the liquid surface, while floating roof tanks use foam makers and rim seal pourers that deliver foam to the seal area. New Age also offers a high back pressure foam maker for subsurface injection into hydrocarbon tanks.
Are these UL Listed or FM Approved?
Many are: HD Fire lists UL and FM on items such as its foam chambers, foam makers, branch pipes and ratio controllers, New Age lists UL on its foam makers, stainless steel inductor and balanced pressure proportioner, and the Tyco Model B-1 is UL and ULC Listed. Approvals are per model and some depend on the foam concentrate used, so FPS confirms them for your specification.
Does FPS supply foam equipment, and how do I get a price?
FPS supplies, installs and maintains foam proportioners, foam makers and mobile foam units from Tyco, HD Fire and New Age in Bhopal and across Madhya Pradesh. Prices are on request: call or WhatsApp +91 92440 89060 with your hazard, flow and foam concentrate details.
