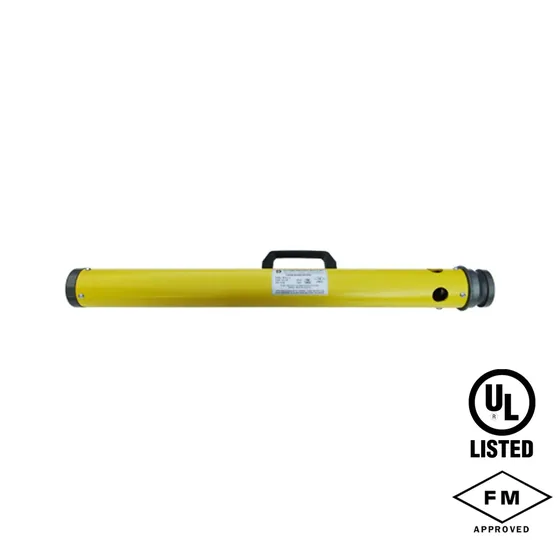

Dealer for HD FireA hand held foam branch pipe in aluminium, designed for long range performance, with a 2.5 inch male instantaneous coupling at the inlet. Models BP225 and BP450 are UL Listed and FM Approved.
Standards and approvals: UL Listed, FM Approved
Sizes: 60 NB
| Specification | 60 NB |
|---|---|
| Size | 60 NB with 2.5” Male Instantaneous Coupling at Inlet |
| Epoxy Painted | Yellow Finish |
| MODEL | BP225-4.2 BP450-4.2 BP225-7 BP450-7 |
| SIZE | 65 NB (2.5”) |
| WORKING PRESSURE | 4.2 kg/sq.cm (60 psi) & 7 kg/sq.cm (100 psi) |
| CONNECTION | 2.5 inch male instantaneous coupling at inlet (As per BS:336 and IS:903) |
| MATERIAL | Aluminium |
| WEIGHT | 3 kg |
| FINISH | Yellow Finish |
| APPROVAL | Refer Table-I |
| ORDERING INFORMATION | Specify Model No. |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
A Type II foam discharge device under NFPA 11 that lays low expansion foam directly onto the surface of a flammable or combustible liquid. It is used on vertical fixed cone roof tanks and is UL Listed and FM Approved.
Sizes: 50 & 65 NB ( 2” & 2.5” )
An air aspirating foam discharge device for floating roof flammable liquid storage tanks, which NFPA 11 defines as a Type II outlet delivering low expansion aspirated foam to the seal. It is also used for diked storage and spill areas.
Foam pourers that work with HD foam makers to deliver foam onto the protected surface, offered in 50, 65 and 80 NB (2, 2.5 and 3 inch) sizes with a choice of pourer types.
Sizes: 1/2″ BSPT / NPT
Open, air aspirating foam-water nozzles for NFPA 16 and NFPA 11 foam-water sprinkler systems that discharge foam from overhead and then water in a spray pattern like a standard sprinkler. The pendent model is UL Listed and FM Approved and the upright model is UL Listed.
Sizes: 65 NB
A foam pourer that discharges fully aspirated foam into the annular seal area of floating roof storage tanks, for fire or vapour suppression. Its design shields the foam from wind so it runs gently onto the seal, and it is UL Listed and FM Approved.
An air aspirating foam discharge outlet for foam-water deluge systems, in upright and pendent versions.
Low expansion foam branch pipes that draw in foam concentrate themselves at a fixed 3% or 6% through a pick-up tube, in aluminium or stainless steel, straight or dome pattern.
Standard low expansion foam branch pipes without built in induction, for use with premix foam solution, in aluminium or stainless steel.
